72 & 84 Inch Skid Steer Root Rake Grapple | Extreme Duty Twin 3000 PSI Cylinder Attachment

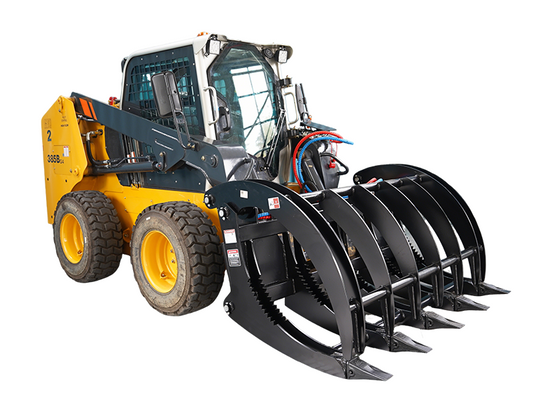

LANDYINDUS Extreme Duty Skid Steer Root Rake Grapple – 72" & 84" Twin 3000 PSI Cylinder

Tackle the toughest land clearing, forestry, and debris management jobs with the LANDY Extreme Duty Skid Steer Root Rake Grapple. Available in 72" (1830mm) and 84" (2130mm) widths with safe working loads of 1,590 kg and 1,815 kg respectively, this heavy-duty grapple rake gives operators the reach and clamping force to pick up, push, and sort rocks, logs, brush, stumps, and irregularly shaped debris that standard buckets cannot handle.

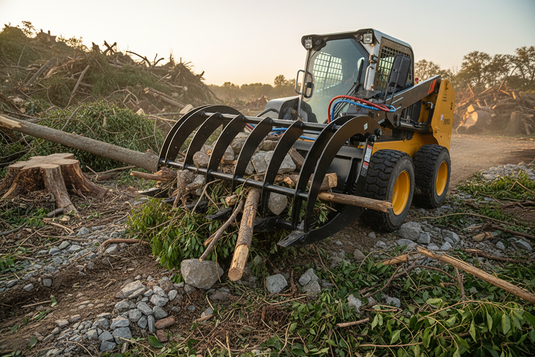

Ideal for construction site clearing, storm debris management, forestry operations, and land reclamation projects.

Key Features

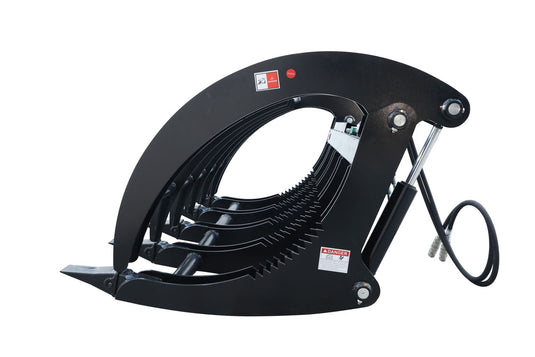

• Twin 3,000 PSI Hydraulic Cylinders: Powerful, consistent clamping force across a 490–1,270mm opening range — grips everything from small brush bundles to large logs and boulders

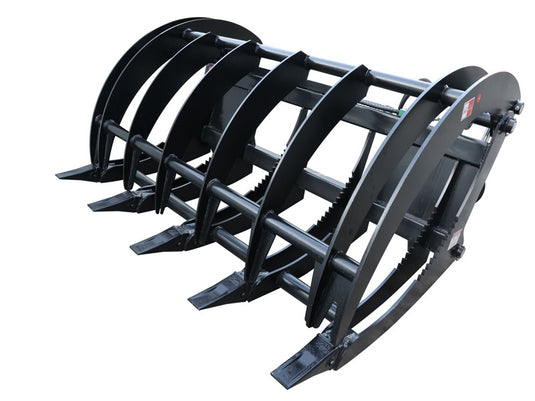

• 900mm Replaceable Cast Bucket Teeth (12mm thick): Penetrates and grips root systems and compacted debris with precision; independently replaceable to reduce maintenance costs
• Extra-Wide Rake-Style Jaw: Maximises material contact and prevents load slippage during transport
• Greasable Pins & Bushings: Extended service life at all pivot points for sustained heavy-duty work cycles
• Hoses & Flat-Face Couplers Included: Clean, leak-free hydraulic connection straight out of the box

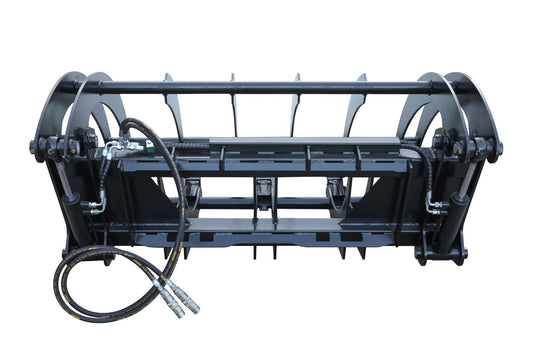

• Universal Skid Steer & CTL Compatible: MP1140 quick hitch mount fits most standard skid steer loaders and compact track loaders

Available Models

• 72" — S-ERGR1830(72IN)-MP1140: 1830×1361×969mm | SWL 1,590 kg | 510 kg
• 84" — S-ERGR2130(84IN)-MP1140: 2130×1361×969mm | SWL 1,815 kg | 573 kg

Technical Specifications

• Teeth Length: 900 mm
• Teeth Thickness: 12 mm
• Opening Range: 490–1,270 mm
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Cylinder Rating: Twin 3,000 PSI
• Mount Type: MP1140 Universal Skid Steer Quick Hitch

Ideal For

• Land clearing & forestry contractors
• Storm debris & disaster recovery operations
• Construction site preparation
• Agricultural land reclamation
• Equipment hire companies with mixed skid steer fleets

Technical Drawing:

Contact LANDY for volume pricing, OEM inquiries, or compatibility checks with your skid steer model.
