Bulk Bag Lifter 2000kg FIBC Lifting Frame | Rotating Swivel Eye Overhead Crane Attachment

LANDYINDUS Bulk Bag Lifter 2000kg FIBC Lifting Frame – Rotating Swivel Eye Overhead Crane Attachment

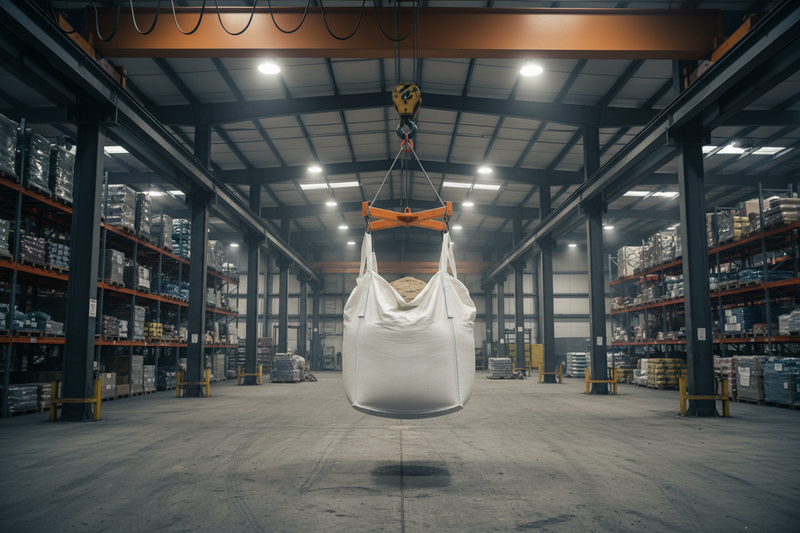

Safe, efficient lifting of bulk bags, jumbo bags, and large sacked materials. The LANDYINDUS WS-BBF4 Bulk Bag Lifter is a heavy-duty FIBC lifting frame rated to 2000kg SWL, designed for use with overhead cranes, gantry cranes, and telehandlers across construction, agricultural, and industrial environments.

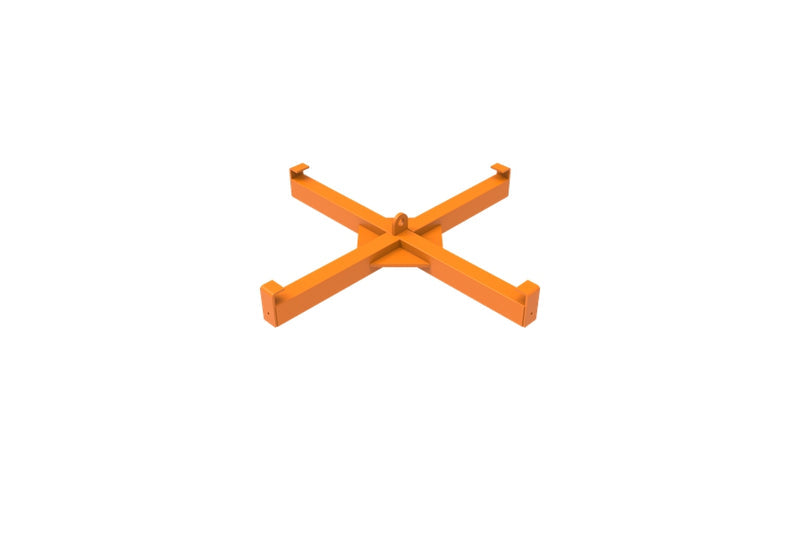

Frame size: 1420 × 1420mm. Frame height: 160mm. Weight: 45kg.

Key Features

• 2000kg Safe Working Load: Heavy-duty steel construction rated for sand, aggregates, cement, grain, chemicals, and other bulk materials in demanding daily use
• 360° Rotating Swivel Lifting Eye: Hook connection from any angle without manual frame alignment — once loaded, the swivel allows free rotation to prevent sling twist and enable precise load positioning during placement
• 1420 × 1420mm Square Frame: Engineered to accommodate standard FIBC bulk bags — stable, evenly distributed lift that prevents bag distortion and minimizes load shifting during transit
• 160mm Compact Frame Height: Minimizes overall lifting height for maximum usable hook height in low-clearance environments
• 45kg Lightweight Construction: Easy manual handling and repositioning between lifts without sacrificing structural durability
• Multi-Equipment Compatible: Overhead cranes, gantry cranes, and telehandlers

Technical Specifications

• Model: WS-BBF4
• Safe Working Load: 2000 kg (2 Ton)
• Frame Dimensions (L×W×H): 1420 × 1420 × 160 mm
• Swivel Eye Rotation: 360°
• Weight: 45 kg

Ideal For

• Construction sites — sand, aggregates & cement bulk bag lifting
• Agricultural operations — grain & fertiliser jumbo bag handling
• Industrial facilities — chemical & bulk material FIBC lifting
• Low-clearance environments requiring minimal hook height loss

Contact LANDYINDUS for volume pricing, OEM inquiries, or custom SWL and frame size requirements.
