Hydraulic Angle Broom Sweeper Dual Motor | 30 Degree Rotation Road Cleanup Tractor Attachment

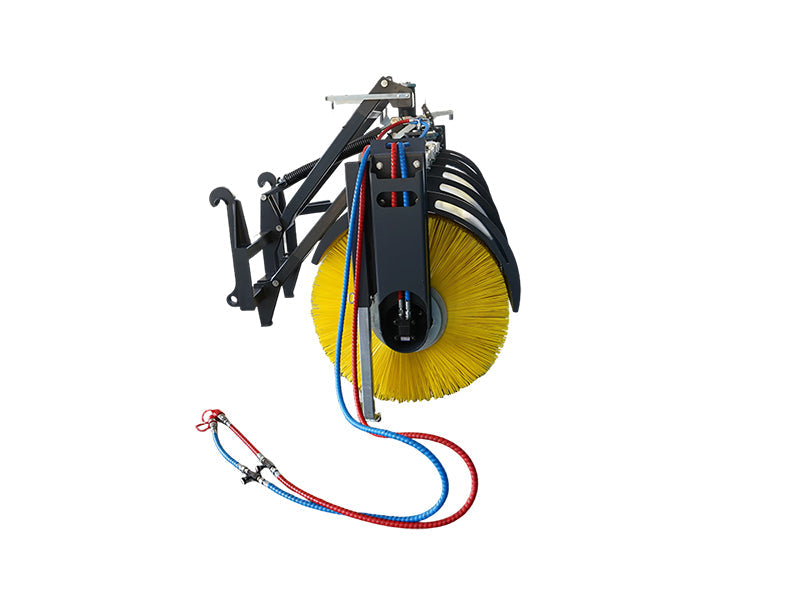

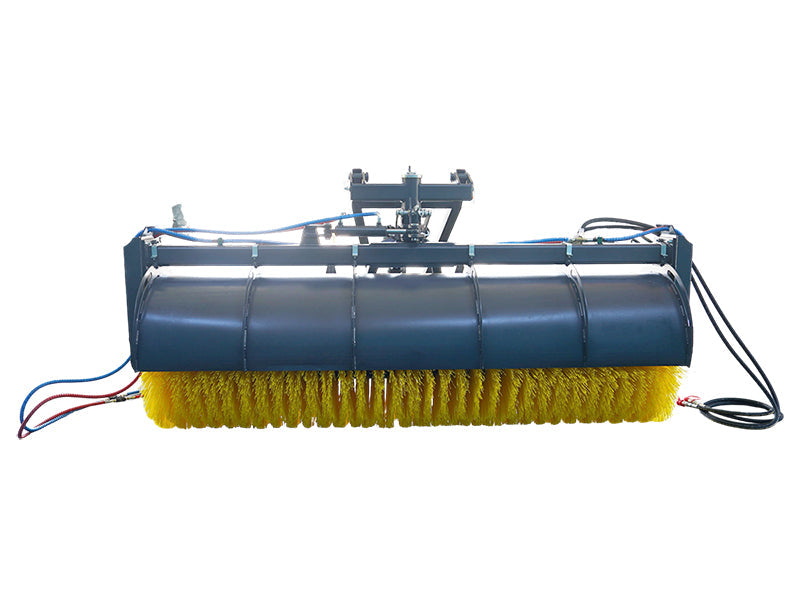

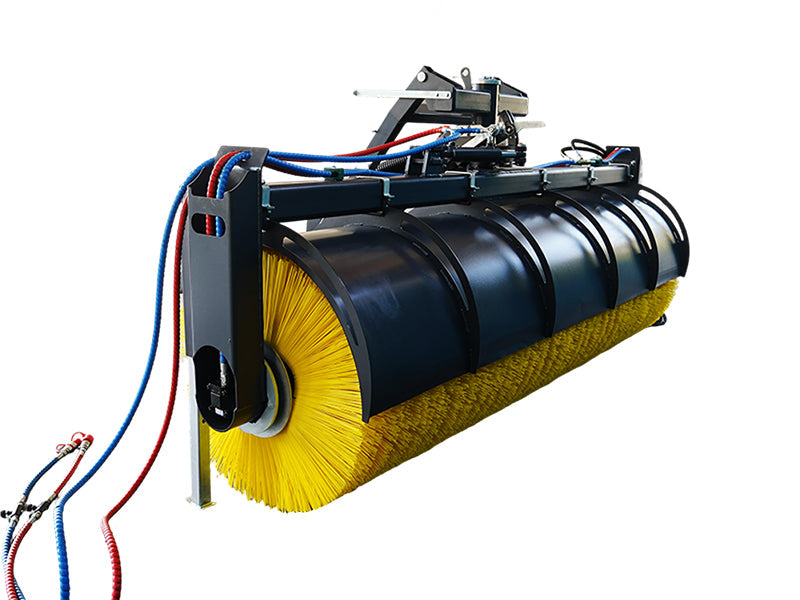

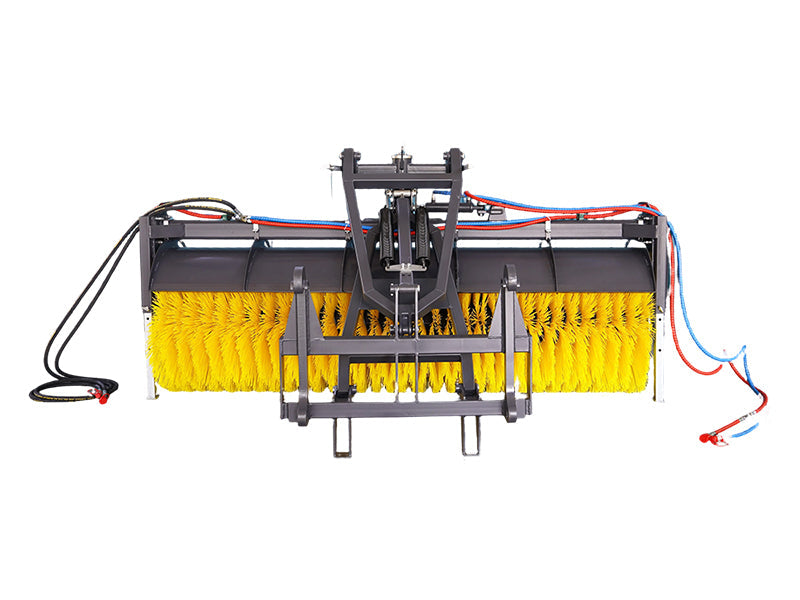

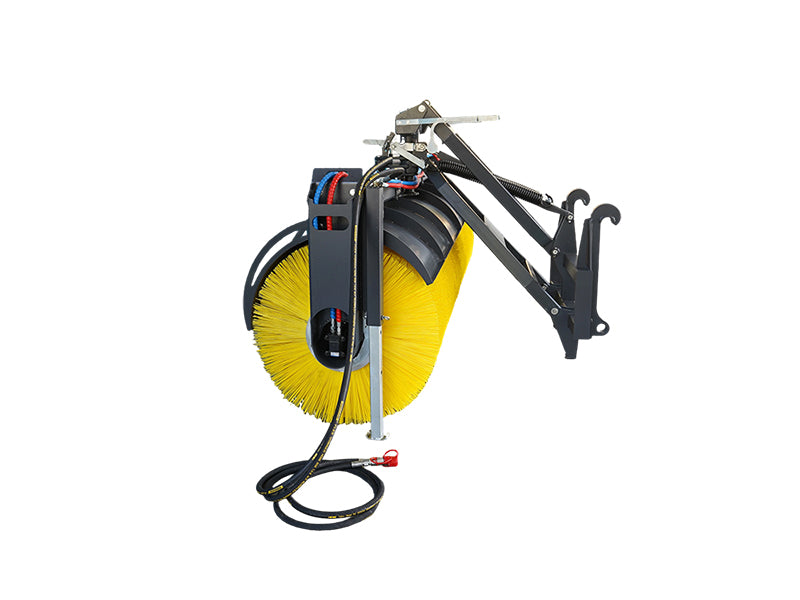

LANDYINDUS Hydraulic Angle Broom Sweeper Dual Motor – 30 Degree Rotation Road Cleanup Tractor Attachment

Professional-grade road cleanup, construction site clearing, and large-area sweeping in a single pass. The LANDYINDUS T-AS3000 Hydraulic Angle Broom Sweeper features dual direct-acting hydraulic motors for significantly greater torque and sweeping power than single-motor alternatives — delivering consistent, high-performance cleaning results on heavy gravel, compacted debris, and wet material on demanding job sites.

Sweeping width: 3040mm (120"). Brush assembly: 67 brushes, 900mm diameter. Attachment: BIG BM.

Key Features

• Dual Direct-Acting Hydraulic Motors: Significantly greater torque and sweeping power than single-motor alternatives — consistent performance on heavy gravel, compacted debris, and wet material
• 30° Hydraulic Rotation: Sweeper head rotates hydraulically up to 30 degrees, directing debris precisely to the side of the travel path in a single continuous pass — no stopping or repositioning required
• Self-Adjusting Suspension System: Broom head automatically adapts to uneven ground and road profile changes in real time — consistent brush-to-ground contact, minimized brush wear, extended service life
• 67-Brush Assembly, 900mm Diameter: Dense, even coverage across the full 3040mm working width for thorough surface cleaning on every pass
• 48° Lifting Angle: Wide lifting range for flexible positioning and transport
• Heavy-Duty Construction: 727kg robust frame engineered for large-scale sweeping tasks where coverage, power, and durability are non-negotiable

Technical Specifications

• Model: T-AS3000-BIG BM
• Sweeping Width: 3040 mm (120")
• Overall Dimensions (L×W×H): 3323 × 1818 × 1590 mm
• Brush Diameter: 900 mm | Brush Qty: 67
• Hydraulic Rotation: 30°
• Lifting Angle: 48°
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Attachment: BIG BM
• Weight: 727 kg

Ideal For

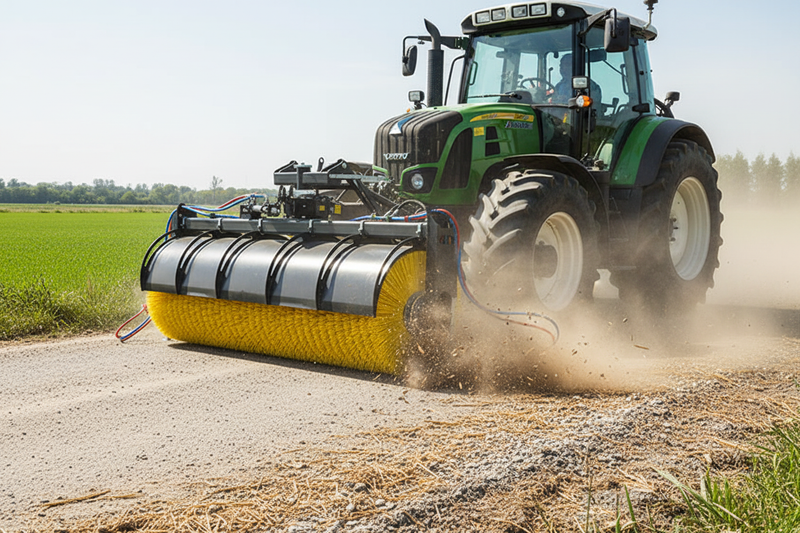

• Highway & road construction site cleanup
• Large commercial parking lot & logistics yard sweeping
• Agricultural estate & farm lane maintenance
• Municipal road maintenance & post-construction clearing

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks for your specific tractor or loader model.
