Hydraulic Bale Clamp Forklift Attachment | Paper & Cotton Bale Handler Class 3A 3-3.5 Ton

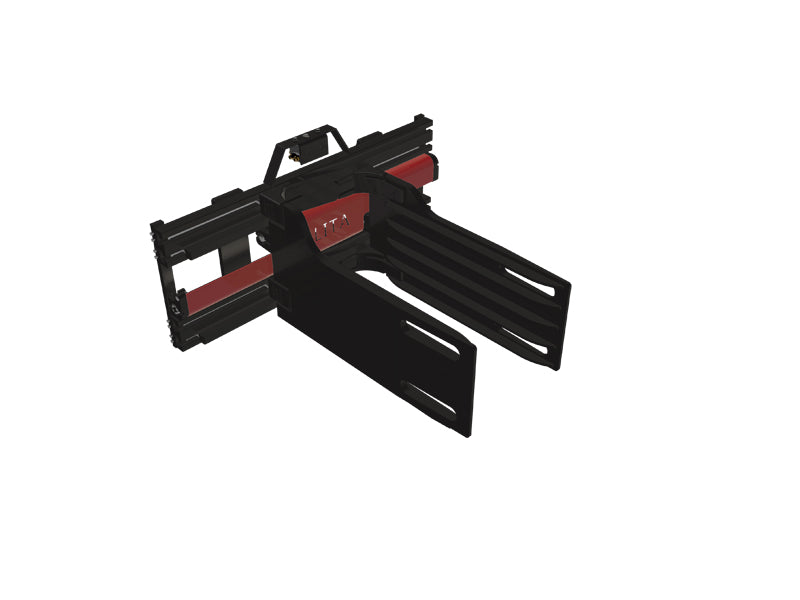

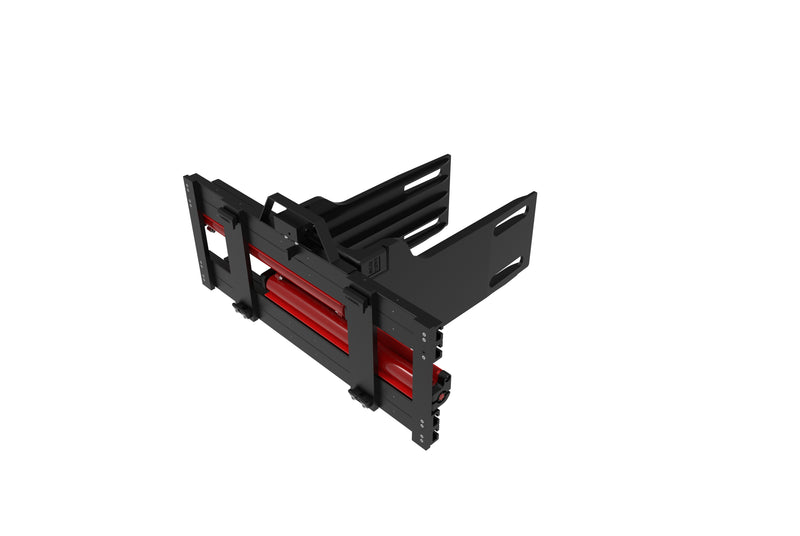

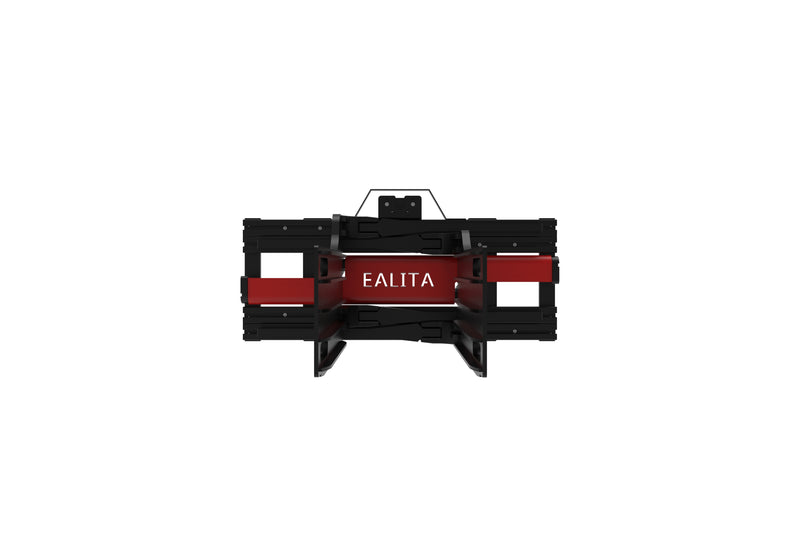

LANDYINDUS Hydraulic Bale Clamp Forklift Attachment – Paper & Cotton Bale Handler Class 3A 3-3.5 Ton

Efficient, damage-free handling of soft-packaged materials for industrial operations. The LANDYINDUS F-BC(RT)3A30S Hydraulic Bale Clamp is purpose-built for waste paper bales, cotton bales, wool bales, and chemical fiber bags — ideal for recycling centers, paper mills, warehouses, and logistics facilities.

Built to Class 3A standards for 3–3.5T forklifts. Opening range: 490–2300mm. Integrated side shift included as standard.

Key Features

• 490–2300mm Wide Opening Range: Accommodates waste paper, cotton, wool, and chemical fiber bales of various sizes in a single attachment
• Integrated Side Shift: Precise load positioning without repositioning the forklift — standard on this model for maximum operational flexibility
• Slim Arm Profile & Optimized Structure: Excellent operator visibility, minimal load loss, and superior clamping force while keeping overall weight low
• Class 3A Compatible: Built for 3–3.5T forklifts — requires 2 additional hydraulic oil circuits
• 715kg Robust Construction: Engineered for the repetitive clamping cycles and high-throughput demands of industrial bagged goods handling
• Custom Sizes Available: Contact LANDYINDUS for non-standard bale dimensions or special application requirements
• Note: Confirm actual load capacity with your forklift manufacturer prior to use

Technical Specifications

• Model: F-BC(RT)3A30S-490/2300
• Forklift Class: Class 3A
• Side Shift: Yes (integrated)
• Overall Dimensions (W×D×H): 1599 × 1368 × 804 mm
• Opening Range: 490–2300 mm
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 715 kg
• Suitable Forklift: 3–3.5 Ton
• Hydraulic Circuits Required: 2 additional circuits

Ideal For

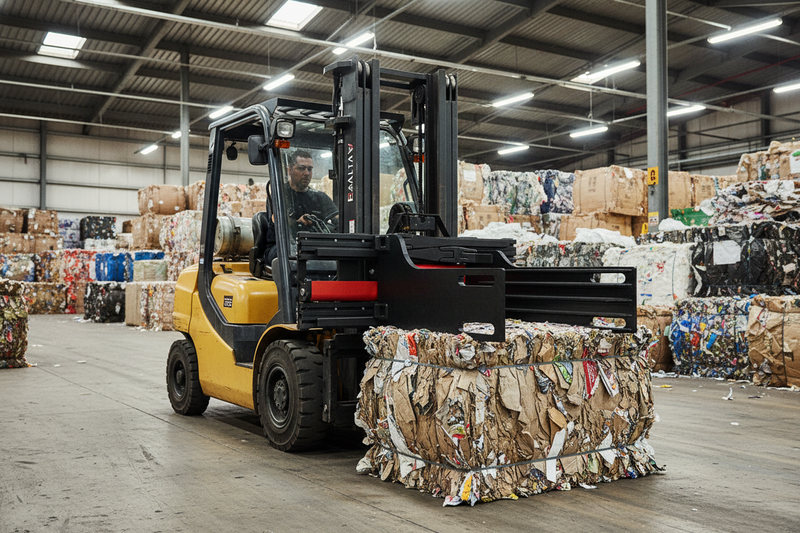

• Recycling centers — waste paper & cardboard bale handling
• Paper mills — pulp bale and raw material management
• Textile & cotton facilities — cotton, wool & fiber bag handling
• Warehouses & logistics — soft-packaged bulk material movemen

Contact LANDYINDUS for custom sizes, volume pricing, OEM inquiries, or compatibility checks for your specific forklift model.
