Hydraulic Bale Clamp Forklift Attachment | Waste Paper & Cotton Bag Handler 2-3.5 Ton

LANDYINDUS Hydraulic Bale Clamp Forklift Attachment – Waste Paper & Cotton Bag Handler 2-3.5 Ton

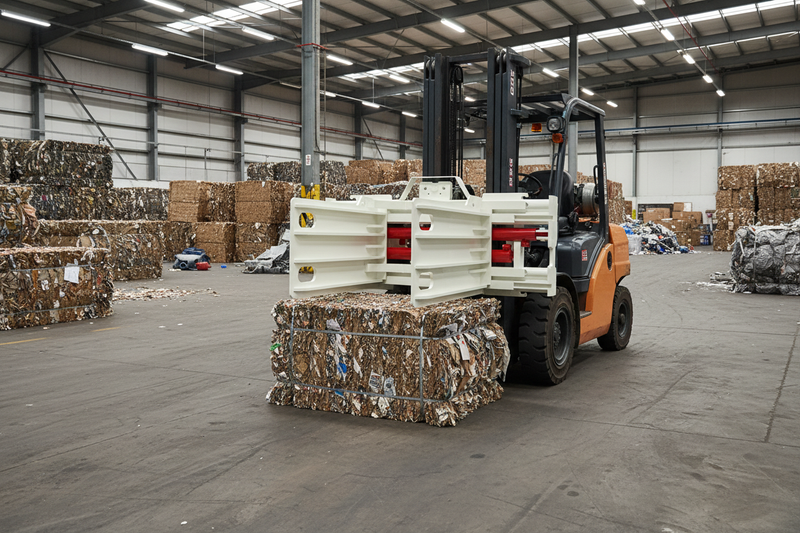

Efficient, damage-free handling of soft-packaged materials at scale. The LANDYINDUS Hydraulic Bale Clamp Forklift Attachment is purpose-built for waste paper bales, cotton bales, wool bales, and chemical fiber bags — ideal for recycling centers, paper mills, warehouses, and logistics facilities.

Available in Class 2A (2–2.5T) and Class 3A (3–3.5T) configurations, with or without side shift. Opening range: 580–2300mm. Custom sizes available on request.

Key Features

• 580–2300mm Wide Opening Range: Accommodates a wide variety of bale sizes — waste paper, cotton, wool, and chemical fiber bags in a single attachment
• Slim Arm Profile & Optimized Structure: Excellent operator visibility, minimal load loss, and superior clamping force while keeping overall attachment weight low
• Side Shift Option: Enhanced load positioning flexibility without repositioning the forklift — available on 2A-S and 3A-S models
• Class 2A & 3A Configurations: Covers 2–2.5T and 3–3.5T forklifts — select the correct class for your machine’s rated capacity
• Custom Sizes Available: Contact LANDYINDUS for non-standard bale dimensions or special application requirements
• Note: Requires 2 additional hydraulic oil circuits on the forklift. Confirm actual load capacity with your forklift manufacturer prior to use.

Available Models

• F-BC(CT)2A20-490/2300: Class 2A | No Side Shift | 1610×1374×755mm | 580–2300mm | 660kg | 2–2.5T
• F-BC(CT)2A20S-490/2300: Class 2A | With Side Shift | 1610×1374×755mm | 580–2300mm | 660kg | 2–2.5T
• F-BC(CT)3A30-490/2300: Class 3A | No Side Shift | 1610×1374×755mm | 580–2300mm | 660kg | 3–3.5T
• F-BC(CT)3A30S-490/2300: Class 3A | With Side Shift | 1610×1374×755mm | 580–2300mm | 660kg | 3–3.5T

Technical Specifications

• Opening Range: 580–2300 mm
• Overall Dimensions (W×D×H): 1610 × 1374 × 755 mm (all models)
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 660 kg (all models)
• Forklift Class: 2A (2–2.5T) / 3A (3–3.5T)
• Hydraulic Circuits Required: 2 additional circuits

Ideal For

• Recycling centers — waste paper & cardboard bale handling
• Paper mills — pulp bale and raw material management
• Textile & cotton facilities — cotton, wool & fiber bag handling
• Warehouses & logistics — soft-packaged bulk material movement

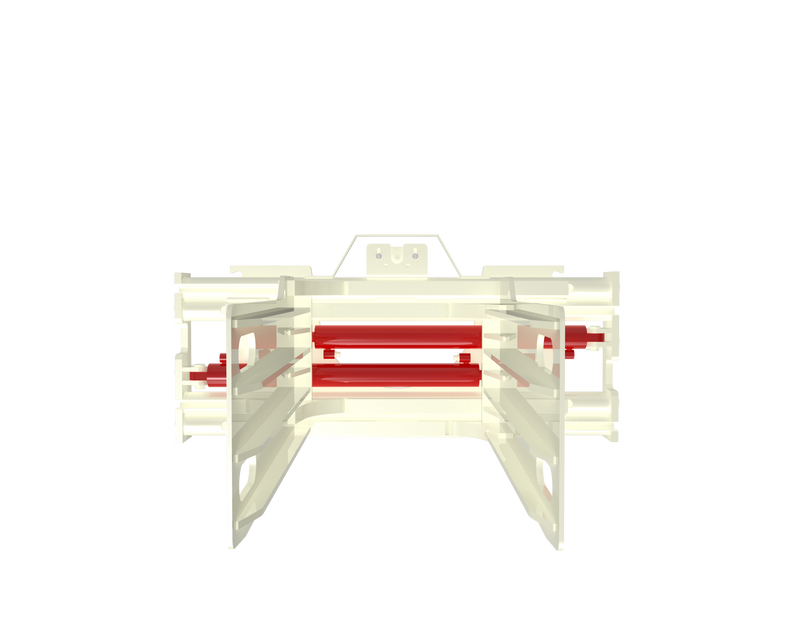

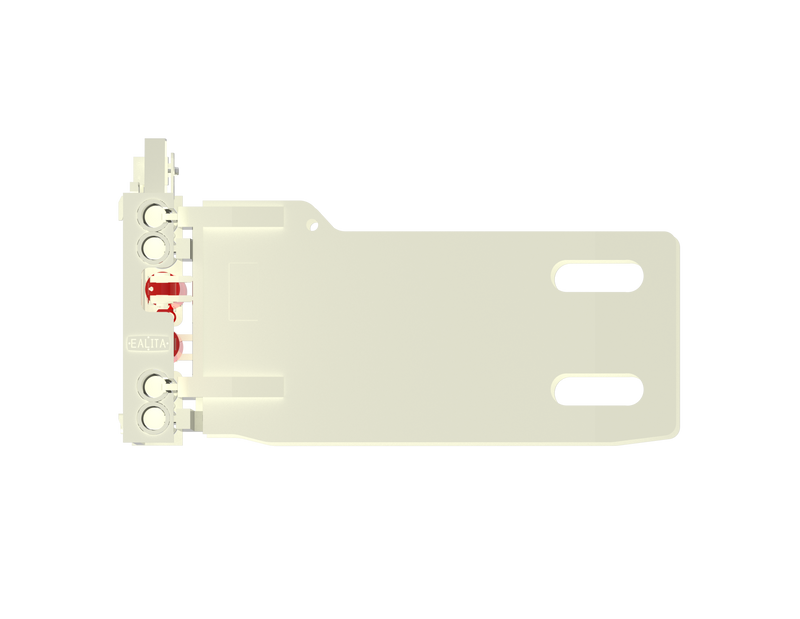

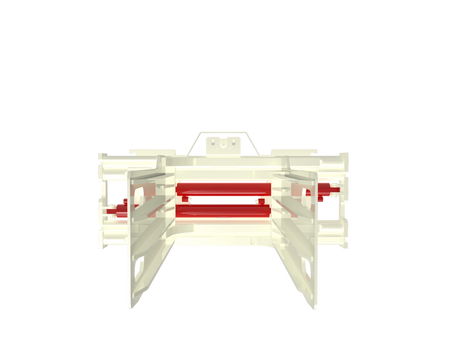

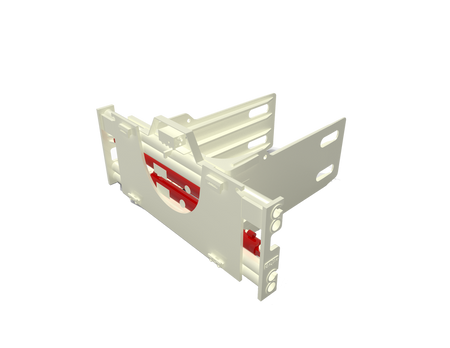

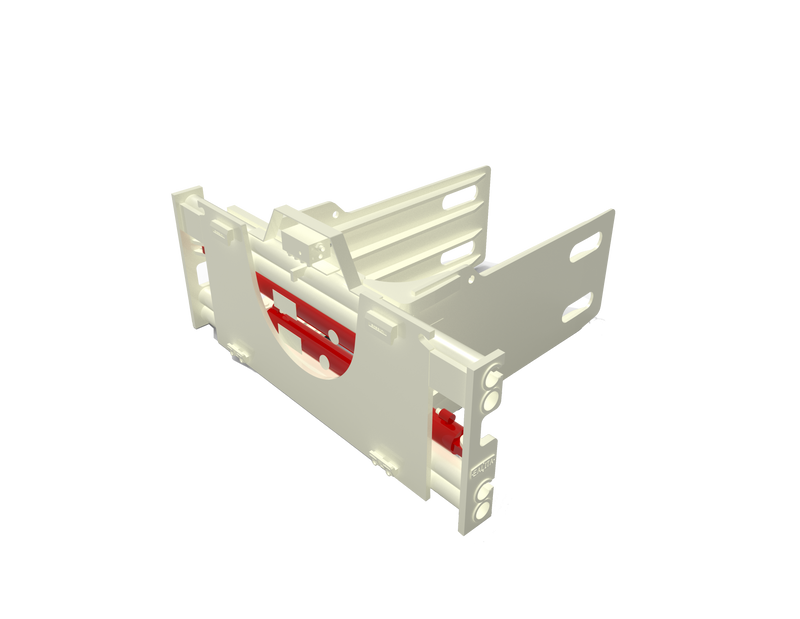

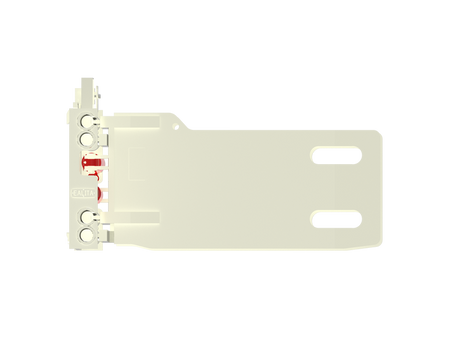

Technical Drawing:

Contact LANDYINDUS for custom sizes, volume pricing, OEM inquiries, or compatibility checks for your specific forklift model.
