Hydraulic Bale Grab Euro Hitch Front Loader | 2000kg Heavy Duty Round Square Bale Handler

SKU: T-RBG170-EURO
Get a Quote

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +(1) 657-271-9801

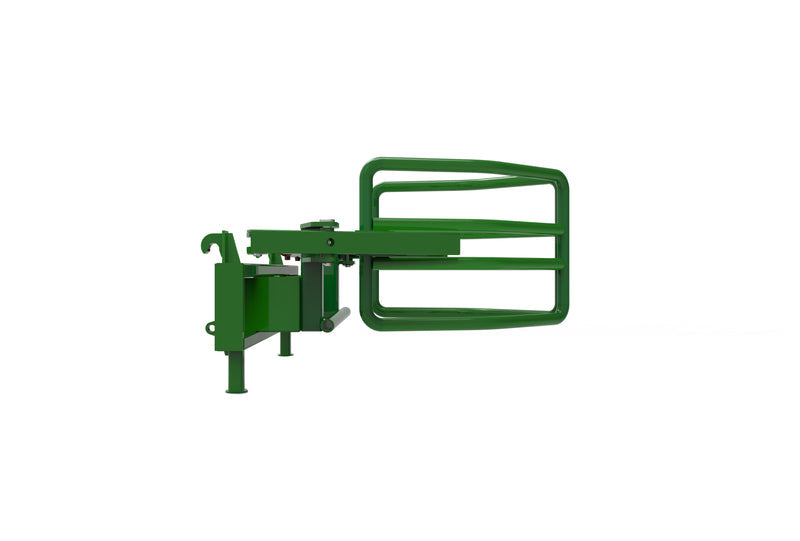

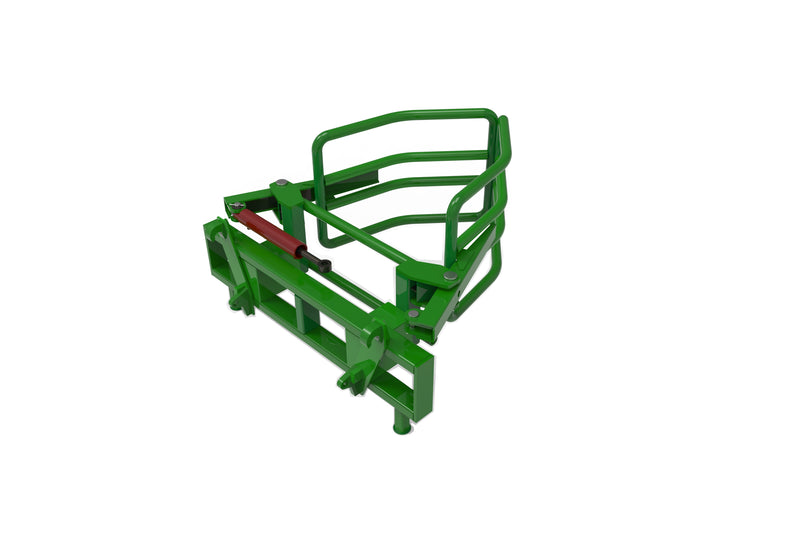

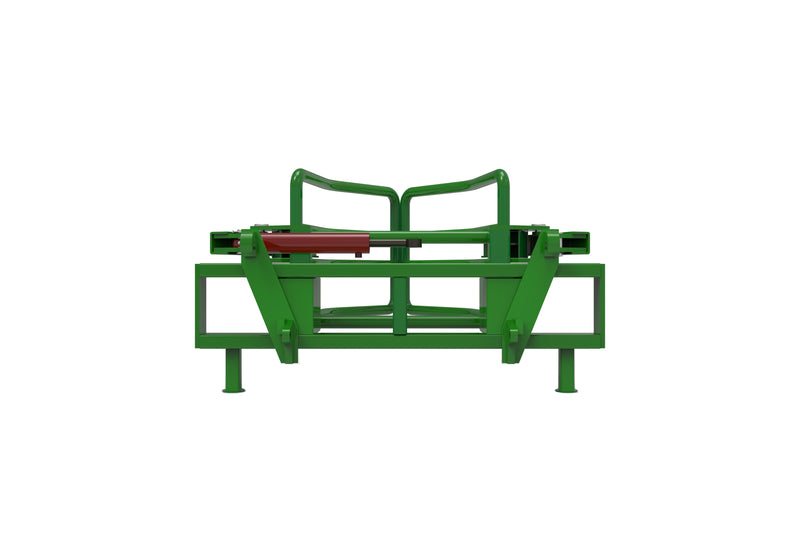

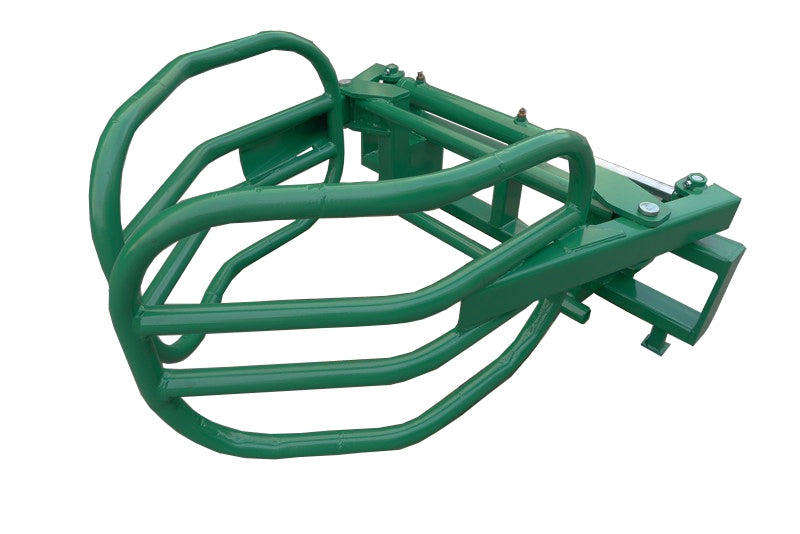

LANDYINDUS Hydraulic Bale Grab Euro Hitch Front Loader – 2000kg Heavy Duty Round & Square Bale Handler

Move round bales, square bales, and silage bales with confidence. The LANDYINDUS Hydraulic Bale Grab with Euro Hitch delivers a 2000kg safe working load and a 700–1800mm opening range — handling the full range of standard agricultural bale sizes on your front-end loader without modification.

Available in Euro hitch and SMS hitch configurations to suit most front-end loader setups straight out of the box.

Key Features

  • 2000kg Safe Working Load: Heavy-duty steel frame construction maintains structural integrity under maximum load for confident, high-capacity bale handling
  • 700–1800mm Opening Range: Handles small square bales through to the largest round and silage bales without manual adjustment
  • Euro Hitch Standard Fitment: Connects directly to most front-end loaders without modification; SMS hitch variant also available with custom bracket welding option for alternative loader configurations
  • Greaseable Pivot Pins & Bronze Bushes: Maintenance-friendly design on arm pivot pins and hydraulic ram ends — extends service life and reduces downtime season after season
  • Smooth Hydraulic Clamping: 16 MPa / 60 LPM — responsive, consistent clamping force for secure bale pickup and transport

Available Models

  • T-RBG170-EURO: 1430×1460×860mm | Euro Hitch | SWL 2000kg | 236 kg
  • T-RBG170-SMS-C: 1430×1490×860mm | SMS Hitch | SWL 2000kg | 234 kg

Technical Specifications

  • Safe Working Load: 2000 kg
  • Opening Range: 700–1800 mm
  • Operating Pressure: 16 MPa
  • Hydraulic Flow: 60 LPM
  • Hitch Options: Euro / SMS
  • Weight: 234–236 kg

Ideal For

  • Dairy farms & beef operations — round and square bale handling
  • Silage contractors — wrapped bale transport and stacking
  • Hay producers — high-volume seasonal bale moving
  • Front-end loader operators needing Euro or SMS hitch compatibility

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or hitch compatibility checks for your specific loader model.
