Hydraulic Bale Lifter 3 Point Hitch Tractor Attachment | 2000kg Heavy Duty Round Square Bale Handler

SKU: T-HTBH(2500*850-1200)-3Point-SMS
Get a Quote

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +(1) 657-271-9801

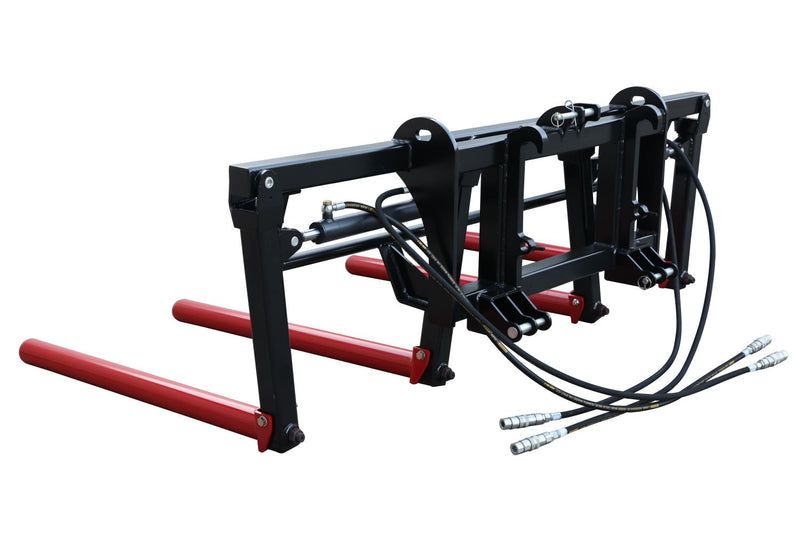

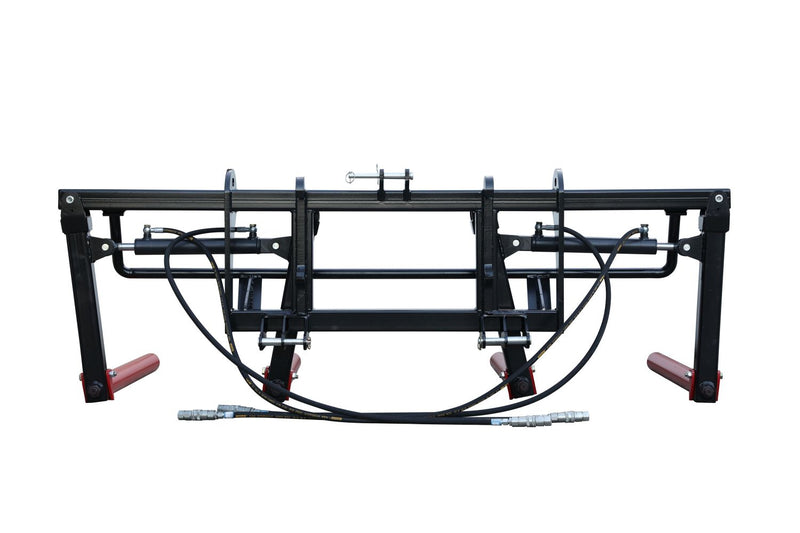

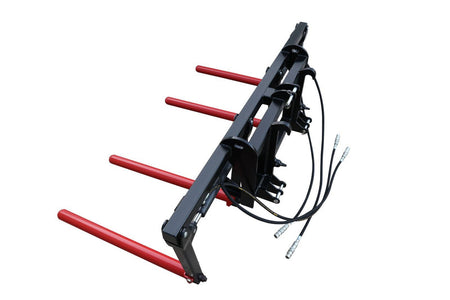

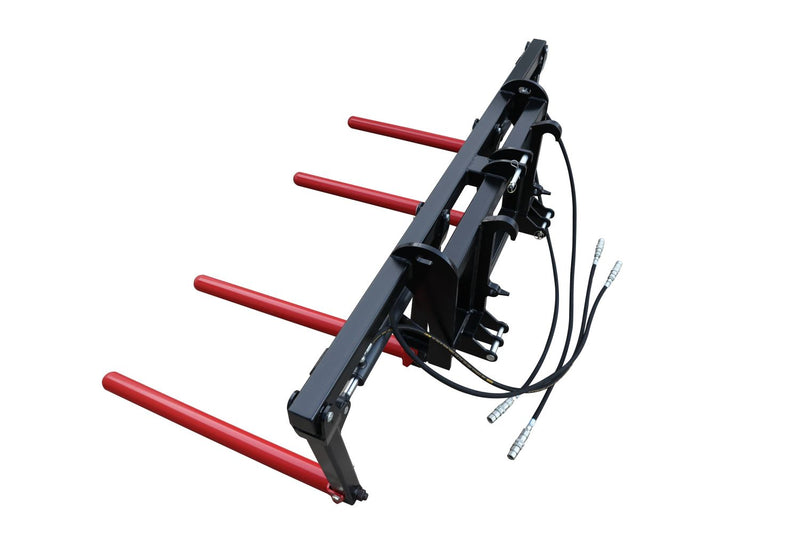

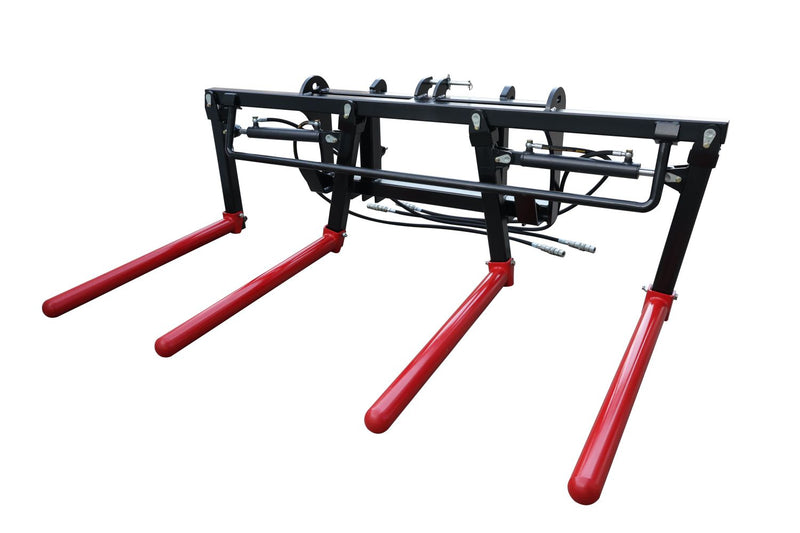

LANDYINDUS Hydraulic Bale Lifter 3 Point Hitch Tractor Attachment – 2000kg Heavy Duty Round & Square Bale Handler

Move, stack, and position round bales, hay bales, and wrapped silage with precision — without risking damage to the bale wrap or your equipment. The LANDYINDUS T-HTBH Hydraulic Bale Lifter is a heavy-duty Cat 2 / SMS 3-point hitch tractor attachment rated to a 2000kg safe working load, engineered for the repetitive demands of daily farm and hay contracting operations.

Key Features

  • Precision Steel Roller Tubes: Distribute lifting pressure evenly across the full bale surface — protects silage wrap integrity and eliminates puncture risk, reducing product loss on wrapped bales destined for winter feed
  • 450–1800mm Hydraulic Opening Range: Accommodates a wide range of round bale diameters in a single attachment — no equipment swaps between jobs
  • 2000kg Safe Working Load: Rated for the heaviest round bales in hay, straw, and silage operations
  • Cat 2 & SMS 3-Point Hitch Compatible: Fits a broad range of mid-to-large tractors without custom adapters or modifications
  • Smooth Hydraulic Arm Control: 16 MPa / 60 LPM — responsive arm movement under full load for precise bale positioning and stacking
  • Heavy-Duty Steel Frame: 352kg robust construction designed for the repetitive stress of daily farm use, stable and balanced on the tractor’s rear linkage

Technical Specifications

  • Model: T-HTBH(2500×850-1200)-3Point-SMS
  • Safe Working Load: 2000 kg
  • Overall Dimensions (L×W×H): 1600 × 2550 × 880 mm
  • Opening Range: 450–1800 mm
  • Operating Pressure: 16 MPa
  • Hydraulic Flow: 60 LPM
  • Attachment: Cat 2 / SMS 3-Point Hitch
  • Weight: 352 kg

Ideal For

  • Silage & wrapped round bale handling — zero puncture, zero wrap damage
  • Hay & straw bale moving and stacking on farms of all sizes
  • Large-scale hay contracting operations requiring high SWL capacity
  • Tractor operators with Cat 2 or SMS 3-point hitch systems

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks for your specific tractor model.
