Hydraulic Box Broom Skid Steer 72 & 83 Inch | Bidirectional Side Brush Dust Control Quick Attach

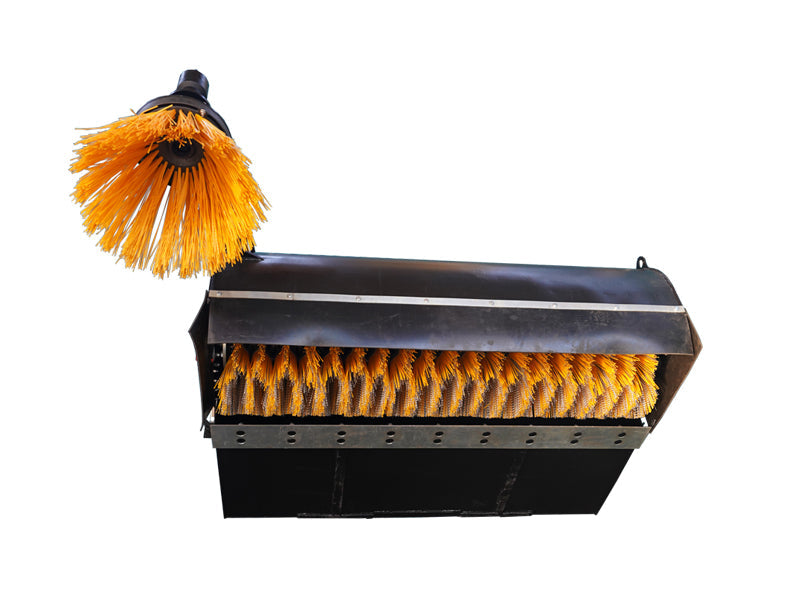

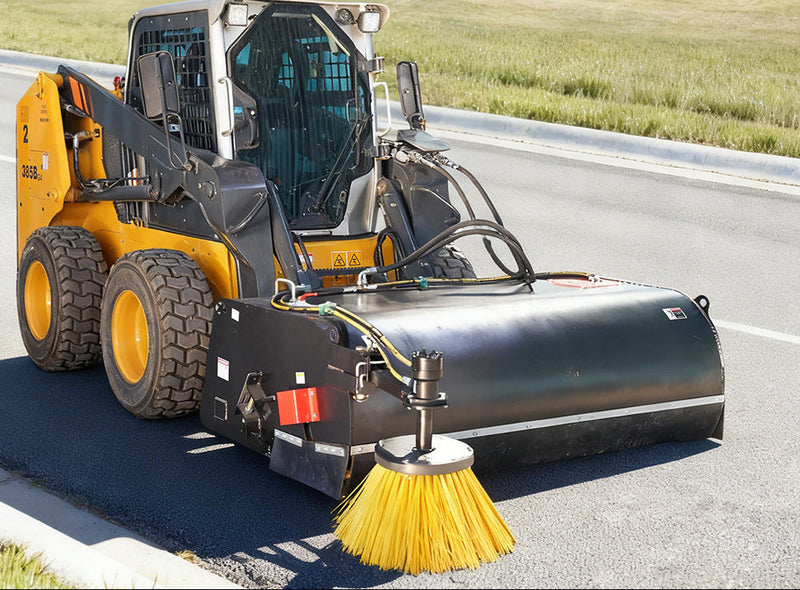

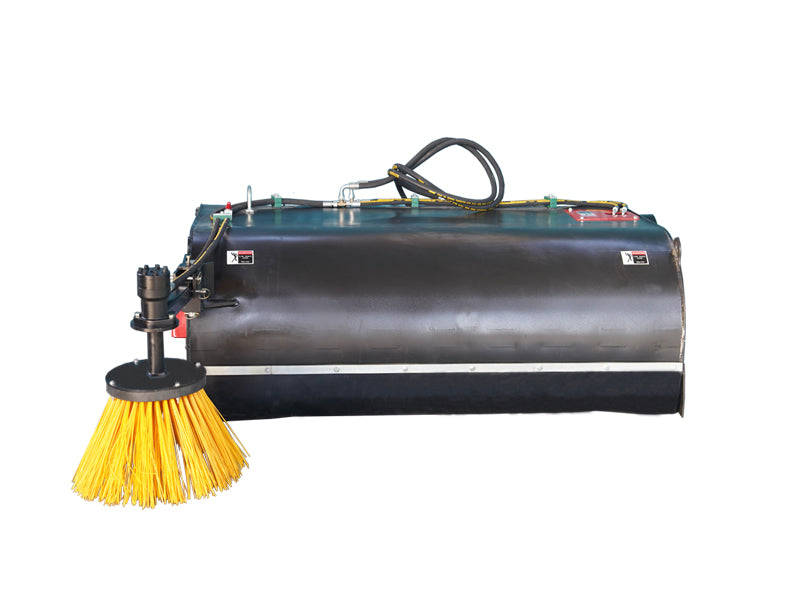

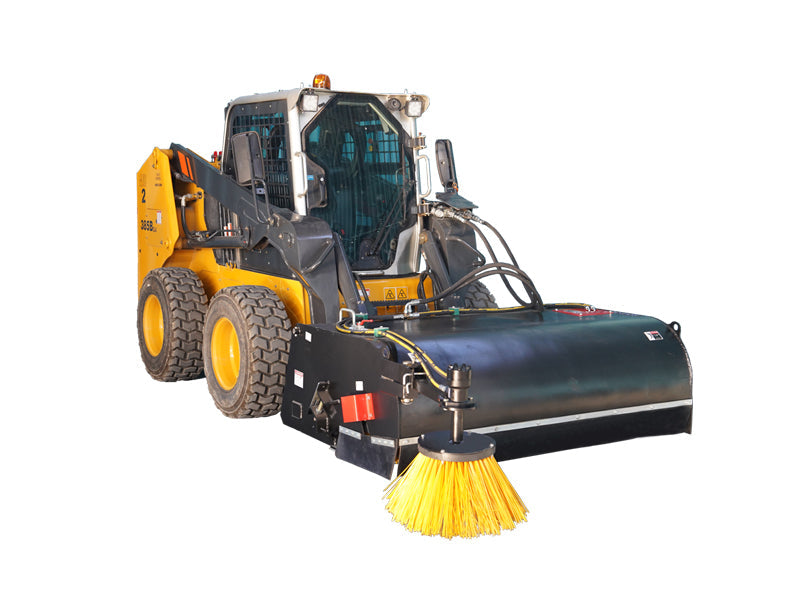

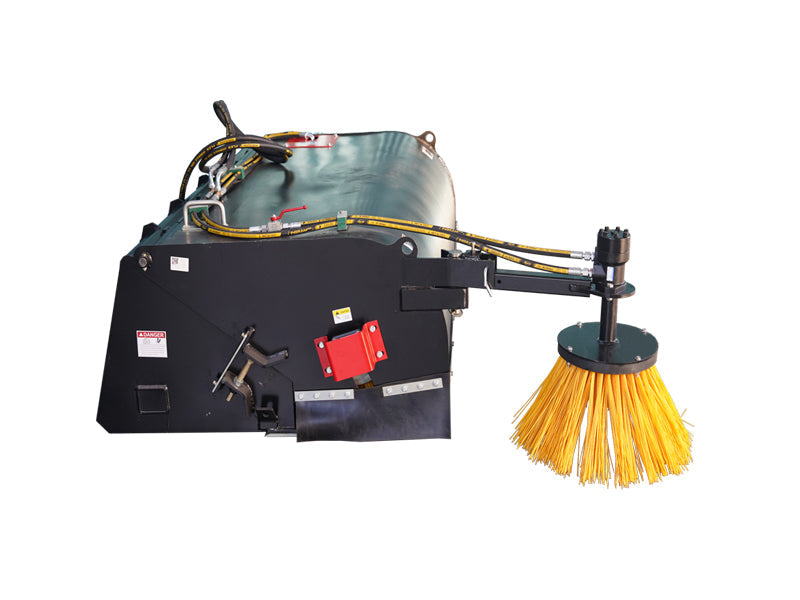

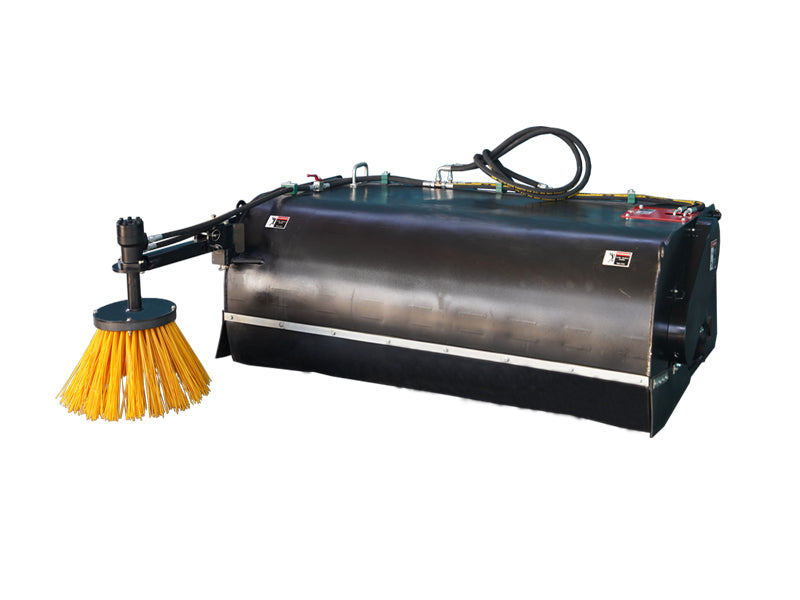

LANDYINDUS Hydraulic Box Broom Skid Steer Attachment – 72" & 83" Bidirectional Side Brush & Dust Control

The most fully featured skid steer sweeping attachment in its class. The LANDYINDUS S-BBS Hydraulic Box Broom with Side Brush combines a bidirectional main brush, integrated 500mm side brush, fully enclosed dust control housing, and box bucket collection system into one heavy-duty quick attach sweeper — available in 72" (1830mm) and 83" (2110mm) working widths.

Where standard box brooms only clean the main sweep path, the S-BBS adds a dedicated side brush that reaches into corners, along curbs, against walls, and into edge zones — delivering a complete, edge-to-edge clean in a single pass.

Key Features

• Integrated 500mm Side Brush: Reaches corners, curbs, walls, and edge zones the main drum cannot access — no manual follow-up required
• Fully Enclosed Dust Control Housing: Contains dust and prevents debris from becoming airborne — ideal for indoor construction, warehouses, and dust-regulated environments
• Bidirectional Brush System: Forward rotation picks up fine dust and dirt; reverse rotation collects rocks, gravel, and heavy construction debris — no attachment changes needed
• Adjustable Arbor Mounts: Precise bristle pressure control for different surface conditions — lighter for finished concrete and asphalt, heavier for rough or heavily soiled surfaces
• Replaceable Cutting Edge: Protects the structural frame from wear; independently replaceable at a fraction of frame replacement cost
• Quick-Change Brush System: Replace brush elements without disconnecting hydraulic lines
• Cab-Operated Lift & Tilt Dump: Empties the box bucket hopper from the cab — no chains or manual release mechanisms required
• Universal Quick Attach (MP1140): Mounts directly to standard skid steer loaders without adapters

Available Models

• 72" — S-BBS1830(72IN)-MP1140: SW 1830mm | 2200×2060×605mm | 38 brushes | 458 kg
• 83" — S-BBS2110(83IN)-MP1140: SW 2110mm | 2480×2060×605mm | 44 brushes | 511 kg

Technical Specifications

• Brush Diameter: 550 mm
• Side Brush Diameter: 500 mm
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Mount Type: MP1140 Universal Skid Steer Quick Attach

Ideal For

• Indoor construction site cleanup & dust suppression
• Municipal street & urban pavement maintenance
• Warehouse & facility floor care
• Large-scale site preparation & post-construction cleanup
• Any application with dust control regulatory requirements

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks with your skid steer model.
