Hydraulic Box Broom Skid Steer with Water Spray | 200L Tank 8 Nozzle Dust Suppression Sweeper

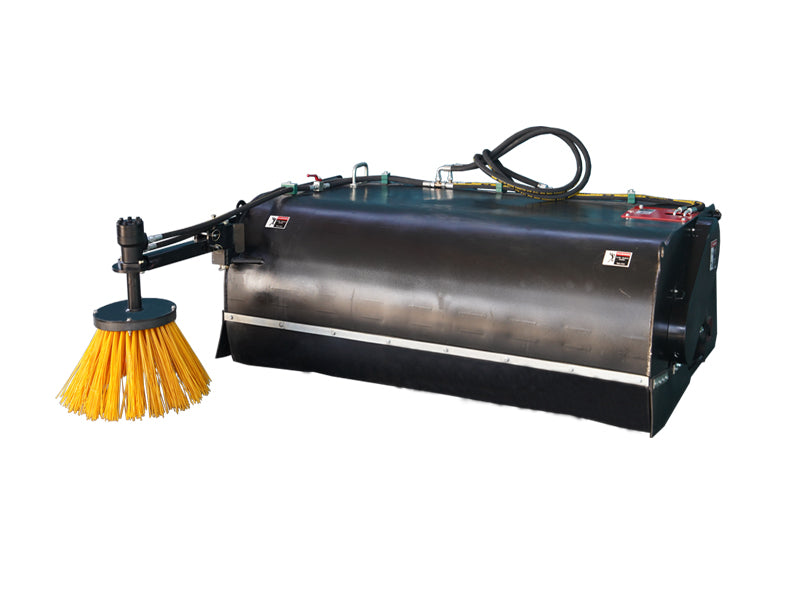

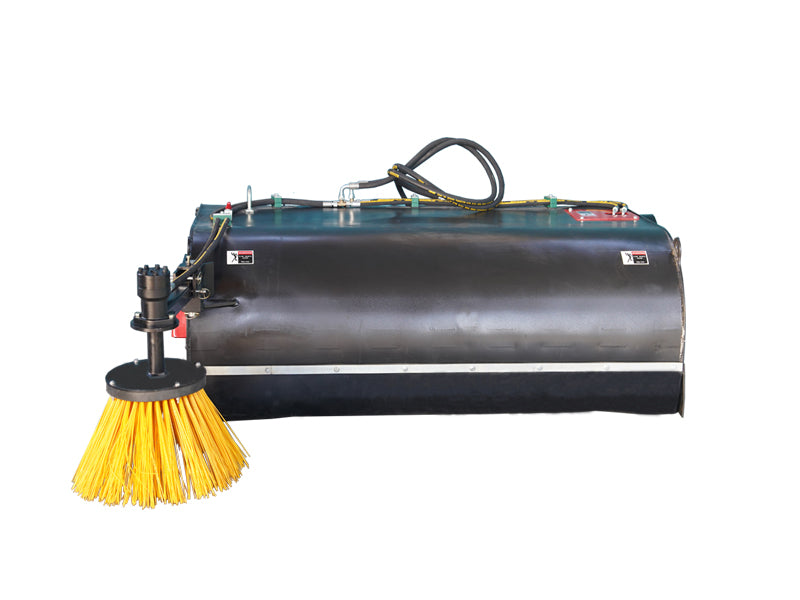

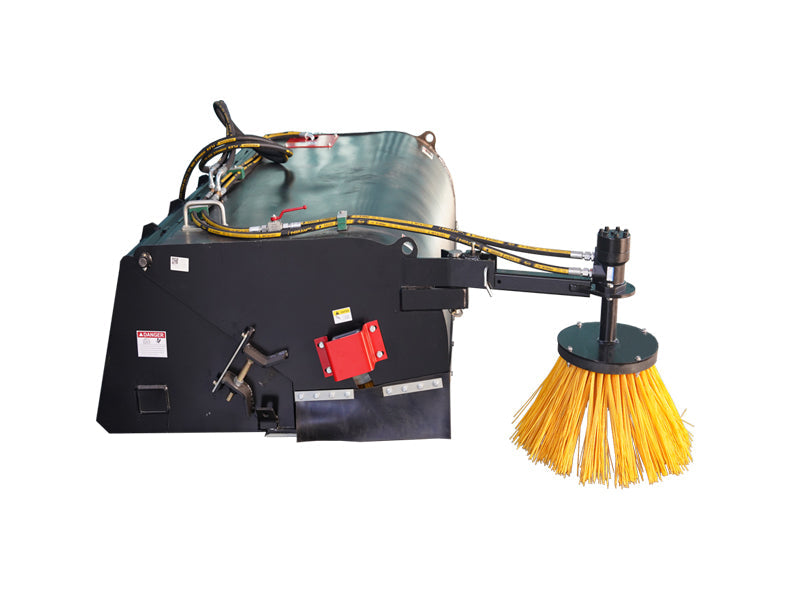

LANDYINDUS Hydraulic Box Broom Skid Steer with Water Spray – 200L Tank, 8 Nozzle Dust Suppression Sweeper

The most advanced skid steer sweeping attachment in the LANDYINDUS lineup. The S-BBSW Hydraulic Box Broom with Water Spray integrates a bidirectional main brush, 500mm side brush, 0.45m³ collection hopper, and a 200-liter onboard water tank with 8 dust suppression nozzles and electric pump into one fully self-contained sweeping system — purpose-built for applications where active dust suppression is a regulatory requirement or operational necessity.

Available in 72" (1830mm) working width. Ideal for municipal street sweeping, urban construction cleanup, industrial yard maintenance, and any environment where dry sweeping alone generates unacceptable dust levels.

Key Features

• 200L Onboard Water Tank + 8 Dust Suppression Nozzles: Electric pump delivers water through 8 strategically positioned nozzles, suppressing dust at the point of generation — extended operating range between refills for large sweeping routes
• Independent Electric Water Pump: Dust suppression operates continuously without drawing additional hydraulic flow from your machine

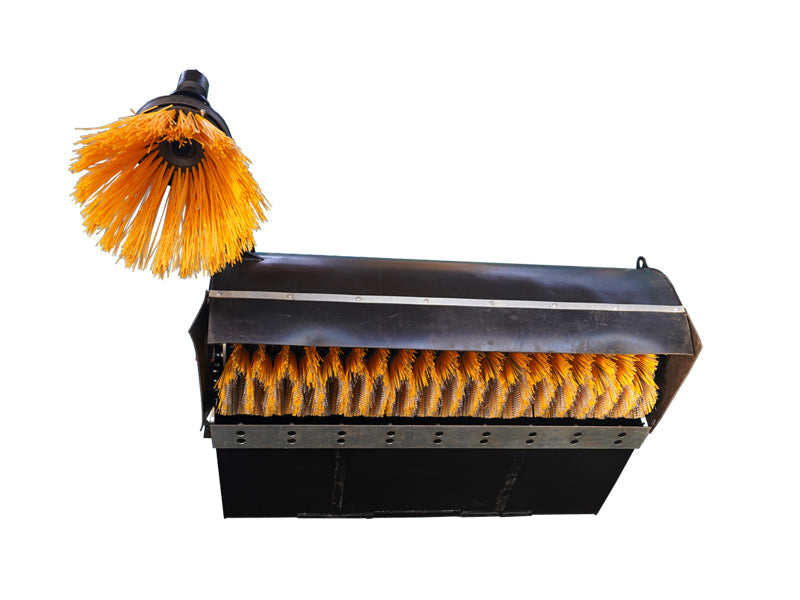

• Bidirectional Main Brush (550mm, 38 elements): Forward rotation collects fine dust and dirt; reverse handles rocks, gravel, and heavy construction debris — no attachment changes needed
• Integrated 500mm Side Brush: Edge-to-edge coverage into corners, along curbs, and against walls the main drum cannot reach
• 0.45m³ Box Bucket Hopper: Large-capacity collection with minimal debris recirculation; cab-operated lift-and-tilt dump — no chains or manual release required

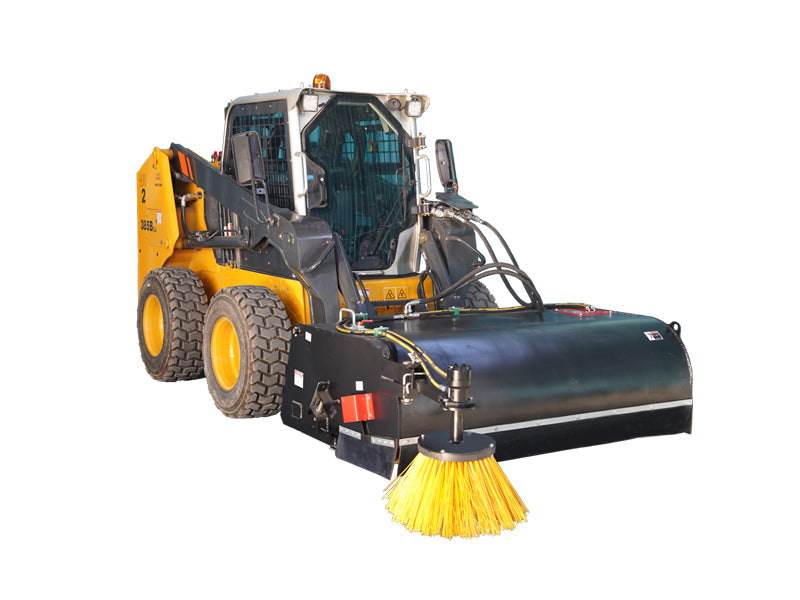

• Universal Quick Attach (MP1140): Mounts directly to standard skid steer loaders without adapters

Technical Specifications

• Model: S-BBSW1830(72IN)-MP1140
• Sweeping Width: 1830 mm (72")
• Overall Dimensions (L×W×H): 2197 × 2057 × 871 mm
• Hopper Volume: 0.45 m³
• Brush Diameter: 550 mm | Brush Qty: 38
• Water Tank: 200 L | Nozzles: 8
• Water Pump: Electric (independent of hydraulic circuit)
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 500 kg
• Mount Type: MP1140 Universal Skid Steer Quick Attach

Ideal For

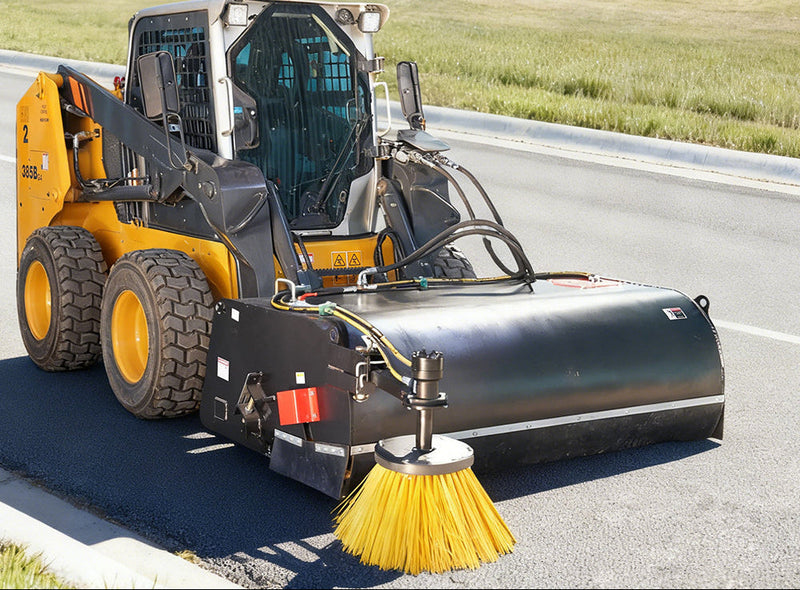

• Municipal street sweeping & urban pavement maintenance
• Construction site dust control & regulatory compliance
• Industrial yard & facility floor maintenance
• Any application under dust control or air quality regulations

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks with your skid steer model.
