Hydraulic Earth Auger Drive Skid Steer | Planetary Gear Single & Double Bit Attachment

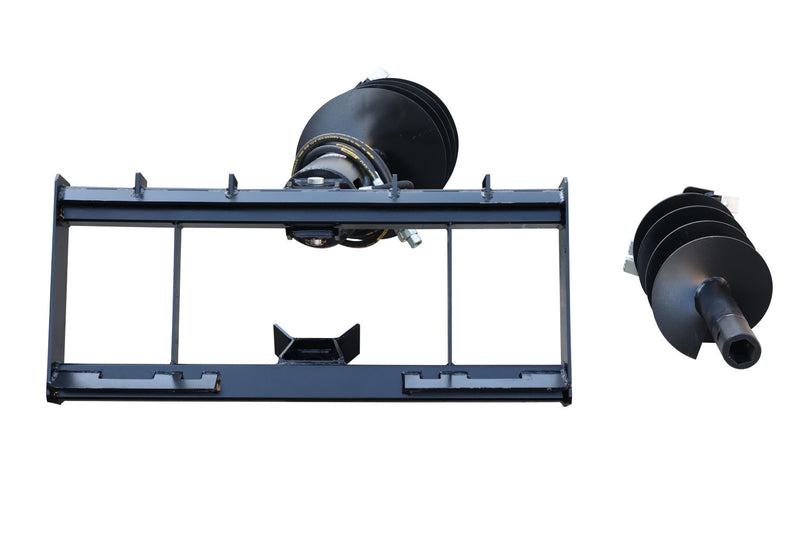

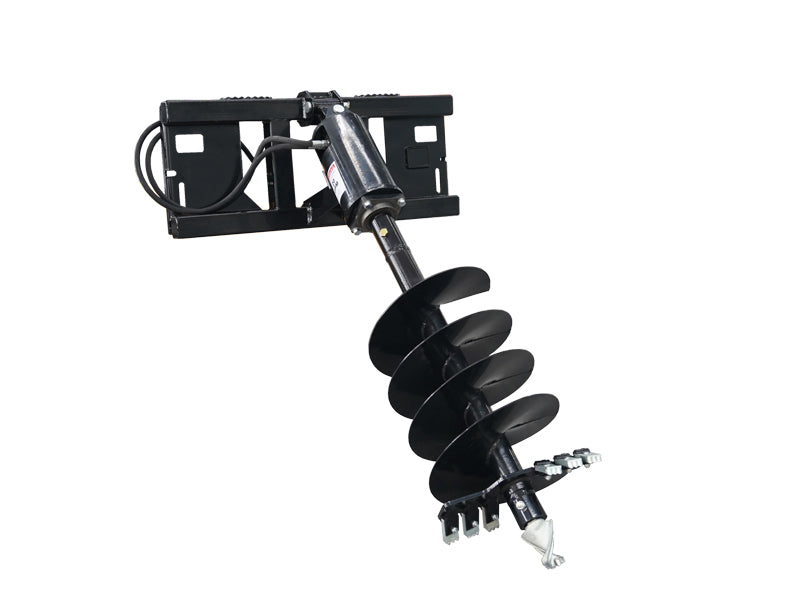

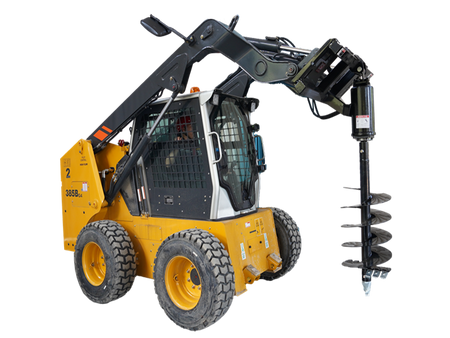

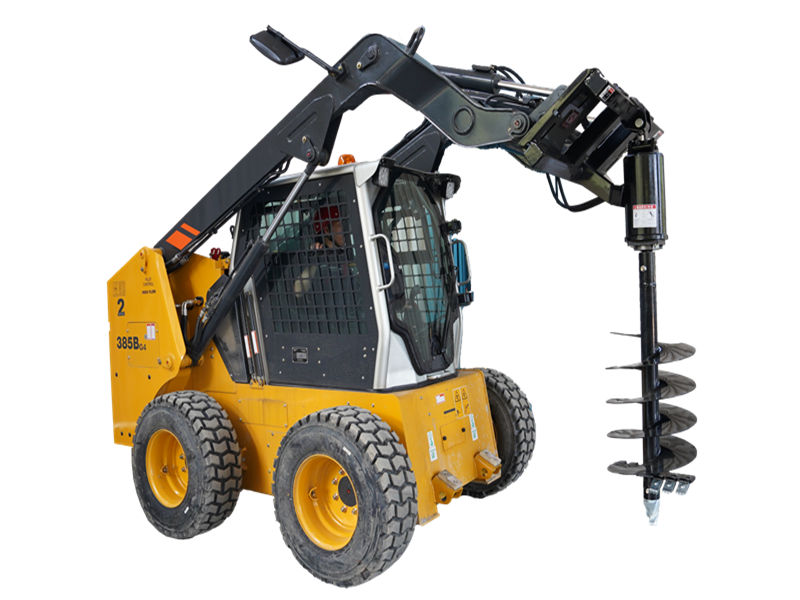

LANDYINDUS Hydraulic Earth Auger Drive Skid Steer – Planetary Gear Single & Double Bit Attachment

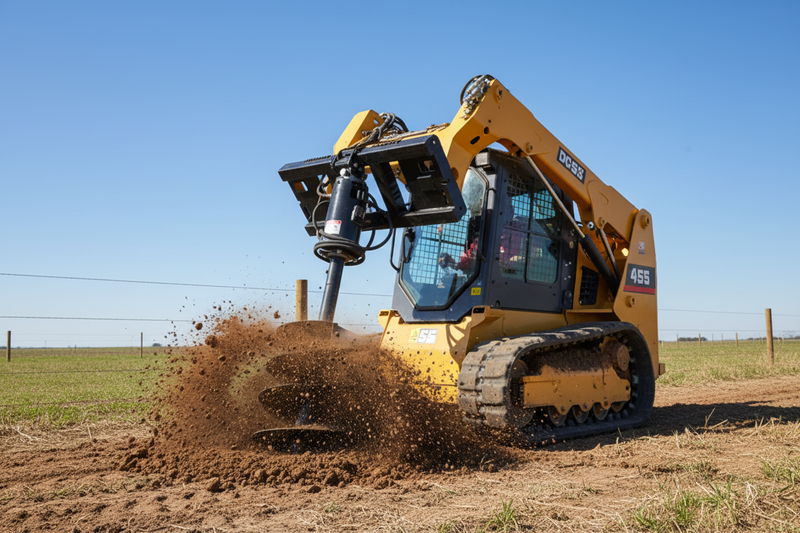

Drill precise, clean holes for fence posts, tree planting, foundation piers, and sign installation with the LANDYINDUS S-AG23 Skid Steer Hydraulic Earth Auger Drive. Powered by a hydraulic motor through a sealed planetary gear reduction system, this auger drive delivers consistent torque across all soil conditions — from loose topsoil to compacted clay and rocky ground.

Available in single-bit and dual-bit configurations with auger diameters from 150mm to 460mm and drill lengths of 915mm or 1160mm.

Key Features

• Sealed Planetary Gear Drive: No external wear points, no chain tensioning or lubrication — longer working life and reduced service intervals under daily commercial use

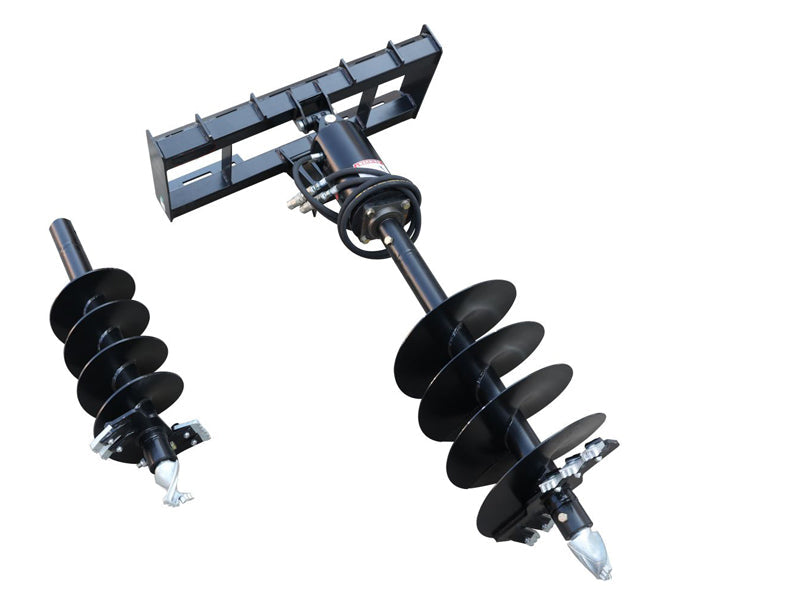

• Single & Dual Bit Configurations: Drill one or two holes simultaneously — dual-bit models significantly increase productivity on high-volume fencing, planting, and construction projects
• 150mm to 460mm Auger Diameter Range: From small-diameter fence post holes to large-diameter foundation and pier drilling in a single attachment platform
• 915mm & 1160mm Drill Lengths: Match your required hole depth for shallow post holes or deep foundation applications
• 4mm & 8mm Blade Thickness Options: Select the right blade spec for your soil and material conditions
• Universal Quick Attach (MP1140): Mounts directly to standard skid steer hydraulic circuits without custom adapters or modifications

Available Models

• S-AG23-(D150L915T4)-MP1140: 1 bit | Ø150mm | 915mm length | 4mm blade | 144 kg
• S-AG23-(D150L1160T4)-MP1140: 1 bit | Ø150mm | 1160mm length | 4mm blade | 150 kg
• S-AG23-(D230/300L1160T4)-MP1140: 2 bits | Ø230/300mm | 1160mm length | 4mm blade | 201 kg
• S-AG23-(D300/460L1160T4)-MP1140: 2 bits | Ø300/460mm | 1160mm length | 4mm blade | 227 kg
• S-AG23-(D230/300L1160T8)-MP1140: 2 bits | Ø230/300mm | 1160mm length | 8mm blade | 219 kg
• S-AG23-(D300/460L1160T8)-MP1140: 2 bits | Ø300/460mm | 1160mm length | 8mm blade | 245 kg

Technical Specifications

• Drive System: Sealed planetary gear reduction
• Operating Pressure: 16 MPa
• Hydraulic Flow: 75 LPM
• Auger Diameter Range: 150–460 mm
• Drill Length Options: 915 mm / 1160 mm
• Weight Range: 144–245 kg
• Mount Type: MP1140 Universal Skid Steer Quick Attach

Ideal For

• Fencing contractors & post hole drilling
• Landscapers & tree planting operations
• Construction foundation & pier drilling
• Sign installation & utility pole placement
• Farm managers & agricultural earthworks

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or help selecting the right auger configuration for your application.
