Hydraulic Forklift Load Pusher Attachment Class 3A | 1200mm Bag Pusher 3-3.5 Ton

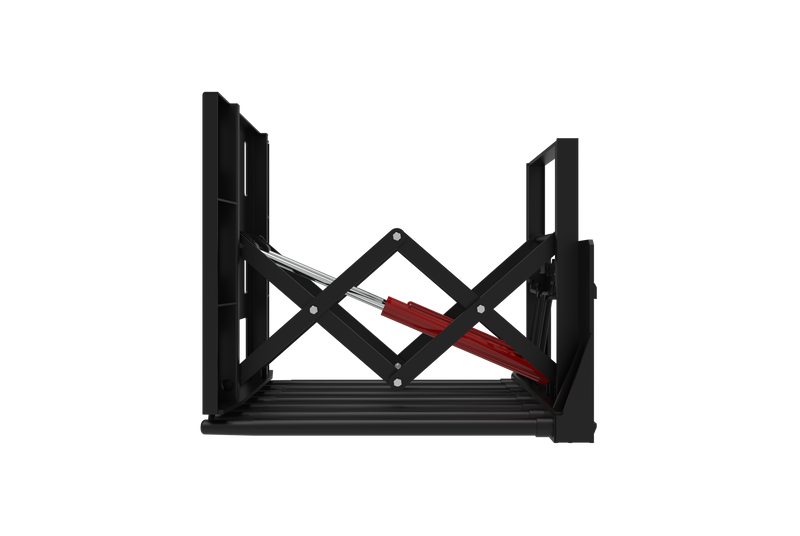

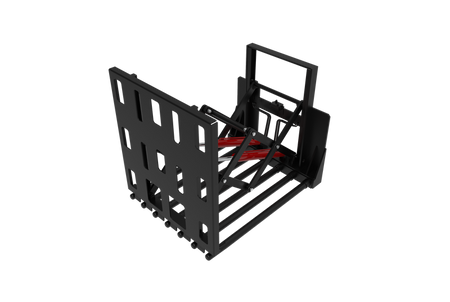

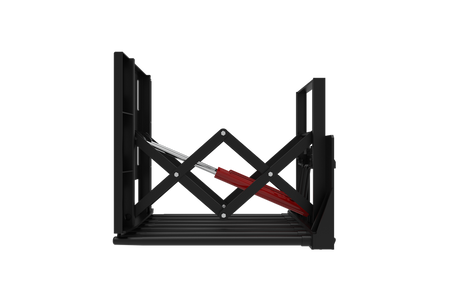

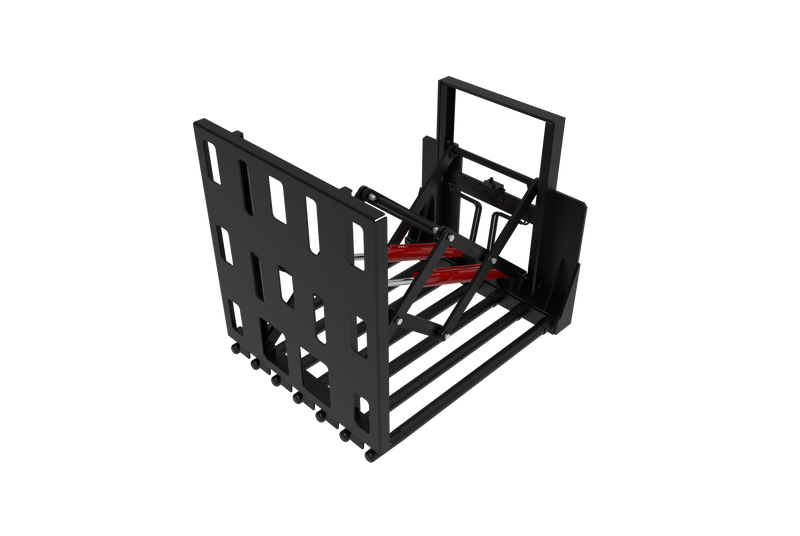

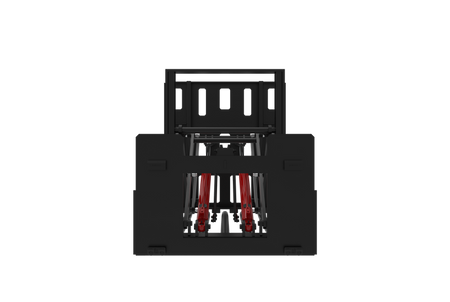

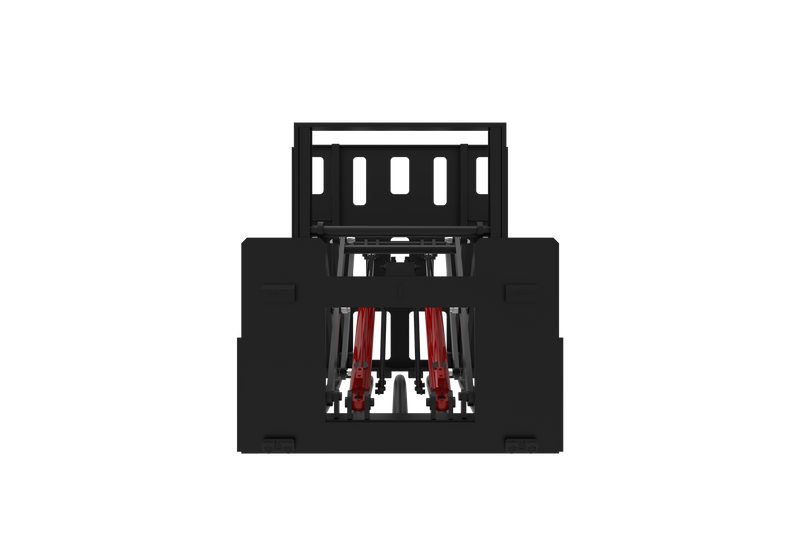

LANDYINDUS Hydraulic Forklift Load Pusher Attachment Class 3A – 1200mm Bag Pusher 3-3.5 Ton

High-efficiency, low-damage handling of bagged goods at scale. The LANDYINDUS F-TCQ3A30 Hydraulic Forklift Bag Pusher is purpose-engineered for Class 3A forklifts rated 3–3.5 tonnes, dramatically reducing manual labour and handling time when loading, stacking, and repositioning large quantities of bagged cargo in warehouses, ports, grain terminals, cement plants, fertiliser facilities, and food processing operations.

Available in 2-prong (standard) and 7-prong (high-volume) configurations. Push stroke: 1200mm (47.2").

Key Features

• Damage-Free Bag Handling: High-strength steel plate with smooth, rounded contact surface — handles cement bags, fertiliser sacks, grain bags, flour bags, rice bags, and bulk bagged commodities without tearing, puncturing, or damaging packaging
• 1200mm Hydraulic Push Stroke: Ample reach to push loads fully onto pallets, into racking, or across truck beds without repositioning the forklift
• Multi-Slot Special Pallet Design: Enables simultaneous forking and pushing operations — fast loading and precise stacking in a single fluid motion
• 2-Prong & 7-Prong Configurations: Standard 2-prong for general operations; 7-prong for high-volume bag stack widths requiring maximum contact coverage
• Class 3A Compatible: Designed for 3–3.5 tonne Class 3A forklifts — requires an additional hydraulic oil circuit on the forklift
• Heavy-Duty Steel Construction: Built for the repetitive loading cycles and high-throughput demands of industrial bagged goods handling

Available Models

• F-TCQ3A30-1150-1200-2: 2-prong | 1498×1150×1284mm | Push stroke 1200mm | 16MPa / 60LPM | 497kg | Class 3A | 3–3.5T
• F-TCQ3A30-1150-1200-7: 7-prong | 1506×1150×1315mm | Push stroke 1200mm | 16MPa / 60LPM | 703kg | Class 3A | 3–3.5T

Technical Specifications

• Forklift Class: Class 3A
• Suitable Forklift: 3–3.5 Ton
• Push Stroke: 1200 mm (47.2")
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 497 kg (2-prong) / 703 kg (7-prong)
• Note: Requires additional hydraulic oil circuit on forklift

Ideal For

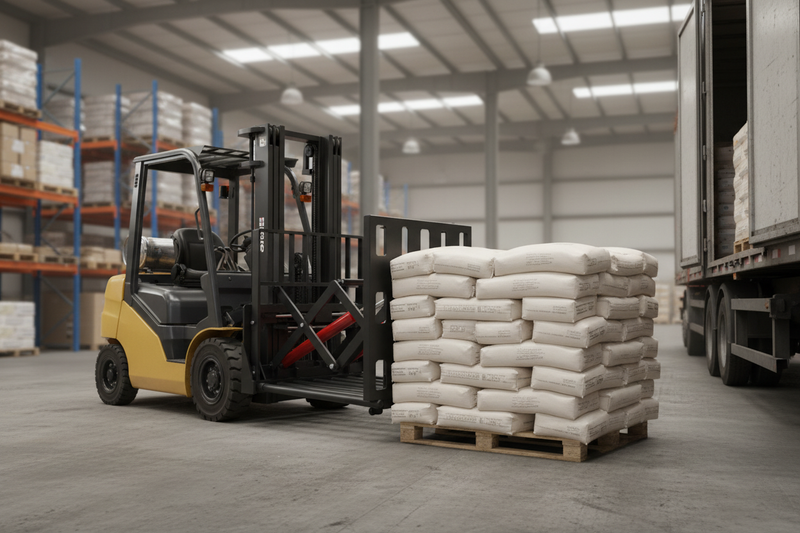

• Warehouses & distribution centres — palletized bagged goods loading & stacking
• Ports & grain terminals — high-volume bulk bag handling
• Cement plants & fertiliser facilities — damage-free sack handling
• Food processing — flour, rice & grain bag repositioning

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks for your specific forklift model.
