Product Overview
Looking for a reliable way to secure long, unstable loads on your forklift? The LANDYINDUS LS Series Hydraulic Forklift Load Stabilizer is your heavy-duty solution.

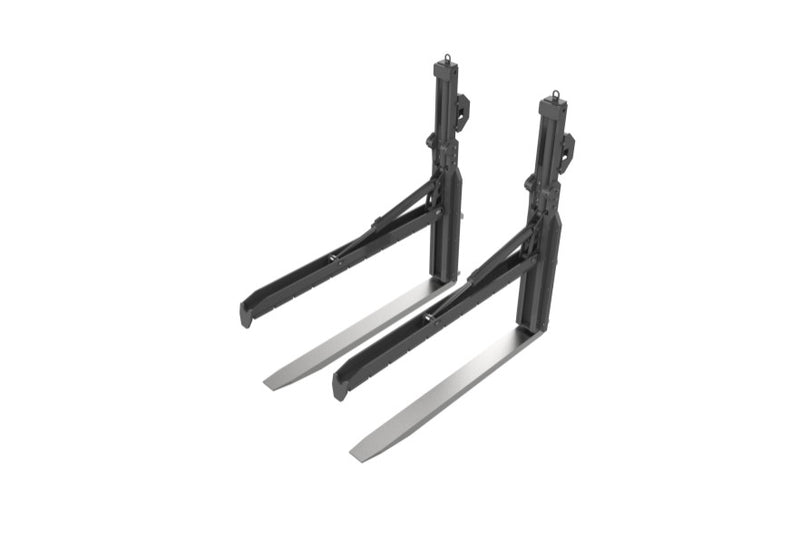

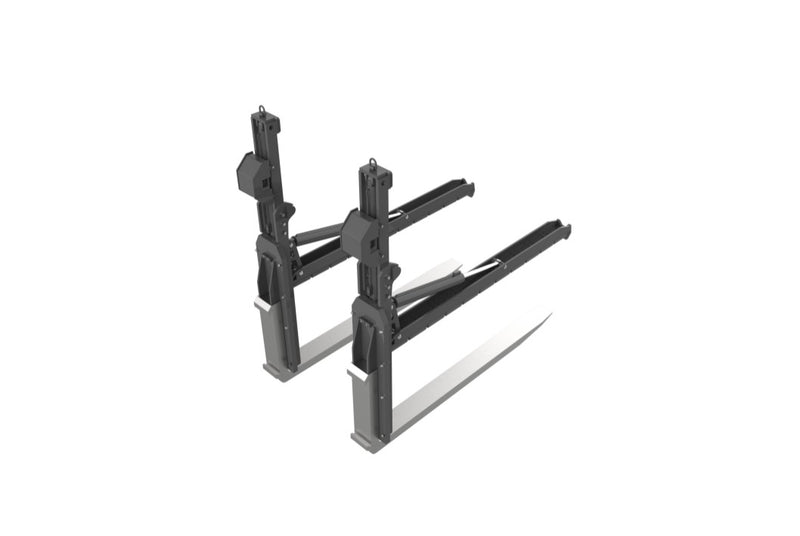

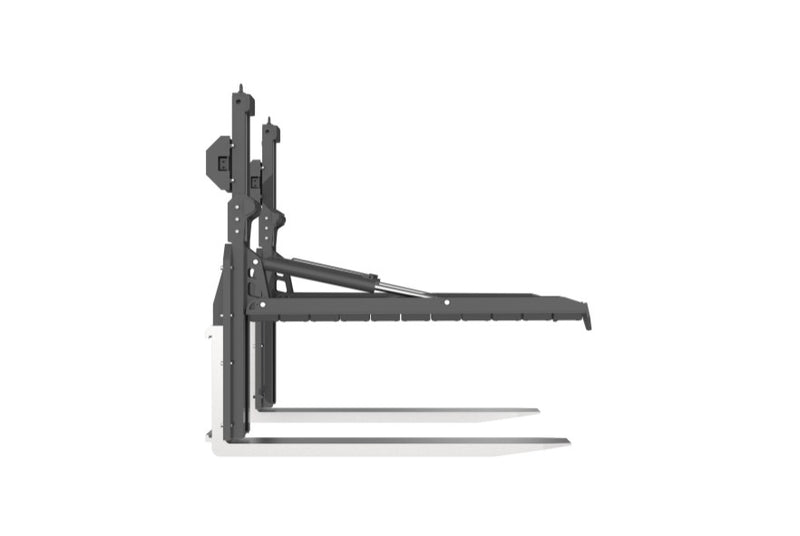

The LANDYINDUS LS series is a hydraulic forklift load stabilizer attachment engineered to safely handle long, unstable, and difficult-to-manage loads across a safe working load range of 3,000 kg to 35,000 kg. Designed to mount directly onto the truck's existing forklift forks using a retaining plate — with no permanent modification required — the LS series transforms a standard forklift into a precision load control machine capable of handling materials that would otherwise pose significant safety risks during transport and placement.
Core Selling Points
- Adaptive Grip Technology: The stabilizer's holding arm actively follows the natural bending of the fork under load, maintaining a secure, adaptive grip on the outer goods throughout the entire lift and travel cycle.
- Versatile Application: Purpose-built for industries that regularly handle long materials such as steel pipes, structural sections, timber, conduit, and other cylindrical or elongated loads.
- Industrial-Grade Durability: Backed by LANDYINDUS's manufacturing standards, built to perform reliably under the sustained demands of heavy industrial operations.
- Broad Compatibility: Available for trucks handling loads from between 3t to 35t. (Note: Forks are not included).
Specifications
| Type | SWL/kg | Fork Length (L)/mm | Width (W)/mm | Pocket Width (w)/mm | Height (H)/mm | Rotation Angle (SA)/° | Opening Range (OR)/mm | Load Centre /mm | Operating Pressure /MPa | Hydraulic Flow /LPM | Weight /kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F-LS3-500-1200 | 3000-5000 | 1200-2000 | 260 | 100 | 1800 | 90 | 0-450 | 500 | 16 | 60 | 360 |
| F-LS6-600-1500 | 6000-10000 | 1500-2400 | 310 | 100 | 2200 | 90 | 0-600 | 600 | 16 | 60 | 760 |
| F-LS12-600-1600 | 10000-18000 | 1600-2500 | 360 | 150 | 2500 | 90 | 0-900 | 600 | 16 | 60 | 1050 |
| F-LS20-1200-1800 | 10000-20000 | 1800-3000 | 400 | 200 | 3000 | 90 | 0-900 | 1200 | 16 | 60 | 1600 |
| F-LS35-1200-2000 | 25000-35000 | 2000-3000 | 400 | 200 | 3000 | 90 | 0-900 | 1200 | 16 | 60 | 2240 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Load De-rating: The addition of this attachment alters the center of gravity and reduces the effective lifting capacity of the host forklift. Always refer to the derated capacity plate on your forklift before operation.
- Hydraulic Requirements: This is a hydraulic attachment requiring correct hydraulic circuit connections. Verify your forklift's operating pressure (16 MPa) and hydraulic flow rate (60 LPM) are compatible prior to purchase.
- Mounting Compatibility: Ensure your existing forks match the specified fork length (1200mm - 3000mm) and pocket widths (100mm - 200mm) as indicated in the specifications table. Verify carriage class compatibility (e.g., ISO Class 2A/3A/4A or pin-type if applicable).
- Installation & Retention: Must be secured correctly using the designated retaining plates and locking methods (e.g., locking pins/bolts) to prevent slippage during use. Do not operate without securing the attachment to the forks.
