Hydraulic Hay Accumulator Grapple Skid Steer | 8-10 Square Bales 24 Hook Quick Attach

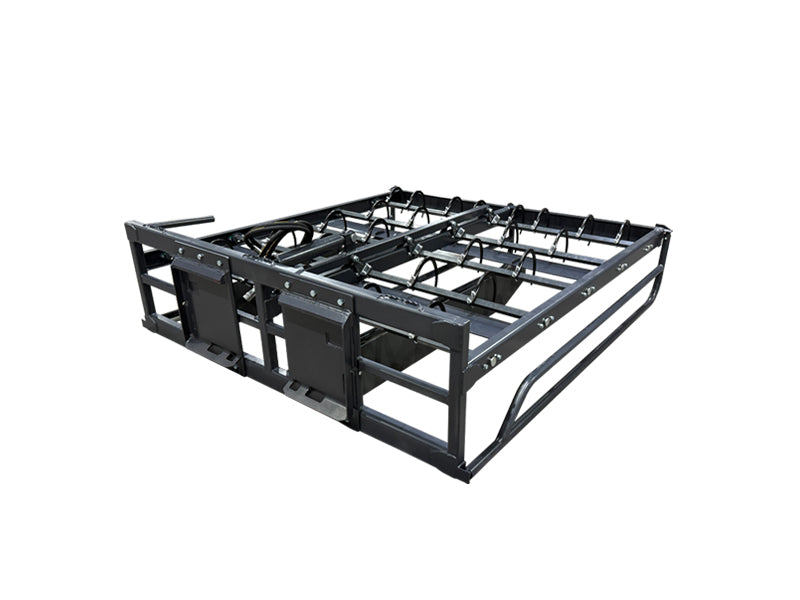

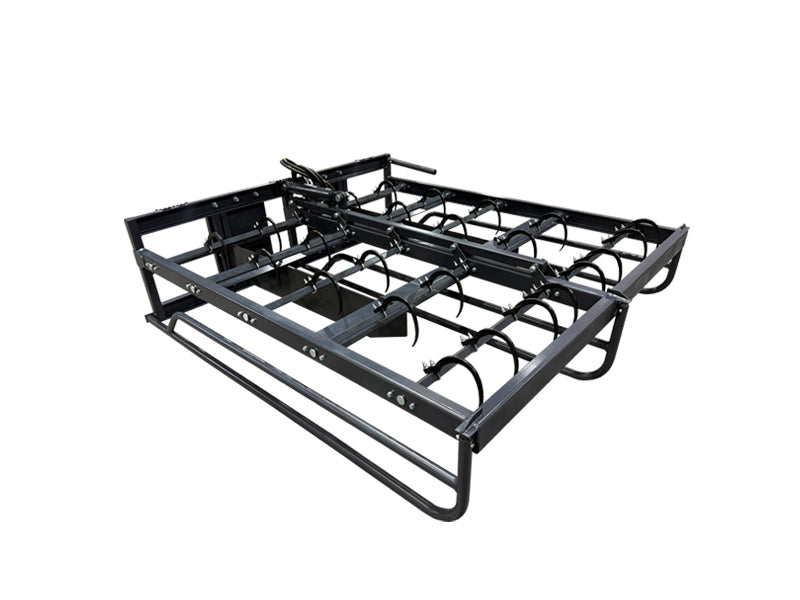

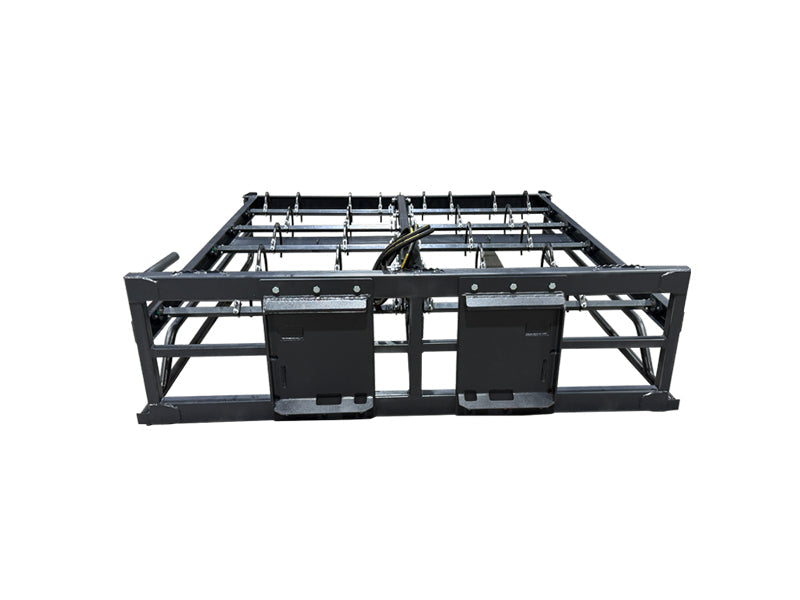

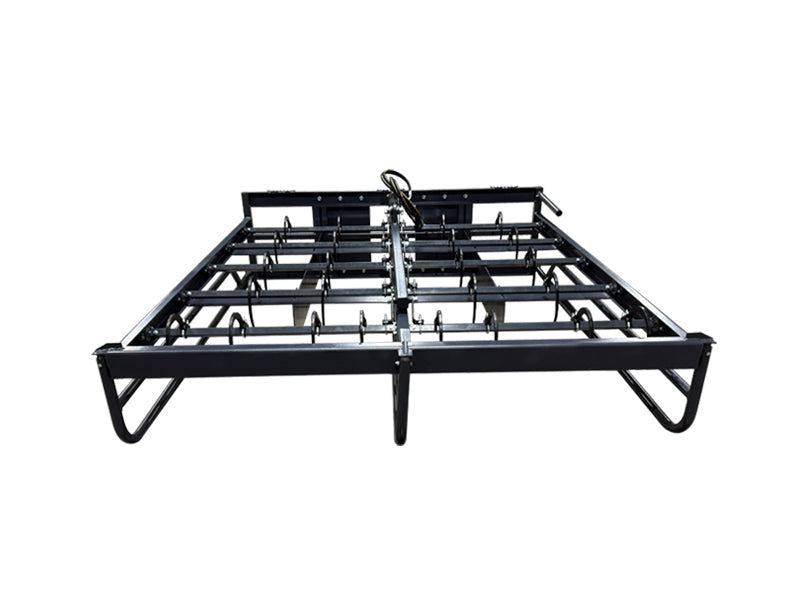

LANDYINDUS Hydraulic Hay Accumulator Grapple Skid Steer – 8-10 Square Bales, 24 Hook, Quick Attach

Move 8 to 10 square bales in a single pass. The LANDYINDUS S-HAG Skid Steer Hay Accumulator Grapple is a high-capacity hydraulic quick attach attachment purpose-built for large-scale square bale collection and transportation — transforming multiple trips with a conventional bale grab into one efficient cycle and reducing total handling time, fuel consumption, and machine hours by up to 10x per pass.

Ideal for hay contracting businesses, large-scale livestock operations, and seasonal bale collection across hundreds of acres.

Key Features

• 8–10 Square Bale Capacity Per Pass: High-volume collection dramatically reduces total field cycles on operations moving hundreds or thousands of bales per season
• 24 x 9-Inch Precision Hooks: Multi-point engagement across the full 2237mm working width — bales stay firmly gripped during lifting, carrying, and stacking on uneven field terrain
• Dual Hydraulic Cylinder Configuration (2 × 6 Cylinders): Balanced, even clamping force across the entire grapple width — consistent grip pressure from first bale to last regardless of load distribution
• Radial Bearings at Pivot Points: Smooth, low-friction arm movement and long-term wear resistance under high-cycle commercial hay contracting demands
• Universal Quick Attach (MP1140): Fast, tool-free mounting to standard skid steer loaders

Technical Specifications

• Model: S-HAG(96×88×25IN)-MP1140
• Overall Dimensions (W×D×H): 2237 × 646 × 2438 mm
• Hook Quantity: 24 pcs
• Hook Size: 9 inch
• Cylinder Configuration: 2 × 6 hydraulic cylinders
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 412 kg
• Mount Type: MP1140 Universal Skid Steer Quick Attach

Ideal For

• Hay contracting & commercial bale handling operations
• Large-scale livestock & dairy farm bale management
• Seasonal square bale collection across large acreage
• High-volume stacking & storage yard operations

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks with your skid steer model.
