Hydraulic Manure Fork Grapple Skid Steer | 11 Tine Silage & Utility Quick Attach Attachment

LANDYINDUS Hydraulic Manure Fork Grapple Skid Steer – 11 Tine Silage & Utility Quick Attach

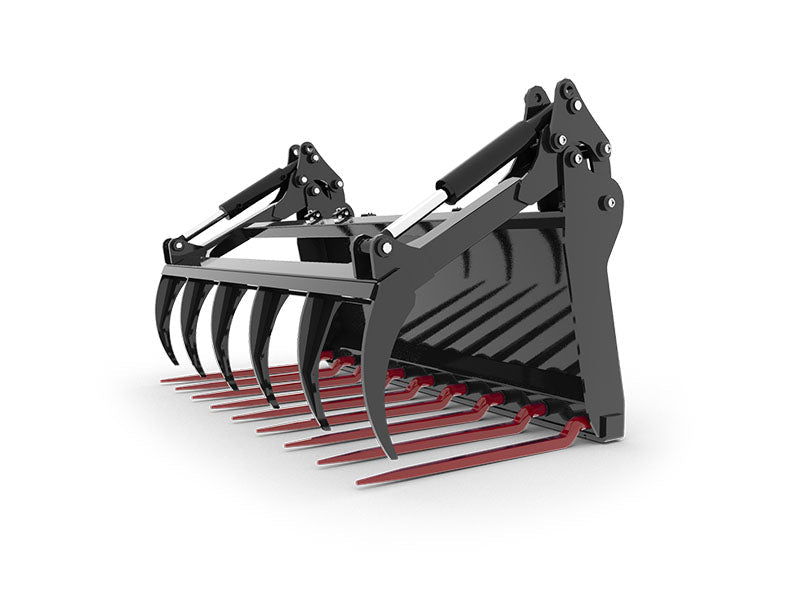

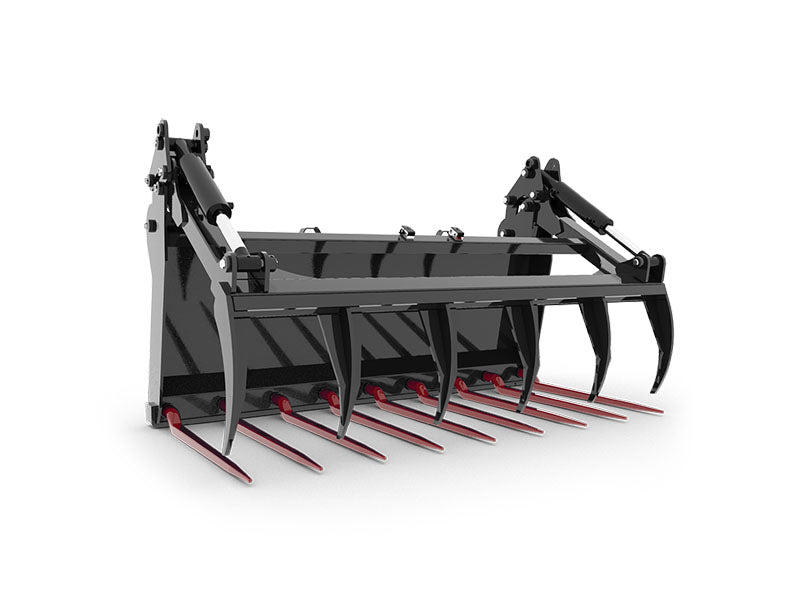

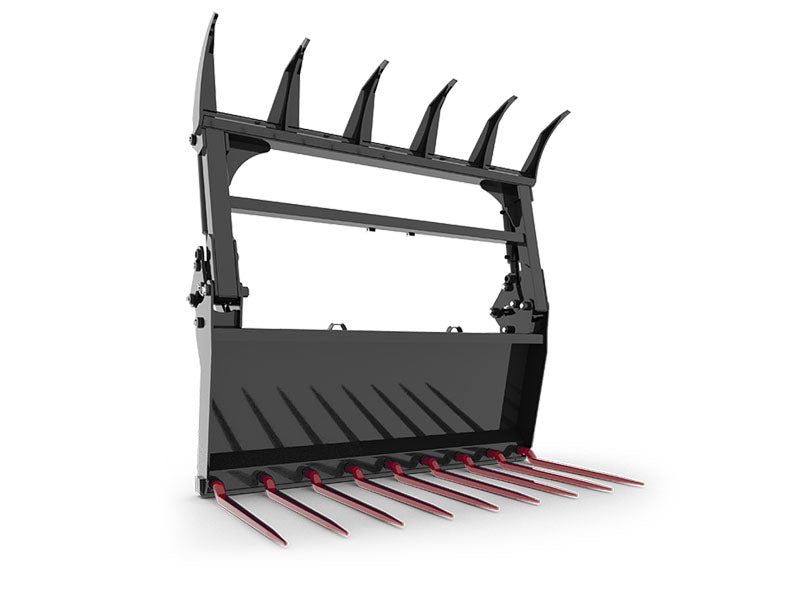

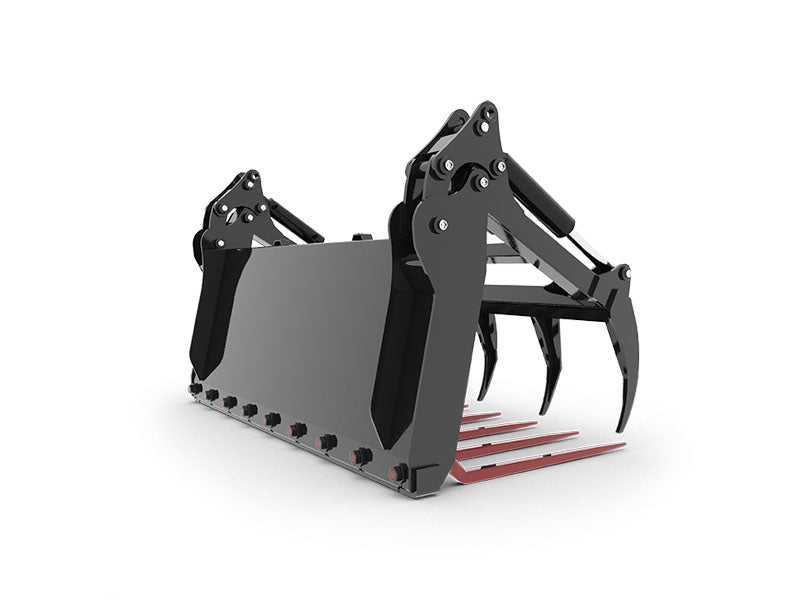

Scoop, grip, tear, and transport manure, silage, straw, greenery, and pruning waste with one attachment. The LANDYINDUS S-MF2130GR Skid Steer Manure Fork with Hydraulic Utility Grapple combines an 11-tine manure fork with a hydraulic grapple (100–1435mm opening range) for active material grip and control — dramatically reducing spillage and improving load efficiency on every cycle.

Ideal for dairy farms, beef feedlots, silage operations, and large-scale composting facilities.

Key Features

• Hydraulic Grapple 100–1435mm Opening Range: Grips large volumes of loose material, wraps around dense silage clamps, and handles bulky pruning and green waste that a standard fork cannot contain
• 11 Tines Ø36mm × 880mm: Optimal tine diameter and spacing for maximum material penetration and retention across the full 2178mm working width
• Hardened Wear Plate: Shields the highest-wear contact points under the lower protected tines from abrasive ground and concrete surface wear — extends tine life and reduces maintenance costs
• Cross Tube Upper Frame: Provides additional structural rigidity, keeping grapple geometry stable and preventing frame flex during heavy gripping operations
• Thick-Walled Side Plates: Lateral structural strength to handle combined fork loading and hydraulic grapple clamping stress without deformation
• Universal Quick Attach (MP1140): Fast, tool-free mounting to standard skid steer loaders

Technical Specifications

• Model: S-MF2130GR1830(72IN)-MP1140
• Overall Dimensions (W×D×H): 2178 × 1046 × 1053 mm
• Tines: Ø36mm × 880mm × 11 pcs
• Grapple Opening Range: 100–1435 mm
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 479 kg
• Mount Type: MP1140 Universal Skid Steer Quick Attach

Ideal For

• Dairy farms & beef feedlot manure management
• Silage clamp handling & feed distribution
• Straw, greenery & pruning waste collection
• Large-scale composting & agricultural waste operations

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks with your skid steer model.
