LANDYINDUS 107" Heavy Duty Soil Bucket 2.5m³ | Euro Quick Attach Front Loader

LANDYINDUS T-SXL Heavy Duty Soil Bucket 107–115" | 2.5–2.7m³ | Euro Quick Attach Front Loader

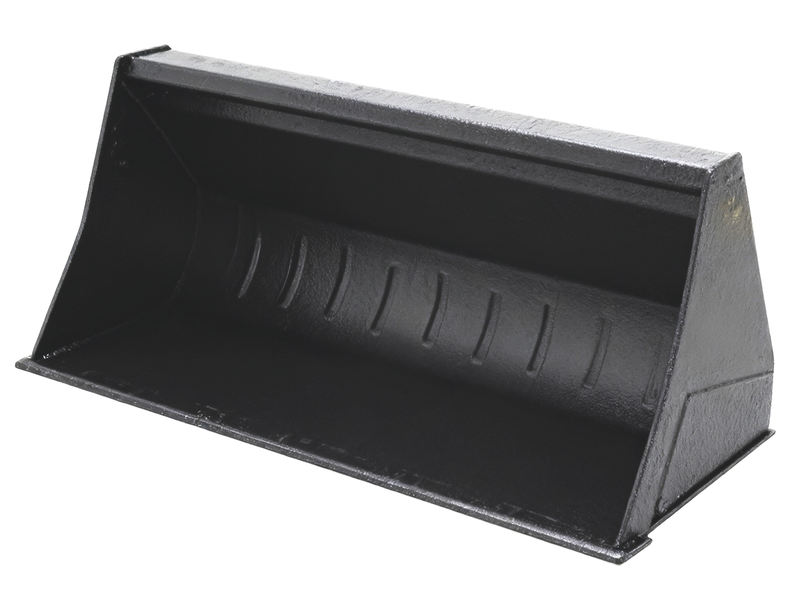

The LANDYINDUS T-SXL Heavy Duty Soil Bucket is engineered for large tractor front loaders and wheel loaders, available in 107" (2,720mm) and 115" (2,920mm) working widths with bucket volumes of 2.5 and 2.7 m³ respectively. Designed for high-volume earthmoving, bulk material loading, and site clearance operations on construction sites, quarries, agricultural yards, and infrastructure projects, the T-SXL delivers the width, depth, and structural strength required to move maximum material volume in minimum passes.

Concave Gable Design — Concentrates Penetration Force for Lower Cutting Resistance

The concave gable design is the defining feature that sets the T-SXL apart from standard flat-profile soil buckets. The angled side walls converge toward the cutting edge, concentrating the bucket's penetration force into a narrower leading profile that cuts through compacted soil, gravel, rock, and sand with significantly less resistance than a conventional straight-sided bucket. This geometry allows the operator to achieve full bucket penetration in harder materials without requiring additional downforce from the loader arms — reducing cycle time per load and minimising wear on the cutting edge and bucket floor.

Short-Floor Design — Maximum Fill Efficiency in a Single Forward Pass

The bucket floor is intentionally shorter in depth than conventional designs — a deliberate engineering choice that maximises the ratio of bucket volume to material resistance during the fill stroke. By reducing the floor depth while maintaining full bucket capacity through the concave side wall geometry, the T-SXL fills more completely in a single forward pass, reducing the number of repositioning movements required to achieve a full load. Particularly effective in loose to medium-density materials such as topsoil, sand, and fine gravel, where bucket fill efficiency directly determines site productivity.

Euro Quick Attach — Direct Integration, No Custom Adapters

Both configurations are available with Euro quick attach mounting, integrating directly with compatible front loader systems without requiring custom adapters or fabrication — ensuring fast, secure attachment changes when switching between implements on multi-task operations.

Two Models — 107" & 115" | 2.5–2.7m³ | 1,158–1,216kg

• T-SXL2720 (107") — 2,720mm wide | 1,290×1,330mm (D×H) | 2.5m³ | 1,158kg | Euro
• T-SXL2920 (115") — 2,920mm wide | 1,290×1,330mm (D×H) | 2.7m³ | 1,216kg | Euro

Key Features

• 107" & 115" working widths — 2.5 & 2.7m³ high-volume capacity
• Concave gable design — lower cutting resistance than straight-sided buckets
• Full penetration in hard materials without additional loader arm downforce
• Short-floor geometry — maximum fill efficiency in a single forward pass
• Reduced repositioning cycles — higher productivity in topsoil, sand & fine gravel
• Euro quick attach — no custom adapters, direct front loader integration
• 1,158–1,216kg — engineered for large front loader systems at upper tractor range
• Suited to construction, quarrying, agricultural yards & infrastructure earthmoving

Specifications
