LANDYINDUS 25 Ton Inverted Hydraulic Log Splitter Skid Steer Attachment | Heavy Duty | 650mm Log Length | MP1140

LANDYINDUS S-LS25-CR-S45/S45-MP1140 25 Ton Inverted Hydraulic Log Splitter Skid Steer Attachment | Heavy Duty | 650mm Log Length | MP1140 Universal Quick Attach

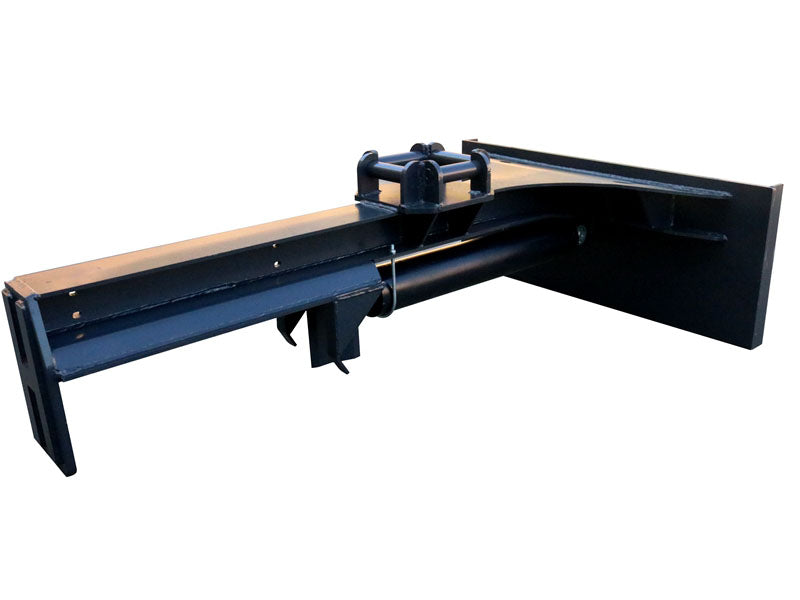

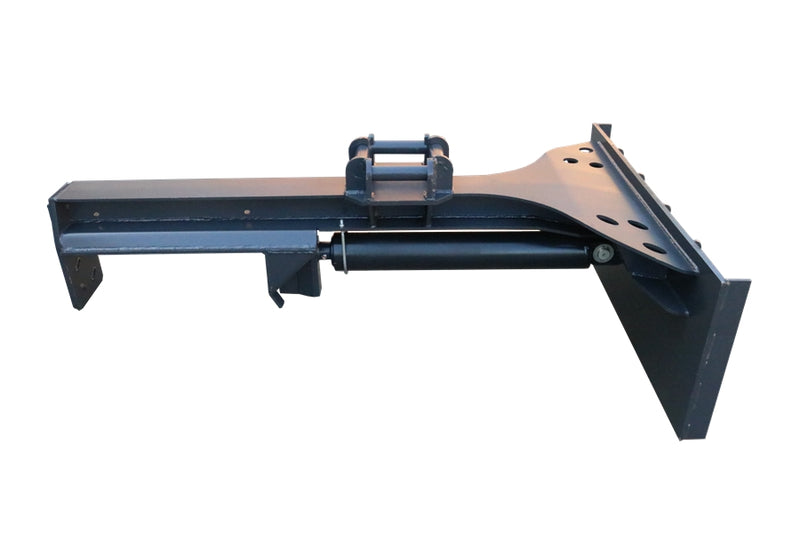

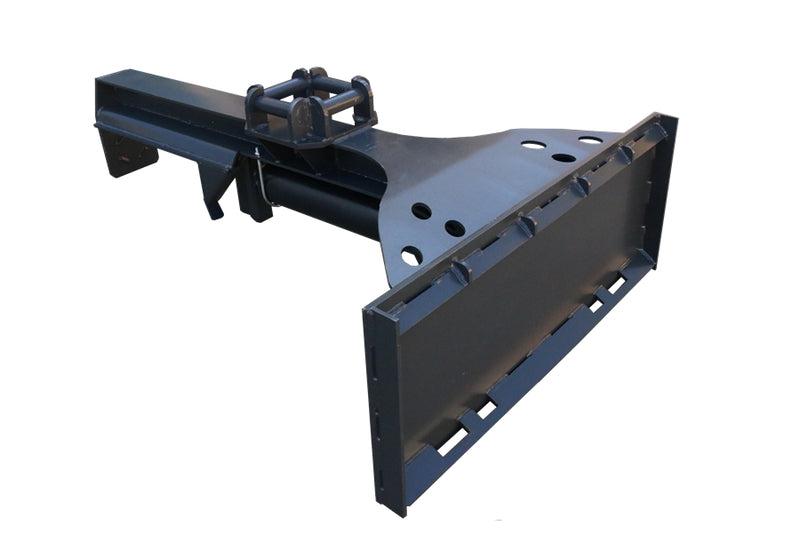

The LANDYINDUS 25 Ton Inverted Log Splitter is a heavy-duty hydraulic skid steer attachment built for operators who need serious wood splitting power without leaving the cab. Delivering 25,000kg (25 ton) of split force, this inverted log splitter attachment lets you tackle large-diameter logs up to 650mm in length directly on the ground — dramatically reducing the manual labour and time typically associated with firewood processing, land clearing, and timber management operations.

25,000kg Split Force | Inverted Head Design — Split Large-Diameter Logs on the Ground, No Manual Handling

The inverted head design allows the operator to position the log using the front of the splitter, lower the inverted head over the log, and engage auxiliary hydraulics to split on the spot — all from inside the cab. Alternatively, apply downward pressure to lift and transport the log to a preferred splitting location before engaging. With 25,000kg of split force, this attachment handles large-diameter logs that manual or small-capacity splitters cannot process efficiently.

16 MPa | 60 LPM — Seamless Integration with Existing Skid Steer Auxiliary Hydraulics

With an operating pressure of 16 MPa and a hydraulic flow requirement of 60 LPM, this attachment integrates seamlessly with your existing skid steer hydraulic system for smooth, consistent performance across long working sessions. No high-flow requirement — compatible with standard auxiliary hydraulic circuits on most skid steer loaders.

Universal Skid Steer Mount | MP1140 — Compatible with Any Brand or Model of Skid Steer Loader

Designed with a universal skid steer mount hitch via MP1140 quick attach, the LANDYINDUS inverted log splitter is compatible with any brand or model of skid steer loader — making it a versatile addition to any fleet. At 316kg with overall dimensions of 1,945 × 1,250 × 570mm, it provides the structural mass needed for stable splitting performance without excessive front axle loading.

Who Is This For?

• Firewood suppliers — high-volume log splitting without manual handling or ground-level splitter setup
• Forestry contractors — process felled timber on-site during land clearing operations
• Farmers & ranchers — manage timber, process firewood & clear fallen trees efficiently
• Land clearing professionals — split and process logs as part of continuous clearing workflow

Key Features

• 25,000kg (25 ton) split force — large-diameter logs, no manual handling required
• Inverted head design — lower over log & split on the ground, or lift & transport first
• 0–650mm log length capacity — wide range of log sizes in one attachment
• Cab-operated — full splitting cycle without leaving the seat
• 16 MPa | 60 LPM — standard auxiliary hydraulics, no high-flow requirement
• 1,945×1,250×570mm | 316kg — stable splitting performance, manageable front axle load
• Universal MP1140 quick attach — any brand or model of skid steer loader

Technical Drawing:

Specifications
