LANDYINDUS 25 Ton Inverted Log Splitter | 650mm Log Length | Two-Way | 6"×10" Steel Frame | Cat 1 & 2 / S45 Skid Steer | 16MPa | T-LS25

LANDYINDUS T-LS25 25 Ton Inverted Log Splitter | 650mm Log Length | Two-Way Splitting | 6"×10" Solid Steel Tube Frame | Cat 1 & Cat 2 Three-Point Hitch / S45 Skid Steer | 25,000kg Splitting Force | 16 MPa | 263kg

The LANDYINDUS T-LS25 25 Ton Inverted Log Splitter is a heavy-duty tractor and skid steer attachment that delivers 25 tons (25,000kg) of hydraulic splitting force in a two-way inverted design — allowing operators to split firewood and process logs directly from the cab without ever needing to lift, carry, or manually position heavy logs. Compatible with Cat 1 and Cat 2 three-point hitch tractors as well as S45 skid steer loaders, it fits virtually any tractor or skid steer brand without requiring custom mounting hardware.

Inverted Operating Principle — Splitter Comes Down to the Log, No Manual Log Lifting Required

The inverted operating principle is what sets this splitter apart from conventional vertical and horizontal log splitters. Rather than lifting logs onto a splitting beam, the operator lowers the splitter over the log where it lies on the ground — using the front of the unit to push logs into position, then applying downward splitting force through the wedge. Logs up to 650mm in length can be split on the ground in place, or lifted and transported to a different location for splitting. This approach eliminates the back strain and safety risk of manual log handling, dramatically reducing operator fatigue during extended firewood processing sessions.

Two-Way Splitting — Forward and Return Stroke Both Split, Maximum Cycle Efficiency

The two-way splitting design applies hydraulic force on both the forward and return stroke, meaning every hydraulic cycle produces a split — eliminating the idle return stroke of single-acting splitters and maximizing the number of splits per hour from the same hydraulic flow and operating time.

6"×10" Solid Steel Tube Frame — Sustained Hydraulic Forces, No Frame Flex or Structural Fatigue

Built around a reinforced 6-inch by 10-inch solid steel tube frame, the splitter is engineered to withstand the sustained hydraulic forces of heavy-cycle splitting without frame flex or structural fatigue. At 263kg, it provides the mass and stability needed to hold position during splitting without shifting or bouncing on uneven ground.

Cat 1 & Cat 2 / S45 — Three Mounting Configurations, One Attachment

Compatible with Cat 1 and Cat 2 three-point hitch tractors as well as S45 skid steer loaders, the T-LS25 covers the three most common machine interfaces for farm and rural property operators — fitting virtually any tractor or skid steer brand without requiring custom mounting hardware.

T-LS25 vs Conventional Log Splitters — Why Inverted?

Key Features

• Inverted design — splitter lowers to log, no manual log lifting or carrying
• 25 tons (25,000kg) splitting force — heavy firewood and timber processing
• Two-way splitting — splits on both forward and return stroke
• 6"×10" solid steel tube frame — no flex or fatigue under heavy-cycle use
• Up to 650mm log length | 263kg
• Cat 1 & Cat 2 / S45 skid steer — three mounting configurations
• 16 MPa | 60 LPM — tractor or skid steer auxiliary hydraulic circuit

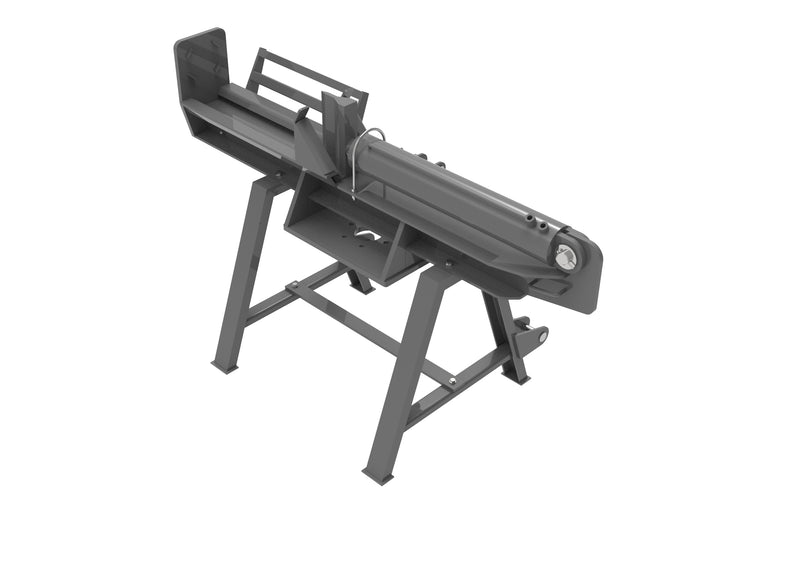

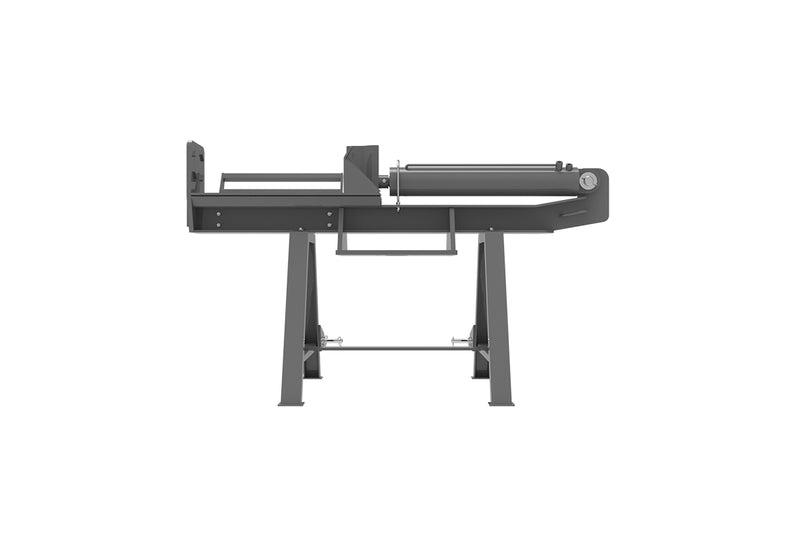

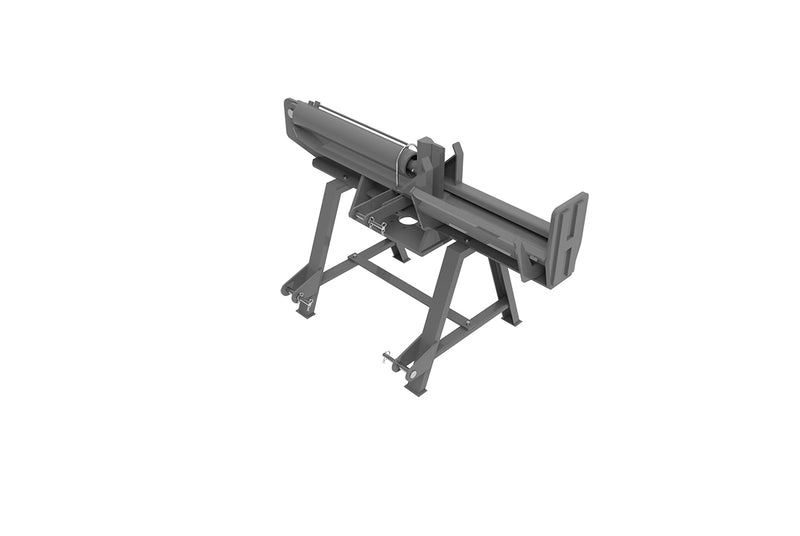

Technical Drawing:

Specifications
