LANDYINDUS 360° Rotating Hydraulic Grading Bucket | 16° Mounting Angle | Chamfered Corners | 47.24" (1,200mm) | 0.37m³ | S40 | 16 MPa | 60 LPM | ME-GB6-S40-360°

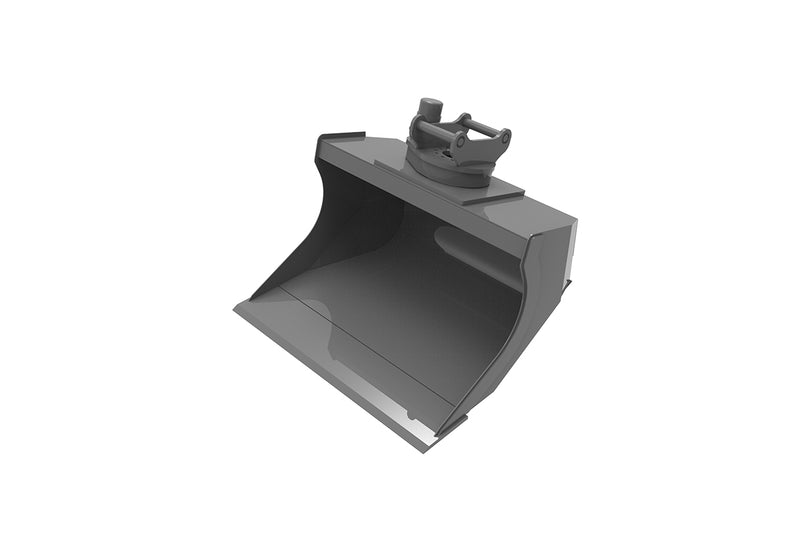

LANDYINDUS ME-GB6-S40-360° Hydraulic 360° Rotating Grading Bucket | 16° Mounting Angle | Chamfered Corners | Conical Body | 47.24" (1,200mm) | 0.37m³ | S40 Bracket | 16 MPa | 60 LPM | 237kg (522.5 lb)

The LANDYINDUS ME-GB6-S40-360° Hydraulic Rotating Grading Bucket delivers unmatched versatility for excavator operators who demand accuracy without sacrificing efficiency in confined and complex job site environments. The full 360° rotation capability allows the operator to position the bucket at any angle without repositioning the machine, dramatically reducing cycle times and improving overall productivity on landscaping, road preparation, drainage, and site leveling applications.

Three Engineering Features Working Together — 360° Rotation + 16° Mounting Angle + Chamfered Corners

This bucket combines three precision engineering features that each address a specific limitation of standard grading buckets:

360° Hydraulic Rotation — Any Grading Angle Without Repositioning the Machine

The full 360° rotation capability allows the operator to position the bucket at any angle without repositioning the machine. In confined urban sites, basement excavations, and indoor demolition environments where machine repositioning is restricted by walls, columns, or adjacent structures, this rotational freedom is the difference between a productive grading pass and a time-consuming repositioning cycle. Operating at 16 MPa with 60 LPM hydraulic flow, the rotation is smooth and responsive under load.

16° Mounting Angle — Bucket Base Parallel to Grade Surface Across Full Rotation Range

The precisely calculated 16° angle between the mounting bracket and the bucket bottom compensates for the geometric offset introduced by the rotation axis, ensuring the bucket base remains consistently parallel to the grading surface across the full rotation range. Without this compensation, rotating a standard 0° bucket creates a wedging effect — one side digs in, the other lifts — requiring multiple corrective passes. The 16° angle enables a flat, accurate grade finish in a single pass at any working angle.

Chamfered Corners — Indoor Demolition, Basement Excavation, Urban Construction

The chamfered corner design runs from the bottom up to the top edge on both sides, preventing the bucket from colliding with walls, foundations, and other structures during rotation. This makes the ME-GB6-S40-360° particularly well-suited for indoor demolition, basement excavation, and urban construction sites where working clearances are tight, and damage to surrounding structures must be avoided. The chamfered geometry eliminates the need for constant repositioning, giving operators greater confidence and control in restricted spaces.

Conical Body — Consistent Material Filling, Less Spillage

The conical body form promotes easier and more consistent material filling, guiding loose material into the bucket during grading passes rather than allowing it to spill over the sides — a significant advantage when skimming thin layers of material from the surface where the volume per pass is low relative to bucket capacity.

ME-GB6-S40-360° vs E-GB Tiltrotator Grading Bucket — Self-Rotating vs Tiltrotator-Mounted

Key Features

• 360° hydraulic rotation — grade at any angle without repositioning the machine
• 16° mounting angle — bucket base parallel to grade surface across full rotation range
• Chamfered corners — indoor demolition, basement excavation, urban confined spaces
• Conical body — consistent material filling, less spillage on thin-layer passes
• S40 bracket — broad excavator compatibility, direct fit
• 47.24" (1,200mm) | 0.37m³ | 237kg (522.5 lb)
• 16 MPa | 60 LPM | smooth responsive rotation under load
• Technical drawings available — custom configurations on request

Technical Drawing:

Specifications
