LANDYINDUS 64 Inch Heavy Duty Skid Steer Leveling Bar | Grading Scarifier | Dual Cutting Edge | ASV1100 Quick Attach

LANDYINDUS S-LB1600-HD-ASV1100 64 Inch Heavy Duty Skid Steer Leveling Bar | Grading Scarifier | Dual Cutting Edge | ASV1100 Quick Attach

The LANDYINDUS S-LB1600-HD Heavy Duty Skid Steer Leveling Bar is a versatile multi-function grading attachment designed for fast and efficient levelling of uneven ground, driveways, yards, mulch beds, gravel surfaces, and construction site final grades. At 64" wide with an 8mm main plate construction, this land leveller is built to handle demanding grading work across a wide range of soil and surface conditions without flexing or losing its straight edge under load.

Dual Cutting Edges Front & Rear — Grade on Both Forward & Reverse Pass, No Machine Repositioning

The front and rear of the attachment are both fitted with bucket cutting edges, allowing the operator to break up compacted ground, cut through hardened soil, and shave high spots on both the forward and reverse pass without repositioning the machine. This dual cutting edge design doubles the productive grading time per machine pass and significantly reduces the total number of passes needed to achieve a finished grade. A straight vertical levelling edge at the rear provides a clean, consistent finish stroke that leaves the surface flat and ready for seeding, paving, or final compaction.

Rear Scarifier Bar | 5 Adjustable Working Depths — Soft Loam to Hardened Clay, No Tool Changes

The rear-mounted scarifier bar is the standout feature of this levelling attachment, equipped with hooks that penetrate and break up compacted soil ahead of the levelling edge. The scarifier can be manually adjusted to five different working depths to match varying soil hardness and grading requirements, and can also be lifted completely out of the working position so the leveller operates as a pure grading bar without scarifying. This adjustability makes the attachment equally effective on soft loam, compacted gravel, and hardened clay without requiring tool changes or separate attachments for different soil conditions.

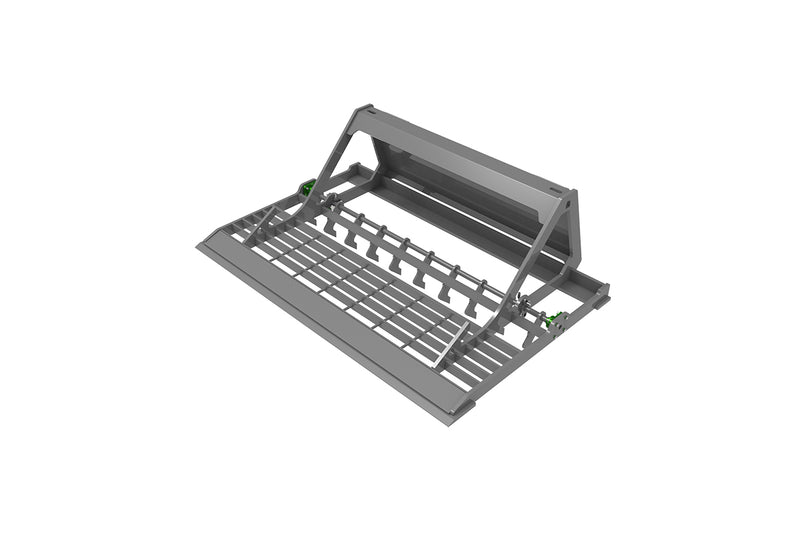

Front Grate + Hook Brackets — Collects Stones, Transports Buckets & Attachments Around the Job Site

A front-mounted grate collects stones and surface debris as the attachment moves forward — keeping the grading surface clean and preventing rocks from being pushed ahead and buried under the finished grade. Two hook-type brackets at the front allow the levelling bar to be used for transporting a bucket or other attachment around the job site, adding utility beyond its primary grading function.

5-in-1 Multi-Function Capability

• Forward grading — front cutting edge breaks & cuts compacted ground
• Reverse grading — rear cutting edge grades on the return pass
• Surface finishing — straight vertical rear edge delivers clean, flat finish stroke
• Scarifying — rear scarifier bar at 5 adjustable depths penetrates compacted soil
• Stone collection — front grate picks up rocks & debris during forward pass
• Attachment transport — front hook brackets carry buckets & attachments around site

Key Features

• Dual cutting edges front & rear — grade on both forward & reverse pass
• Rear scarifier bar — 5 adjustable working depths, liftable for pure grading mode
• Straight vertical rear levelling edge — clean, consistent finish stroke
• Front grate — collects stones & debris, prevents burial under finished grade
• Front hook brackets — transport buckets & attachments around job site
• 8mm main plate — no flexing or straight-edge loss under load
• 1,630×1,141×618mm | 222kg — compact, manoeuvrable multi-function tool
• ASV1100 quick attach — most skid steer loaders & compact track loaders

Technical Drawing:

Specifications
