LANDYINDUS 66" Skid Steer Sickle Bar Hedge Trimmer | 1-Pin Swivel Reverse Cutting | Spring Breakaway | 0–90° Hydraulic | 1,800mm Reach | MP1140

LANDYINDUS S-HC1680(66IN)-MP1140 66" Skid Steer Sickle Bar Hedge Trimmer | 1-Pin Swivel Reverse Cutting | Spring Breakaway | 0–90° Hydraulic Rotation | 1,800mm Reach Arm | MP1140 Universal Quick Attach

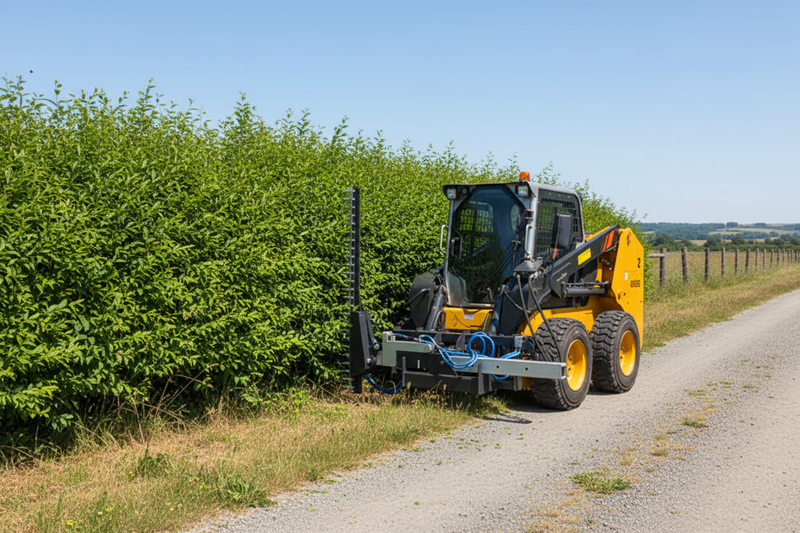

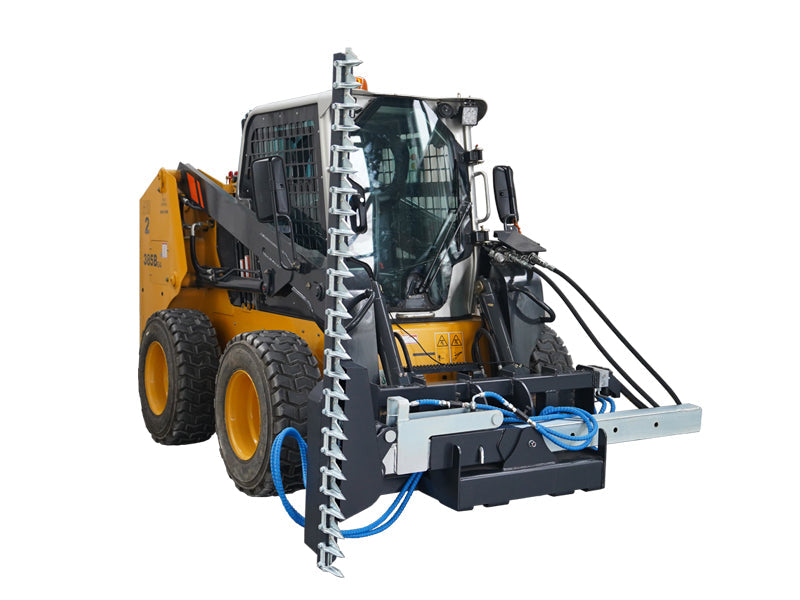

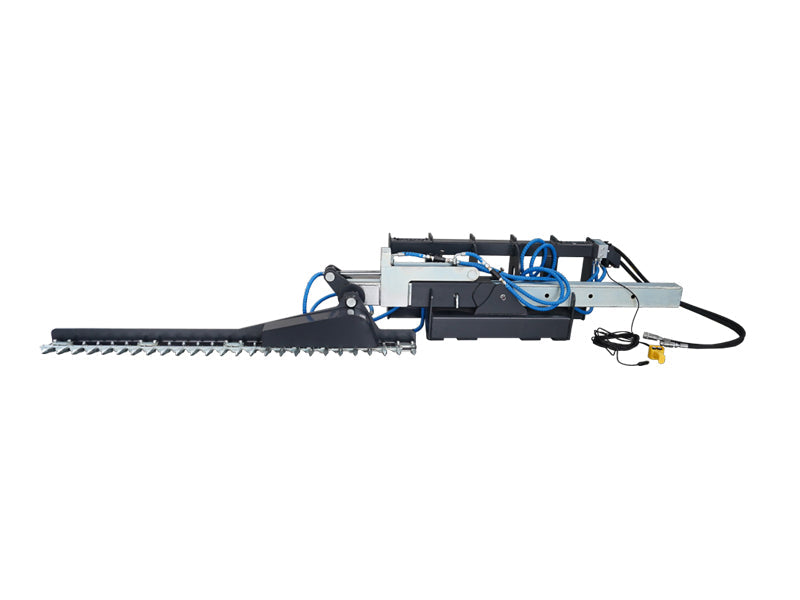

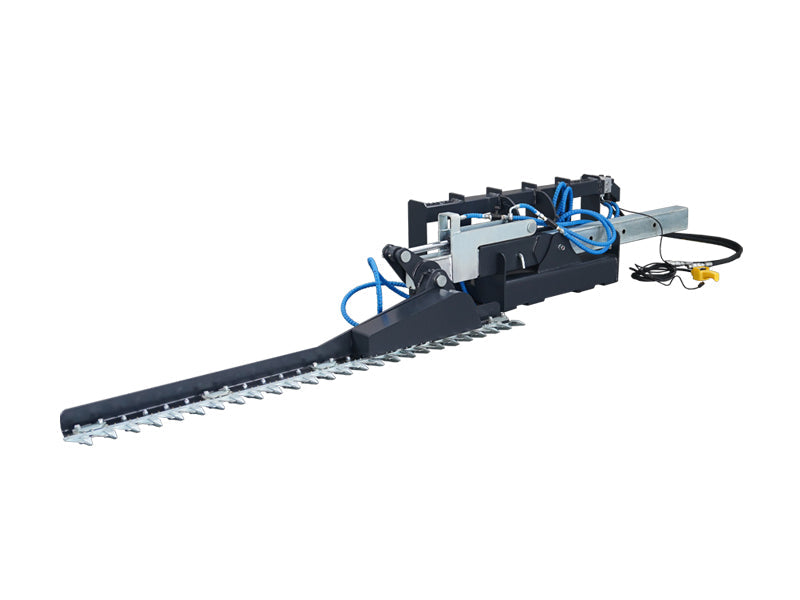

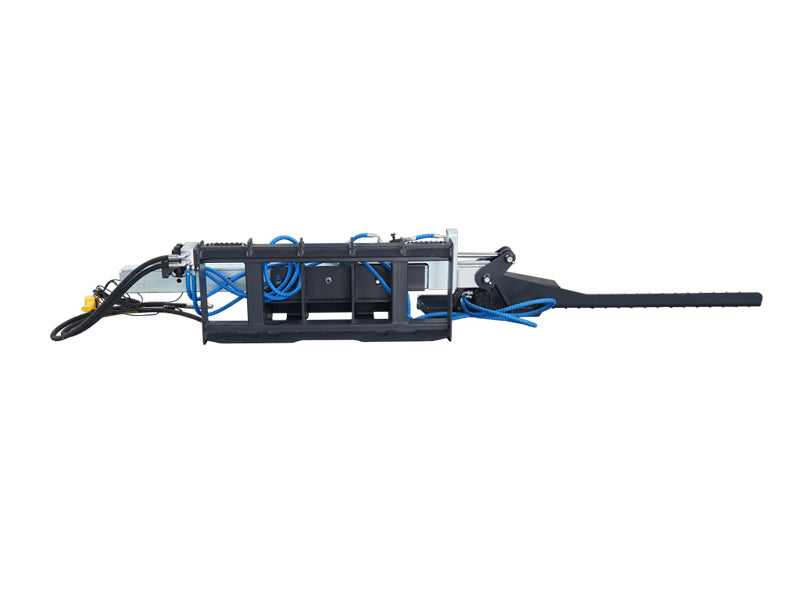

The LANDYINDUS S-HC1680 66" Skid Steer Sickle Bar Hedge Trimmer is a hydraulic-powered cutting system designed for operators who need to trim hedges, manage roadside vegetation, and maintain fence lines quickly and precisely from the skid steer cab. With a 66" (1,680mm) cutting bar, a 1,800mm reach arm, and 0–90° hydraulic rotation from horizontal to vertical, the attachment handles everything from low ground-level trimming to elevated hedge cutting in a single setup. Recommended for machines with 80 HP or above for optimal cutting performance.

1-Pin Swivel — Rotate Cutting Head to Opposite Side in Seconds, Cut Behind Fences & Into Corners Inaccessible to Standard Trimmers

The single-pin swivel mechanism is the defining feature that separates this skid steer hedge cutter from conventional fixed-head trimmers. By removing just one pin, the operator can rotate the entire cutting head to the opposite side of the arm — enabling the attachment to cut behind fences, reach into tight corners, and trim vegetation on the reverse face of hedgerows that would be completely inaccessible to standard hedge cutters. This reverse-cutting capability is particularly valuable for maintaining fence lines on both sides in a single pass and for trimming into corners where repositioning the machine would otherwise be required.

Spring Breakaway System — Auto-Deflects on Obstacle Contact, Springs Back Instantly, No Blade Damage or Downtime

The spring breakaway system provides automatic protection for the cutting head when it contacts an unexpected obstacle such as a fence post, hidden branch, or buried debris — the head deflects on impact and springs back to the cutting position immediately, preventing the blade damage and downtime that fixed-head cutters suffer in the same situation. This automatic protection is critical for fence line and roadside vegetation work where hidden obstacles are common.

0–90° Hydraulic Rotation | 1,800mm Reach Arm — Ground-Level Trimming to Elevated Hedge Cutting in a Single Setup

The 0–90° hydraulic rotation from horizontal to vertical allows the operator to transition from ground-level grass and vegetation trimming to elevated hedge cutting without changing attachments or adjusting the machine position. The 1,800mm reach arm extends the cutting bar well beyond the machine footprint — reaching over fences, into ditches, and along elevated hedge faces that would be unreachable with a direct-mount cutter. Two hydraulic hoses connect the cutting bar to the loader’s auxiliary circuit, with the extra auxiliary port controlling the hydraulic ram for horizontal-to-vertical adjustment.

Straight-Ahead Cutting | Responsive Steering — Neat, Even Cuts Along Full Hedge & Fence Line Length

The straight-ahead cutting orientation combined with the skid steer’s responsive steering makes it easy to achieve a neat, even cut along the full length of any hedge or fence line — without the drift and correction required by offset-head designs. The 66" cutting bar covers a wide swath in each pass, reducing the number of passes needed to trim a full hedge face.

Key Features

• 1-pin swivel — rotate head to opposite side, cut behind fences & into corners inaccessible to standard trimmers
• Reverse-side cutting — maintain fence lines both sides in a single pass
• Spring breakaway — auto-deflects on obstacle contact, springs back instantly, no blade damage
• 0–90° hydraulic rotation — ground-level trimming to elevated hedge cutting, single setup
• 1,800mm reach arm — over fences, into ditches & elevated hedge faces

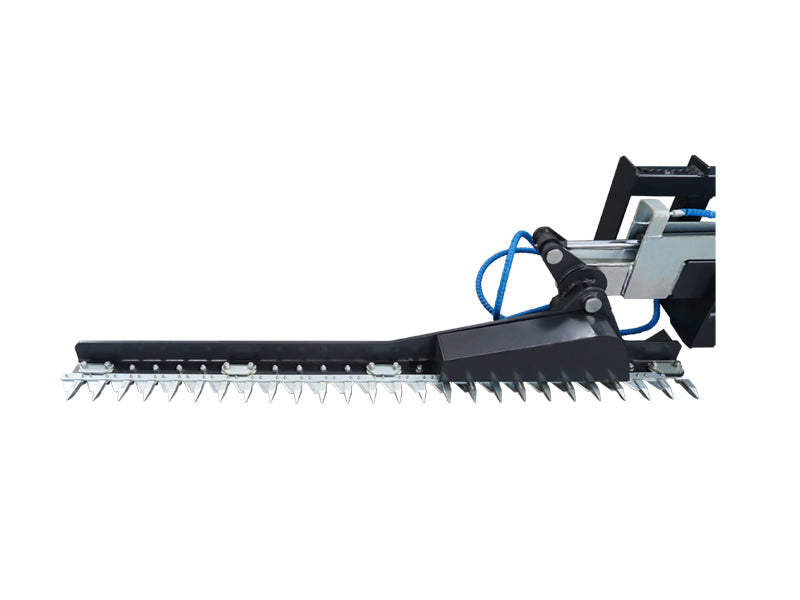

• 66" (1,680mm) cutting bar — wide swath, fewer passes per hedge face
• Straight-ahead cutting — neat, even cuts along full hedge & fence line length
• 2 hydraulic hoses — auxiliary circuit + extra port for horizontal-vertical ram
• 16 MPa | 60 LPM | 300kg | 3643×703×536mm
• ≥80 HP machine recommended | Universal MP1140 quick attach

Technical Drawing:

Specifications
