LANDYINDUS 71" Skid Steer Pallet Fork Grapple | Dual Cylinder | 2,800kg SWL | Pipe Log & Pallet Handling | MP1140

LANDYINDUS S-PPFG1800(71IN)-MP1140 71" Skid Steer Pallet Fork Grapple | Dual Cylinder | 2,800kg SWL | Pipe, Log & Pallet Handling | MP1140 Universal Quick Attach

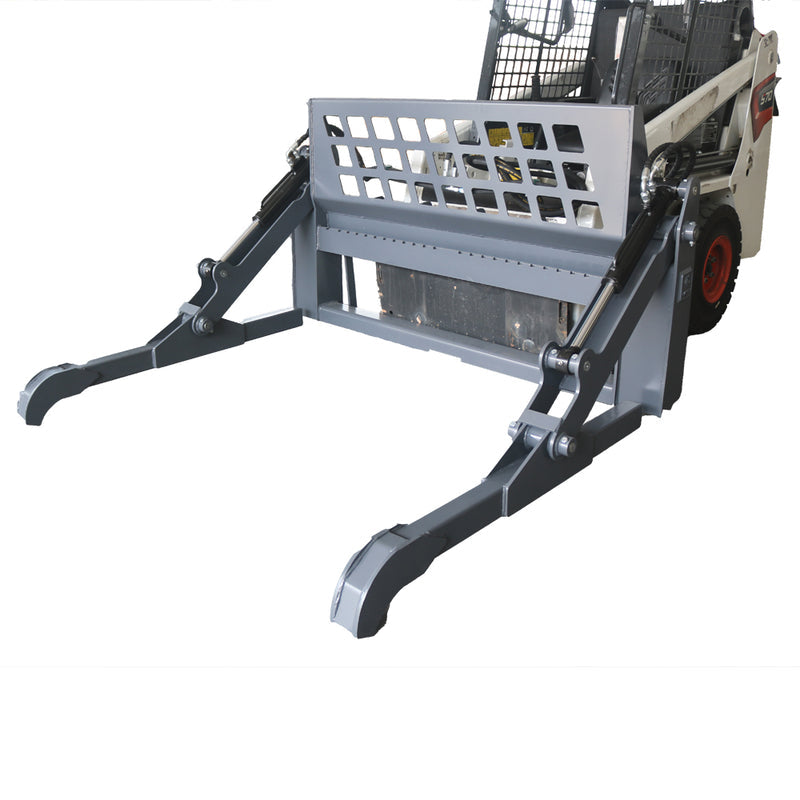

The LANDYINDUS S-PPFG1800 Skid Steer Pallet Fork Grapple is engineered for operators who need a single, versatile tool to handle palletised loads, pipes, logs, and irregularly shaped material on the job site. Featuring two independent hydraulic cylinders, the clamp arms open to near-vertical — giving you a wide, secure grip on round stock and bundled pipe that standard pallet forks simply cannot manage.

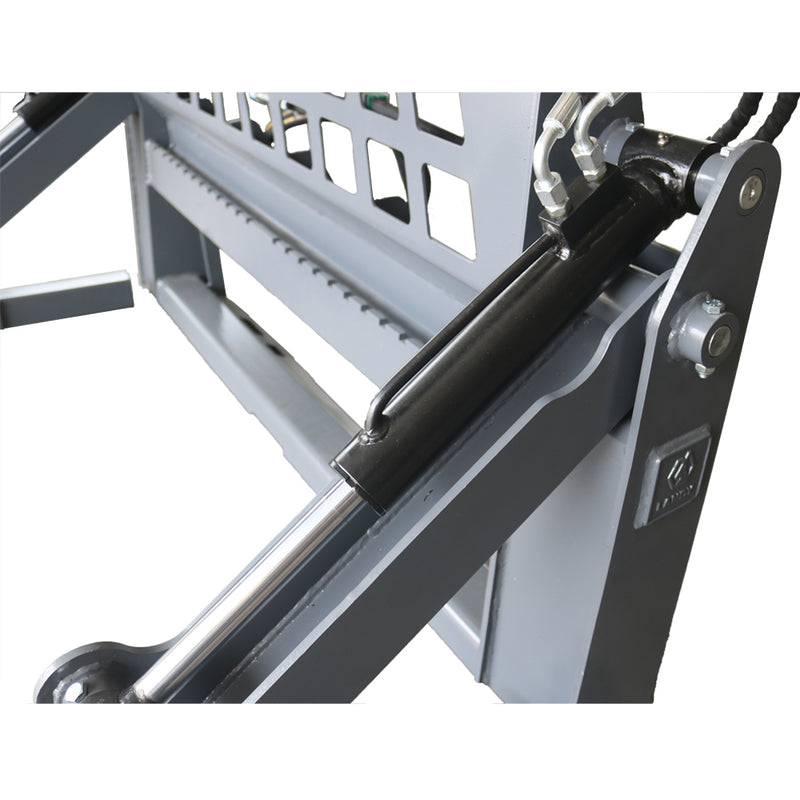

Dual Independent Hydraulic Cylinders — Even Clamping Pressure on Uneven & Off-Centre Loads Throughout the Lift & Carry Cycle

The dual-cylinder design ensures each arm applies even clamping pressure independently, so uneven or off-centre loads stay stable throughout the lift and carry cycle. Arms open to near-vertical with a 0–2,046mm opening range — accommodating round stock, bundled pipe, logs, and irregularly shaped material that standard fixed pallet forks cannot grip securely. This independent clamping action is what separates a fork grapple from a standard pallet fork when handling non-palletised or asymmetric loads.

2,800kg (6,170 lbs) SWL | 71" (1,760mm) Wide — Capacity & Reach for Contractors, Farms, Landscaping & Industrial Operations

Built to a 2,800kg (6,170 lbs) safe working load and spanning 71" (1,760mm) wide, this heavy-duty pipe pallet fork grapple delivers the capacity and reach demanded by contractors, farms, landscaping crews, and industrial material handling operations. Heavy-gauge steel construction and reinforced tines ensure long service life even under continuous heavy-use conditions.

16 MPa | 60 LPM | Universal MP1140 Quick Attach — Standard Skid Steer Hydraulics, Fast Tool-Free Installation

With an operating pressure of 16 MPa and a hydraulic flow requirement of 60 LPM, the S-PPFG1800 integrates seamlessly with most standard skid steer hydraulic systems. The attachment mounts to any skid steer loader via universal MP1140 quick-attach plate — making installation fast and tool-free. At 275kg with overall dimensions of 1,760 × 1,452 × 1,048mm.

Pallet Fork + Grapple in One — Replace Two Separate Attachments with a Single Tool

The fork grapple combines the load-bearing tine structure of a pallet fork with the secure clamping capability of a grapple — replacing two separate attachments with a single tool. Handle standard palletised loads on the tines, then engage the grapple arms to secure pipes, logs, bales, or bundled material without switching attachments or returning to the yard.

Key Features

• Dual independent hydraulic cylinders — even clamping on uneven & off-centre loads
• 0–2,046mm opening range — near-vertical arm opening for round stock, pipe & logs
• 2,800kg (6,170 lbs) SWL — contractors, farms, landscaping & industrial operations
• 71" (1,760mm) wide — maximum reach for wide & bundled loads
• Pallet fork + grapple in one — replaces two separate attachments
• Heavy-gauge steel & reinforced tines — continuous heavy-use service life
• 16 MPa | 60 LPM — standard skid steer auxiliary hydraulics
• 1,760×1,452×1,048mm | 275kg — heavy-duty structural dimensions
• Universal MP1140 quick attach — fast tool-free installation on any skid steer

Technical Drawing:

Specifications
