LANDYINDUS 78" Hydraulic 4-in-1 Bucket | 1,980mm | 0.33m³ | 80° Rotation | 12mm+20mm Steel | Euro Quick Attach | Tractor Front Loader | T-4IN1B

LANDYINDUS T-4IN1B1980(78IN)-EURO 78" Hydraulic 4-in-1 Bucket | 1,980mm Working Width | 0.33m³ Volume | 80° Hydraulic Rotation | 12mm Main Plate + 20mm Base Floor | Clamshell Jaw | Euro Quick Attach | Tractor Front Loader

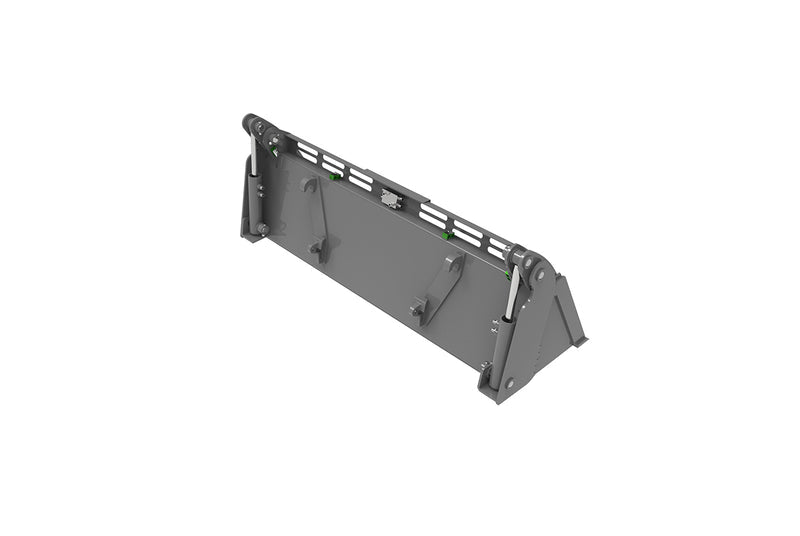

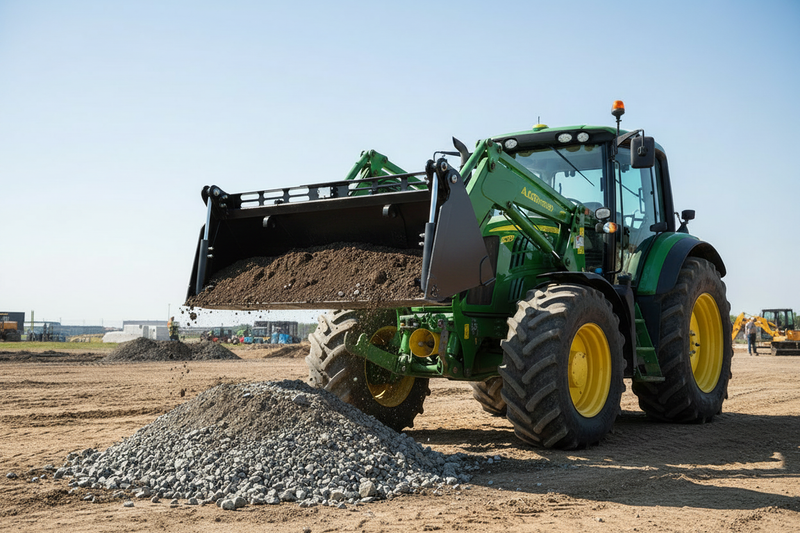

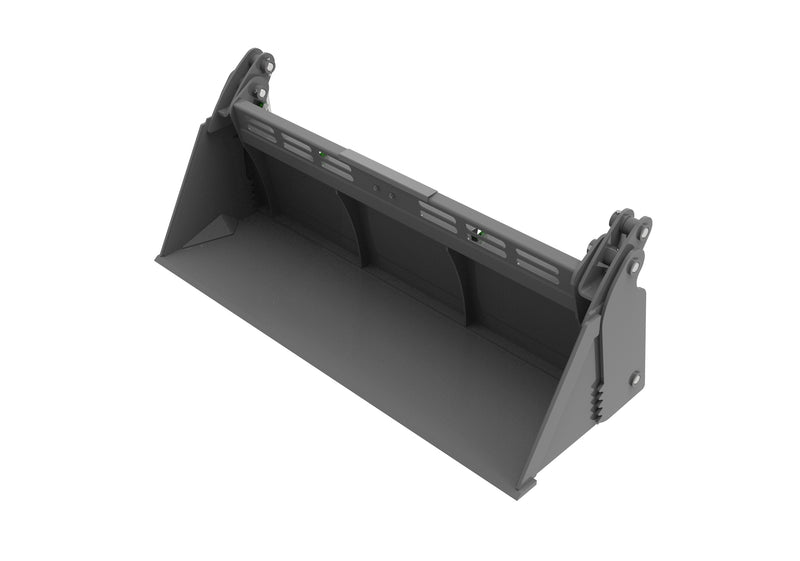

The LANDYINDUS T-4IN1B 78" Hydraulic 4-in-1 Bucket combines dumping, loading, digging, leveling, grappling, and dozing functions in a single Euro quick attach attachment for tractor front loaders. With a working width of 1,980mm and a bucket volume of 0.33 cubic meters, this multi-purpose tractor bucket is engineered for construction sites, agricultural operations, landscaping projects, and general material handling tasks where a single versatile attachment needs to replace multiple dedicated implements.

Hydraulic Clamshell Jaw — Switch Between Bucket and Grapple Mode from the Cab, No Attachment Change

The hydraulic clamshell jaw opens and closes independently of the bucket tilt, allowing the operator to switch between standard bucket operation and grapple mode without leaving the cab or changing attachments. This independent jaw operation is the defining feature of the 4-in-1 design — enabling the same attachment to load loose material as a standard bucket, then immediately grip and carry irregular loads as a grapple, without any reconfiguration.

80° Hydraulic Rotation — Precise Material Placement, Confined Spaces, No Tractor Repositioning

The 80° hydraulic rotation angle gives the operator precise control over material placement, enabling accurate dumping into trailers, hoppers, and windrows at a wide range of angles without repositioning the tractor. This rotation capability is particularly valuable in confined working environments where tractor maneuverability is limited, allowing the operator to direct material flow precisely rather than relying on tractor movement alone.

12mm Main Plate + 20mm High-Tensile Base Floor — Exceptional Impact and Abrasion Resistance

The bucket body is constructed with a 12mm main plate thickness and a high-tensile 20mm base steel floor, providing exceptional resistance to impact, abrasion, and deformation under heavy digging and prying loads. The reinforced floor is specifically engineered to withstand the concentrated stress of repeated ground engagement during digging and leveling operations, extending the service life of the bucket significantly compared to standard-gauge alternatives.

Optional Bolt-On Front Cutting Edge — Enhanced Soil Penetration, No Welding, Fast Replacement

An optional bolt-on front cutting edge is available for applications requiring enhanced soil penetration or edge replacement without welding, reducing maintenance downtime and extending the operational life of the cutting surface. Bolt-on replacement eliminates the workshop time and cost associated with welded cutting edge replacement on conventional buckets.

16 MPa | 60 LPM | 388kg | Euro Quick Attach — Wide Tractor Compatibility

The hydraulic system requires an operating pressure of 16 MPa and a flow rate of 60 LPM, compatible with the auxiliary hydraulic circuits of most modern agricultural and construction tractors. At 388kg, the T-4IN1B balances structural strength with front loader compatibility, ensuring stable operation at full working load. Euro quick attach integration means direct fitment to a wide range of tractor models without custom adapters.

Six Functions in One Attachment

• Loading — standard bucket operation for loose material
• Dumping — 80° rotation for precise placement into trailers and hoppers
• Digging — 20mm reinforced base floor for ground engagement
• Leveling — flat base profile for grading and spreading
• Grappling — hydraulic clamshell jaw for irregular and bulky loads
• Dozing — push and grade material across the work surface

Key Features

• Hydraulic clamshell jaw — bucket and grapple mode from cab, no attachment change
• 80° hydraulic rotation — precise placement, confined spaces, no tractor repositioning
• 12mm main plate + 20mm high-tensile base floor — impact and abrasion resistance
• Optional bolt-on cutting edge — no welding, fast field replacement
• 1,980mm working width | 0.33m³ volume
• 16 MPa | 60 LPM | 388kg
• Euro quick attach — wide tractor compatibility, no adapters
• Construction, agriculture, landscaping and general material handling

Technical Drawing:

Specifications
