LANDYINDUS 84" Skid Steer 6-Way Hydraulic Dozer Blade & Snow Pusher | ±30° Angle | ±10° Tilt | Deep-Dish Moldboard | 8mm Plate | MP1140

LANDYINDUS S-HTSBE2130(84IN)-MP1140 84" Skid Steer 6-Way Hydraulic Dozer Blade & Snow Pusher | ±30° Angle + ±10° Tilt | Deep-Dish Rolled Moldboard | 8mm Plate | Shock-Absorbing Springs | MP1140 Universal Quick Attach

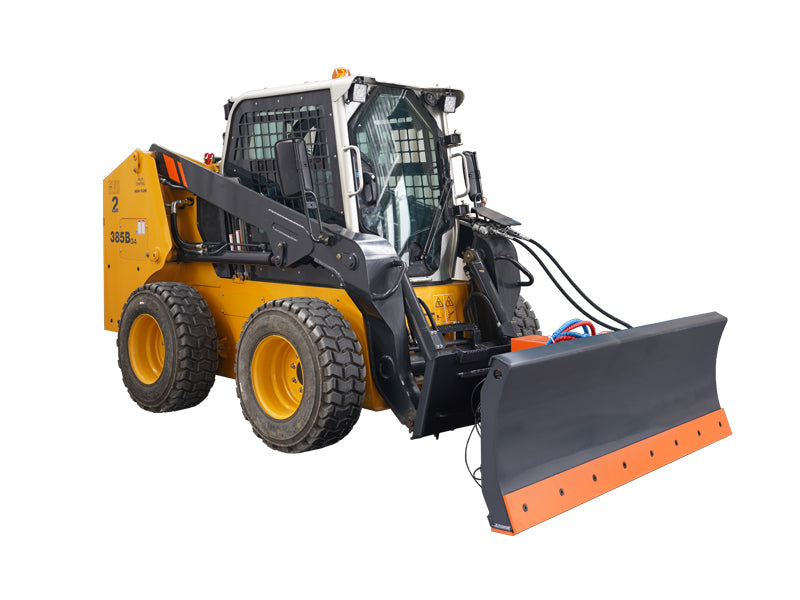

The LANDYINDUS S-HTSBE2130 84" Skid Steer 6-Way Hydraulic Dozer Blade is the most versatile blade in the LANDYINDUS lineup, combining full snow pusher capability with heavy-duty dozer blade performance in a single 84" (2,130mm) attachment. Featuring 6-way hydraulic control — lift, curl, left angle, right angle, upward tilt, and downward tilt — the operator can precisely position the blade for any snow removal or earthmoving task without leaving the cab.

6-Way Hydraulic Control — Lift, Curl, Left Angle, Right Angle, Upward Tilt, Downward Tilt — Full Blade Positioning from the Cab

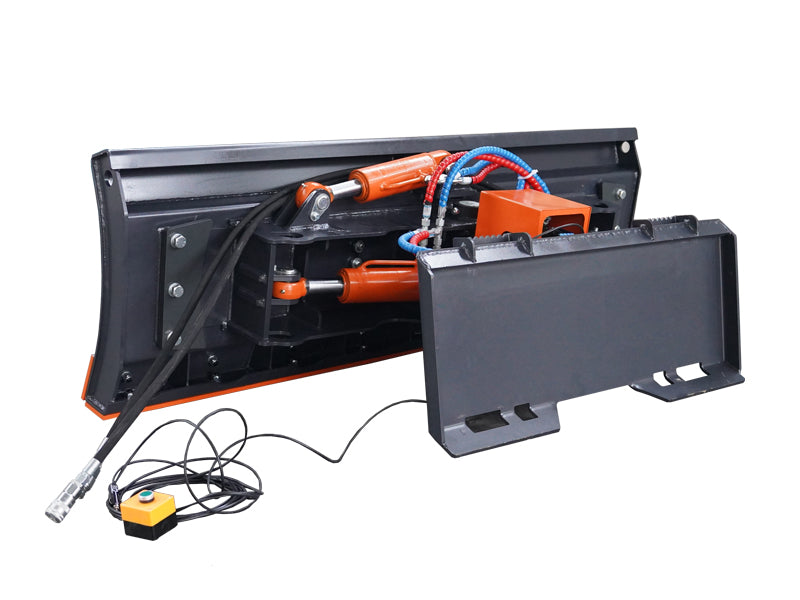

The 6-way hydraulic control system gives the operator complete blade positioning authority from the cab across six independent axes:

• Lift — raise and lower the blade for transport and cutting depth
• Curl — adjust blade face angle for material retention and rollover
• Left / Right Angle (±30°) — redirect snow or material flow left or right on the fly
• Upward / Downward Tilt (±10°) — fine-tune ground contact angle for uneven terrain, sloped surfaces & precision grading

This combination of independent angle and tilt control is what separates this 6-way blade from standard angle-only blades — delivering blade positioning precision that significantly reduces the number of passes needed to achieve a clean, level finish on both snow-covered lots and earthwork job sites.

±30° Angle + ±10° Tilt — Independent Control on the Same Plane, Precision Impossible with Angle-Only Blades

The ±30-degree hydraulic angle rotation allows the operator to redirect snow or material flow left or right on the fly. The additional ±10-degree hydraulic tilt on the same plane enables fine-tuning of the blade’s ground contact angle for uneven terrain, sloped surfaces, and precision grading work. Together, these two independent axes deliver a level of blade positioning precision that standard angle-only blades cannot achieve — reducing passes, improving finish quality, and handling complex terrain that would defeat a simpler blade.

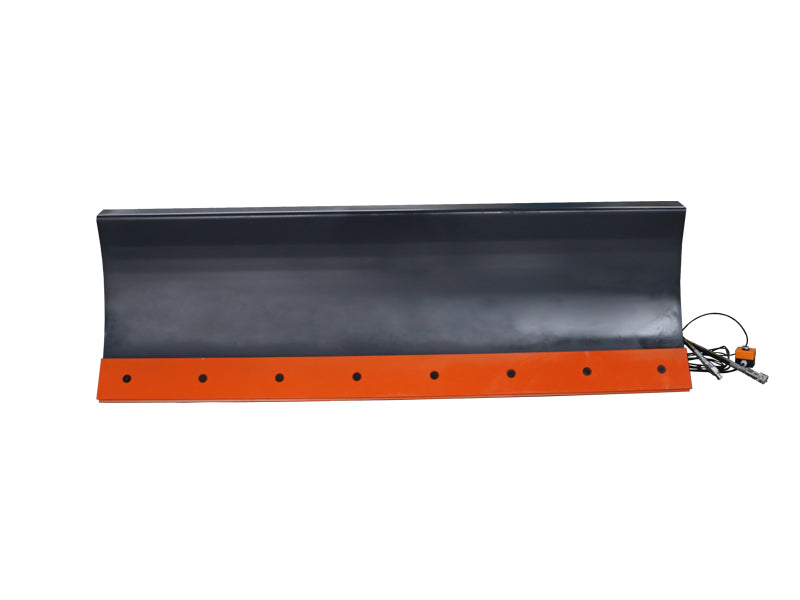

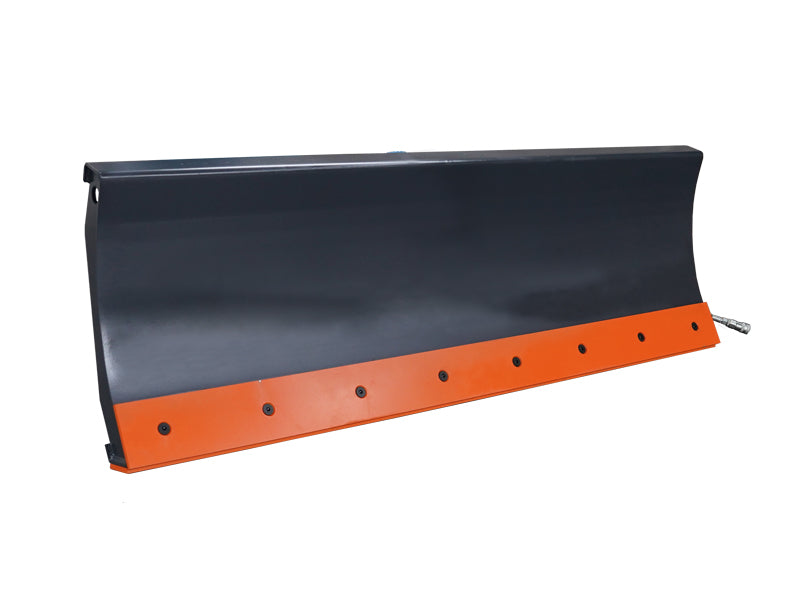

Deep-Dish Rolled Moldboard — Maximum Material Volume per Pass, Efficient Soil Churning & Snow Rollover

The deep-dish rolled moldboard design maximises the volume of material the blade can carry and churn in a single pass, boosting soil handling efficiency on dozer applications while also improving snow rollover and containment during winter operations. The deep dish profile lifts and rolls material continuously rather than simply pushing it flat — delivering cleaner, more complete material transfer to the pile with less spillback on each pass.

8mm Main Plate | Shock-Absorbing Springs | 584kg — Heavy-Duty Construction, Obstacle Protection

Reinforced steel construction with an 8mm thick main plate ensures long service life under continuous heavy-duty use — double the plate thickness of the standard S-SBE angle blade (4mm). Integrated shock-absorbing springs protect the blade and machine frame when the cutting edge contacts hidden obstacles or frozen ground — reducing impact damage risk during aggressive dozing and snow clearing operations. At 584kg with overall dimensions of 2,130 × 973 × 704mm.

S-HTSBE 6-Way vs S-SBE Angle-Only — When to Choose the 6-Way Upgrade

Key Features

• 6-way hydraulic control — lift, curl, ±30° angle, ±10° tilt, all cab-controlled
• ±30° angle + ±10° independent tilt — precision impossible with angle-only blades
• Deep-dish rolled moldboard — maximum material volume, efficient soil churning & snow rollover
• 8mm main plate — 2× thickness of standard angle blade, continuous heavy-duty use
• Integrated shock-absorbing springs — blade & frame protection from hidden obstacles
• 84" (2,130mm) working width | 584kg
• 16 MPa | 60 LPM — standard skid steer auxiliary hydraulics
• Universal MP1140 quick attach — fast tool-free installation on any skid steer
• Winter snow removal + year-round grading, backfilling & material pushing

Technical Drawing:

Specifications
