LANDYINDUS Automatic Single Drum Forklift Lifter | 500kg SWL | 205L Steel Drum | Drive-Forward Engagement — No Dismounting | Self-Tightening Load Response | Galvanized Finish | 165×65mm Fork Pockets | Chemical, Warehouse & Food Processing | F-SDL1

LANDYINDUS F-SDL1 Automatic Single Drum Forklift Lifter | 500kg SWL | 205L Steel Drum | Drive-Forward Engagement — Fully Hands-Free, No Dismounting | Self-Tightening Load Response — Heavier Load, Stronger Grip | Galvanized Finish | 165×65mm Fork Pockets

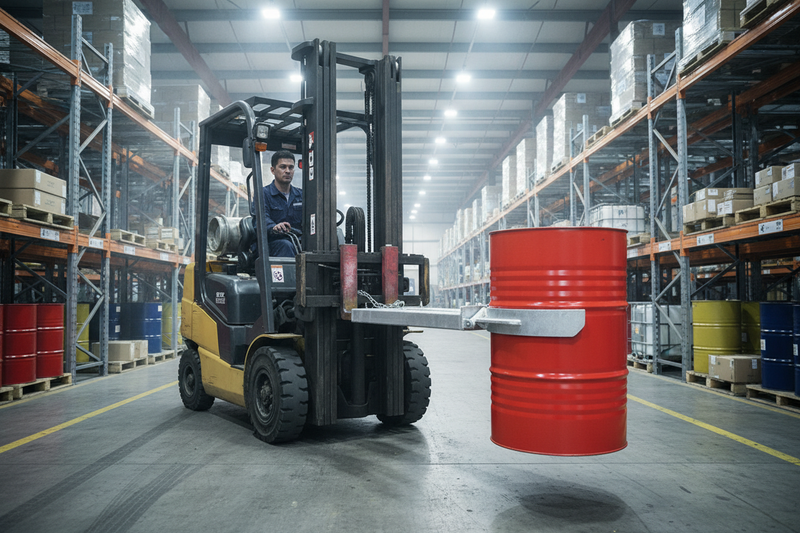

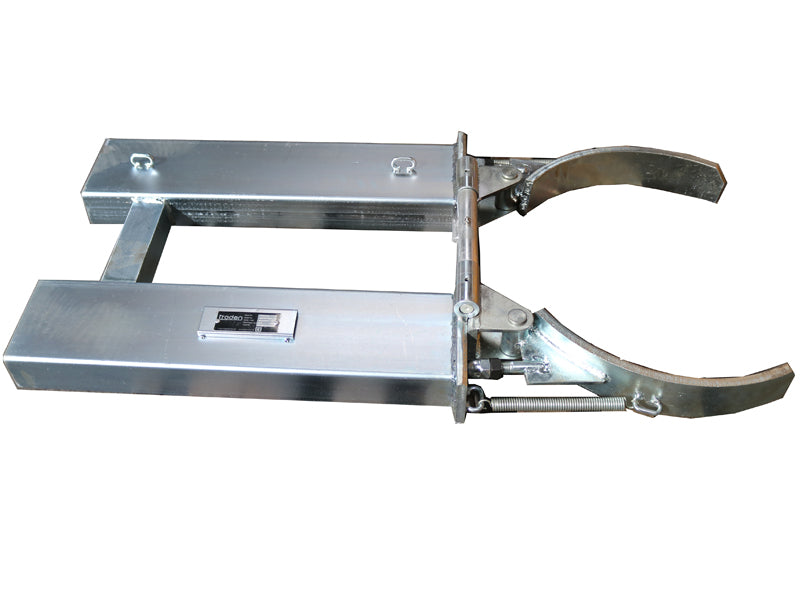

The LANDYINDUS F-SDL1 Automatic Single Drum Forklift Lifter is a heavy-duty galvanized steel drum handling attachment engineered for fast, safe, and fully hands-free lifting and transport of standard 205-litre steel drums using any compatible forklift. The F-SDL1 eliminates manual drum handling entirely — a single forklift operator can grip, lift, transport, and place 205-litre steel drums with complete precision without ever leaving the driver’s seat.

Drive-Forward Engagement — Fully Automatic, No Manual Adjustment, No Dismounting

The fully automatic clamping mechanism is the defining operational advantage of the F-SDL1:

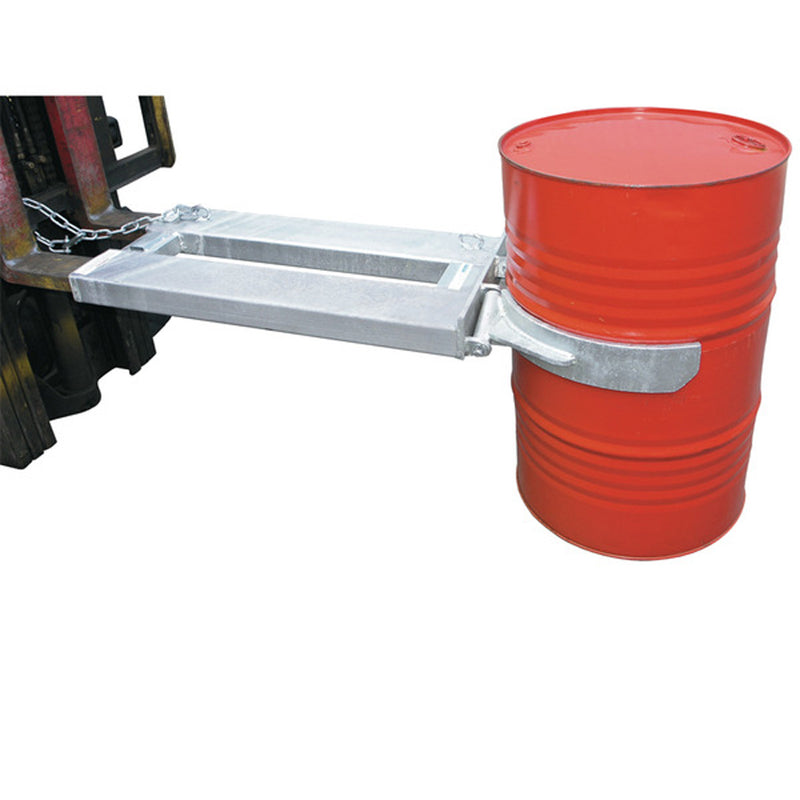

• Engage: drive the forklift forward — the adjustable support arms push against the drum centre, automatically wrap around the drum body, and lock securely under the rolling hoop as the forks are raised. One forward motion. Done.
• Transport: lift, travel, and place with full grip security throughout.
• Release: lower the drum to ground level and reverse — the arms disengage automatically, leaving the drum precisely placed. No manual intervention required.

The entire engage-lift-place-release cycle is completed from the forklift cab with no secondary securing steps, no manual adjustment, and no dismounting. This makes the F-SDL1 one of the fastest and most operator-friendly drum handling solutions available for standard 205-litre steel drum operations.

Self-Tightening Load Response — Heavier Drum, Stronger Grip

A unique self-tightening load response mechanism further enhances grip security during transport. As the weight of the drum increases, the downward force on the clamping arms, and the grip automatically tightens in proportion to the load — meaning the heavier the drum, the more secure the hold. This self-reinforcing clamping action provides:

• Continuous grip assurance during travel over uneven ground, dock plates, and rough yard surfaces
• No slippage risk under dynamic load conditions — unlike fixed-force clamping systems that maintain constant grip regardless of load weight
• Mechanical interlock under rolling hoop: once engaged, the arms lock under the drum’s rolling hoop — a mechanical interlock that cannot be accidentally released during lifting or transport

F-SDL1 vs F-BGN1 vs F-BGN2 — Drum Lifter Series Comparison

Galvanized Finish — Long-Term Corrosion Resistance

Finished with a galvanized surface treatment, the F-SDL1 provides durable protection against rust and surface degradation in humid warehouses, outdoor storage yards, chemical handling environments, and corrosive industrial conditions. Galvanized coating delivers superior long-term corrosion resistance compared to standard paint finishes, reducing maintenance costs and extending service life across years of intensive use.

Adjustable Support Arms — Full Range of 205L Steel Drum Profiles

The adjustable support arms accommodate variations in drum diameter and body profile, ensuring secure clamping across the full range of standard 205-litre steel drum manufacturers and specifications. Note: the F-SDL1 requires a rolling hoop on the drum body for the automatic lock-under-hoop mechanism — it is designed for steel drums, which universally feature rolling hoops. Plastic drums without rolling hoops are not compatible — use F-BGN1 or F-BGN2 for plastic drum handling.

Applications

• Chemical storage facilities — hands-free cycle, galvanized corrosion resistance, no contamination risk
• Warehouses & distribution centres — fastest drum handling cycle, auto-engage from cab
• Manufacturing plants — steel drum inventory, self-tightening grip on varied surfaces
• Food processing — hands-free, no fluid contamination (no hydraulics)
• Light to medium industrial operations — 500kg SWL, 66kg lightweight attachment

Key Features

• Drive-forward automatic engagement — no dismounting, no manual steps, single forward motion
• Self-tightening load response — grip increases proportionally with drum weight
• Mechanical hoop lock — cannot accidentally disengage during lift or transport
• Automatic release — lower and reverse, drum placed precisely without manual intervention
• Galvanized finish — superior corrosion resistance
• 500kg SWL | 165×65mm fork pockets | 400mm centres | 1,340mm load centre
• 66kg — lightest in the drum lifter series

Specifications

Technical Drawing
