LANDYINDUS Bale Spear Frame | John Deere Hook & Pin | 2,000kg SWL | Class 2A | φ45×1,250mm Main + 2×φ40×432mm Stabilizers | Round & Square Bales | T-JDFRLD46

LANDYINDUS T-JDFRLD46 Bale Spear Frame | John Deere Hook & Pin | 2,000kg SWL | Class 2A | φ45×1,250mm Main Spear | 2×φ40×432mm Stabilizer Spears | Round & Square Bales | 94kg

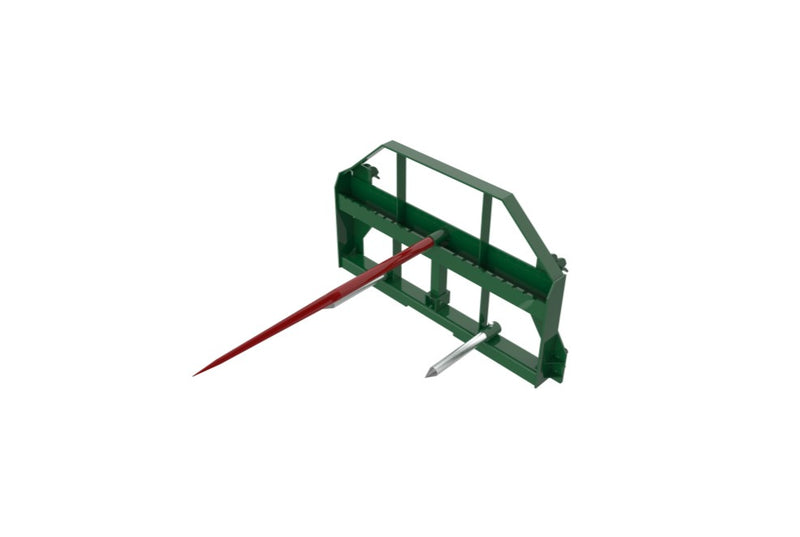

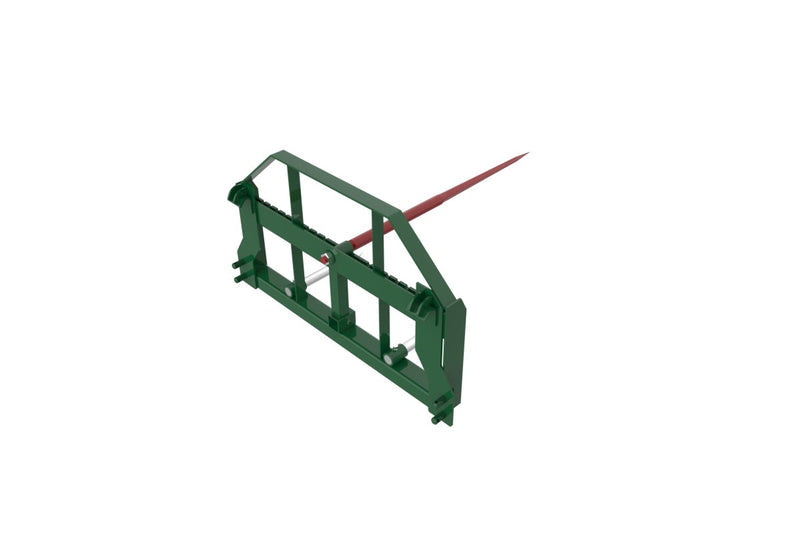

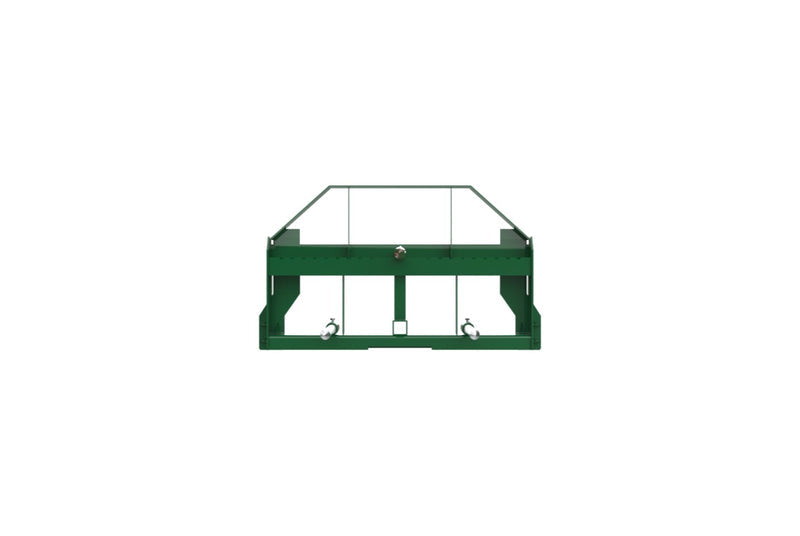

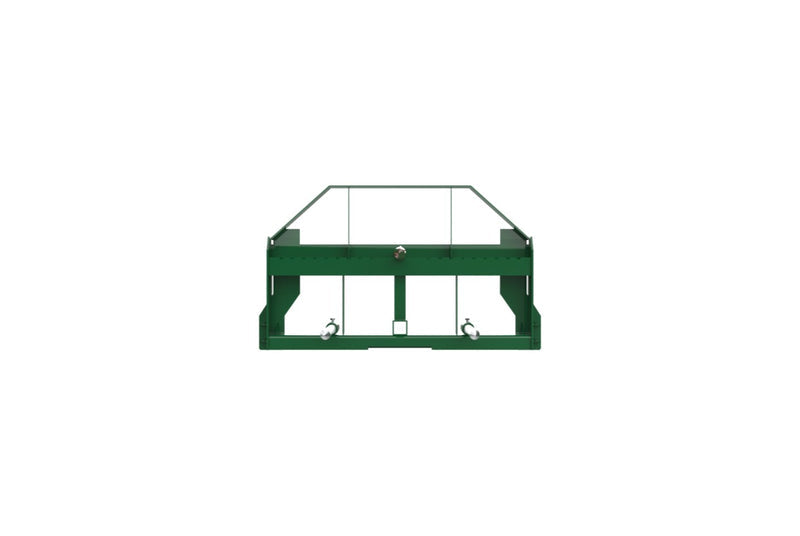

The LANDYINDUS T-JDFRLD46 Bale Spear Attachment is a purpose-built hay handling frame designed for direct compatibility with John Deere front loaders using the hook and pin connection system. Rated to a safe working load of 2,000kg under Class 2A standards, this bale spear frame gives John Deere tractor operators a reliable, heavy-duty solution for lifting, carrying, and stacking round bales and square bales without the need for adapters or third-party mounting hardware.

φ45×1,250mm Main Spear — 49" Penetration Depth to Center and Secure Large Round Bales

The frame is equipped with a main spear measuring φ45mm in diameter and 1,250mm (approximately 49 inches) in length, providing the penetration depth needed to center and secure large round bales during lifting. The φ45mm diameter is the standard industrial bale spear specification, compatible with most bale spear sleeve receivers if used as a standalone spear.

2×φ40×432mm Stabilizer Spears — Prevent Bale Rotation and Lateral Movement During Transport

Two stabilizer spears, each φ40mm in diameter and 432mm in length, are positioned on either side of the main spear to prevent bale rotation and lateral movement during transport, keeping the load stable and controlled even when moving across uneven ground or at loader height. Without stabilizer spears, large round bales can rotate on the main spear during transport — a significant safety risk when moving at speed or on slopes.

John Deere Hook & Pin — Tool-Free Install and Removal, Switch Between Attachments in the Same Session

The hook and pin connection is engineered to match the mounting geometry of John Deere loader quick-attach systems, allowing the bale spear frame to be installed and removed quickly without tools. This makes it practical to switch between the bale spear and other loader attachments during the same work session, reducing downtime when transitioning between hay handling and other farm tasks.

Also Available in Euro, SMS, Big BM & Other Brackets — Not John Deere? Contact Us

While the standard configuration is designed for John Deere hook and pin loaders, this bale spear frame is also available with alternative bracket types including Euro, SMS Trima, Big BM, and other mounting systems on request. Contact us with your tractor model and loader details and we will confirm the right fit before your order is processed.

T-JDFRLD46 vs T-2A-HS — Dedicated Bale Spear vs Pallet Fork + Hay Spear Combo

Key Features

• φ45×1,250mm main spear — 49" penetration, large round bale centering
• 2×φ40×432mm stabilizer spears — anti-rotation, lateral stability during transport
• John Deere hook & pin — tool-free install/removal, quick attachment swap
• 2,000kg SWL | Class 2A | 94kg | 1,297×1,154×738mm
• Euro, SMS, Big BM & other brackets available on request
• Round bales and square bales

Technical Drawing:

Specifications
