Product Overview
Looking for a secure, hands-free way to fill bulk bags? The LANDYINDUS Bulk Bag Filling Frame delivers heavy-duty stability and 4-position height adjustability for seamless high-volume packaging.

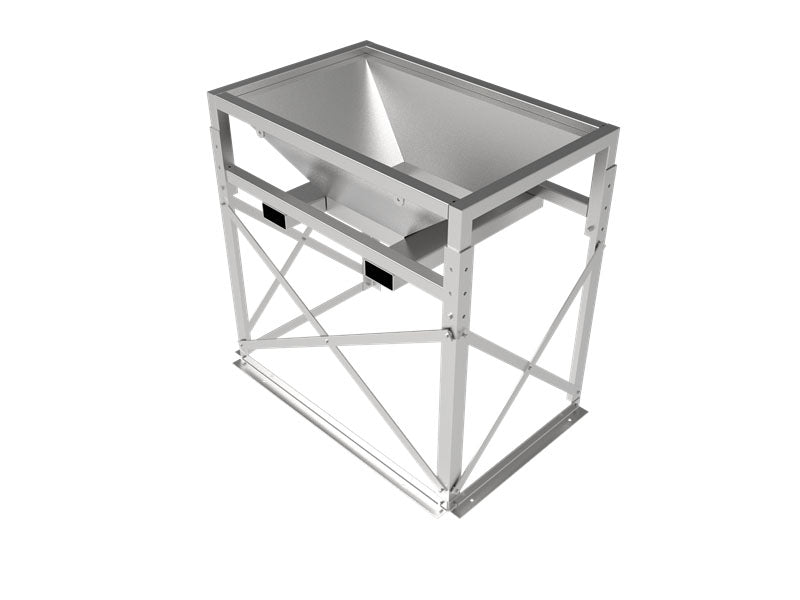

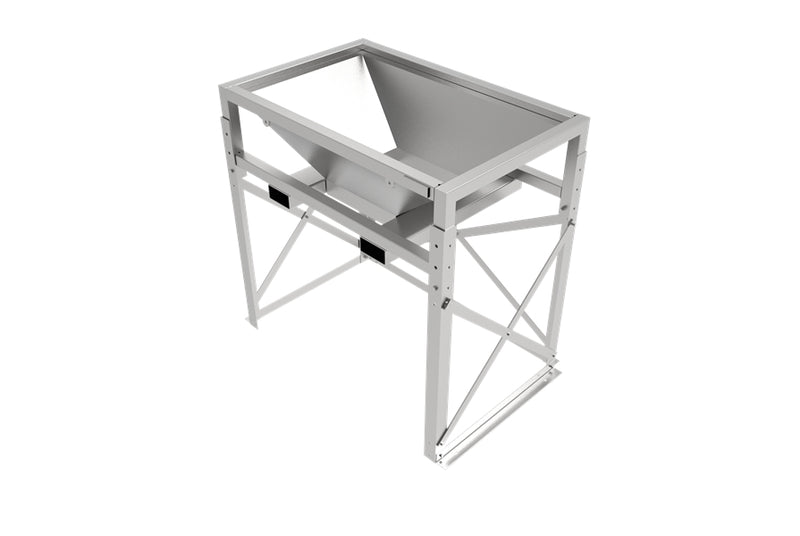

The LANDYINDUS Bulk Bag Filling Frame is a heavy-duty FIBC filling station engineered for the safe, efficient filling of jumbo bulk bags with a Working Load Limit (WLL) of 2000kg (2 Ton). Designed for industrial, agricultural, and construction material operations, this filling frame provides a stable, hands-free solution for filling free-flowing bulk products directly into standard FIBC bulk bags.
Core Selling Points
- 4-Position Height Adjustment: Adjustable from 1800mm to 2050mm across 4 settings to easily adapt to different conveyor heights, hopper clearances, and bag sizes.
- Heavy-Duty 2000kg Capacity: Built from heavy-gauge structural steel to securely support large FIBC bulk bags up to 2 tons under continuous industrial loading.
- Secure Bag Suspension: Features 4 heavy-duty corner hooks designed to hold standard FIBC loop straps fully open and extended, maximizing fill volume and preventing bag collapse.
- Forklift & Crane Compatible: Equipped with integrated fork pockets (190×90mm, 800mm centres) for easy relocation and efficient filled-bag removal by forklift or overhead crane.
Specifications
| Type | SWL / kg | Length (L) / mm | Width (W) / mm | Height (H) / mm | Pocket Size (a×b) / mm | Pocket Centres / mm | Weight / kg |
|---|---|---|---|---|---|---|---|
| WS-BFU200 | 2000 | 1960 | 1242 | 1800-2050 | 190×90 | 800 | 363 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Load Limit (WLL / SWL): Do not exceed the rated 2000kg (2 Ton) Safe Working Load limit. Always account for material density when filling to avoid structural overloading.
- Mounting & Fork Compatibility: Verify that your forklift tines match the pocket dimensions (190×90mm) and pocket centres (800mm) prior to moving or repositioning the frame.
- Ground Stability: Ensure the filling frame is placed on a solid, level surface before filling. An unlevel foundation can cause unbalanced weight distribution and tipping hazards under load.
- Suspension Safety: Inspect all 4 corner hooks and FIBC bag lifting loops for wear or damage before every filling cycle to prevent sudden bag drop.
