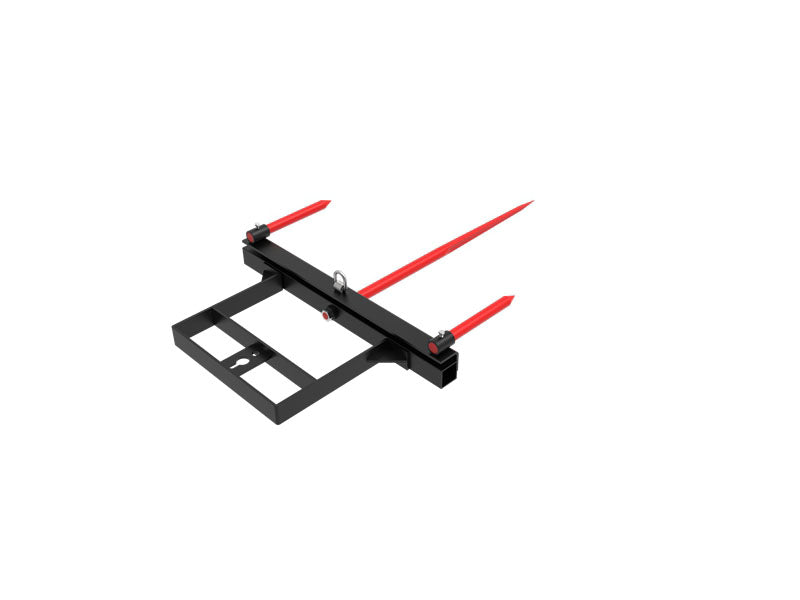

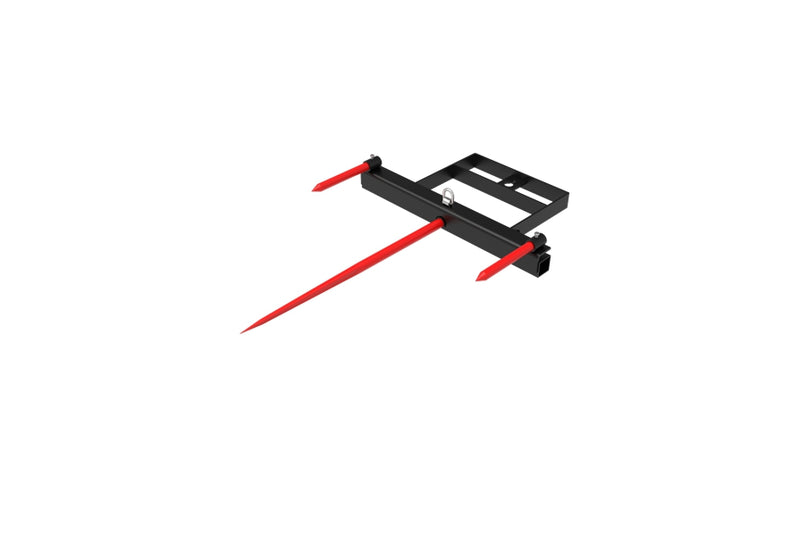

LANDYINDUS Clamp-On Bale Spear for Loader Bucket Heavy Duty Hay Fork Attachment with Stabilizer Spears G-UBHS1100(43IN)

Eliminate equipment changeover downtime and move round or square hay bales with unmatched stability using the LANDYINDUS Clamp-On Bale Spear with Stabilizer Spears (Model: G-UBHS1100(43IN)). Designed to slide directly over the cutting edge of your tractor loader bucket, this heavy-duty 3-spear attachment locks on securely via heavy screw clamps and an adjustable retention chain—transforming your loader bucket into a dedicated bale fork in minutes.

Product Overview

Single-spear attachments frequently allow large hay and straw bales to twist, spin, or droop during transit. The LANDYINDUS G-UBHS1100(43IN) solves this with a triangular 3-point geometry featuring one 1,250mm (49-inch) heat-treated main spear flanked by dual 432mm stabilizer spikes. With a solid 500kg Safe Working Load, it allows operators to stack, haul, and feed bales across rough pasture without losing bucket utility for other daily chores.

Core Selling Points

Anti-Roll Triangular 3-Spear Configuration

The centralized 1,250mm spear penetrates deep into the heart of round or square bales, while two flanking Ø40mm stabilizer tines brace against the outer face. This 3-point geometry locks bales firmly in position, preventing hazardous roll, shifting, or dropped loads over rough ground.

Fast Tool-Free Clamp-On Mounting

Slide the heavy-duty reinforced steel collar directly over your front-end loader bucket edge and tighten the heavy-gauge screw clamps. No bucket drilling, welding, or bucket removal is required, saving valuable time during daily feeding routines.

Adjustable Tension Fit Chain Included

Supplied with an integrated heavy-duty binder chain and tensioning assembly, the attachment locks back to your loader bucket structure to eliminate rattling, play, or forward slippage during aggressive bale penetration.

Rigid 500kg SWL Farm-Ready Build

Weighing 64kg with an overall frame width of 1,100mm, this attachment combines robust structural steel plate construction with precision-machined spear sockets, effortlessly supporting dense agricultural bales up to 500kg.

Specifications

Technical Drawing

⚠️ Safety & Compatibility Warnings

• Chain Tension & Clamp Torque: Always ensure the screw clamp is torqued securely against the bucket cutting edge and the retention chain is tightened securely to bucket tie-down points before each operating shift.
• Safe Transport Height: Keep the loaded bale positioned low to the terrain during transit to prevent tractor roll-over hazards on slopes or uneven ground.
• Spear Penetration Alignment: Approach bales straight-on at a 90-degree angle to avoid lateral bending stress on the spears during insertion or retraction.
• Clearance Zone: The 1,250mm main spear and stabilizer tines are pointed. Ensure all bystanders remain well outside the loader’s swing radius when handling bales.
