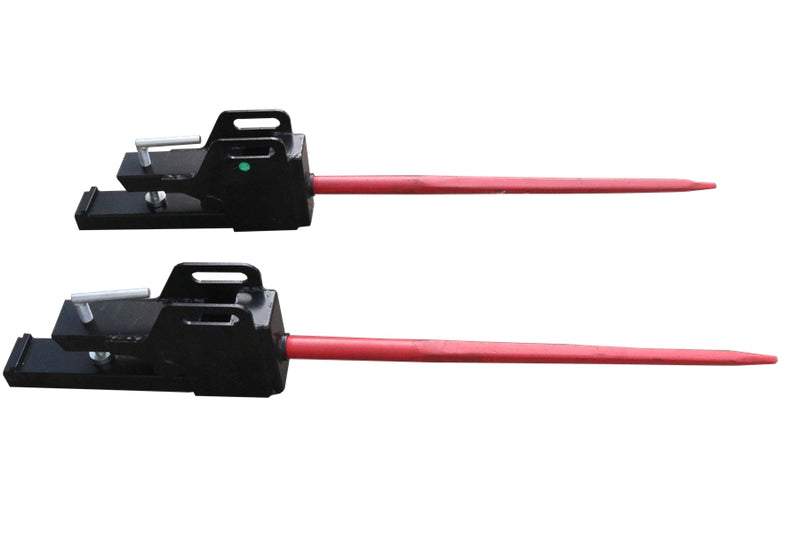

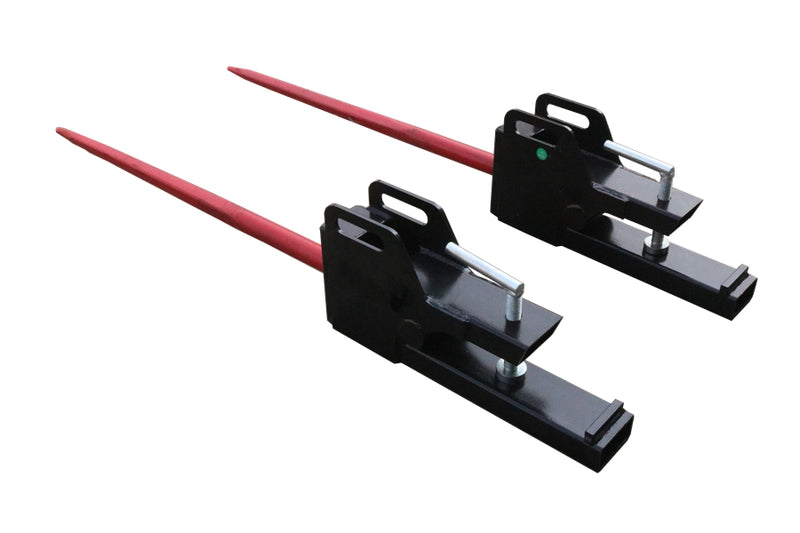

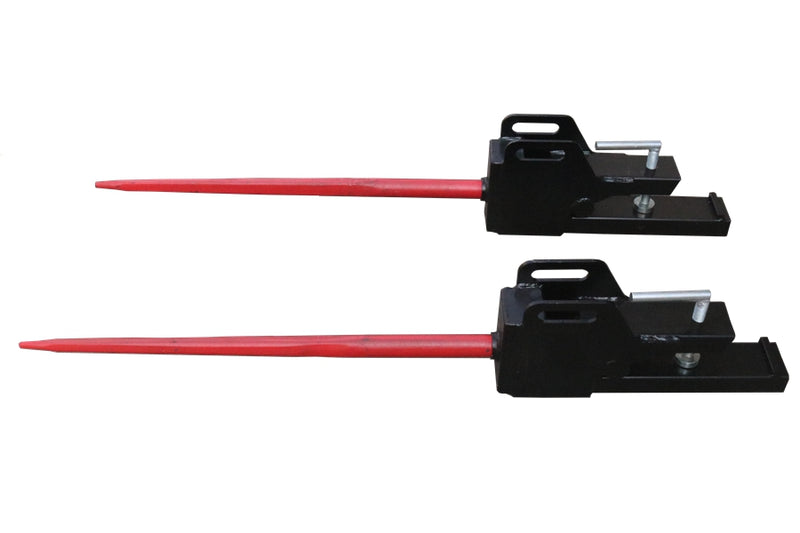

LANDYINDUS Clamp-On Hay Spear Set of 2 Heavy Duty Bale Spike with Quick Hitch Sleeves for Tractor Loader G-CHS500

Streamline your seasonal hay handling, transport, and stacking operations with the LANDYINDUS Clamp-On Hay Spear Set of 2 (Model: G-CHS500). Purpose-built for tractor front loaders, this dual-spike bale attachment delivers exceptional balance and stability, eliminating the rotational tipping risks associated with single-spear forks when transporting dense round bales.

Product Overview

Moving unwrapped round hay and straw bales requires dependable penetration and secure load retention. The LANDYINDUS G-CHS500 combines two heavy-duty forged Conus 2 spikes with robust clamp-on quick-hitch sleeves that mount securely onto your tractor's loader bucket edge. With an effective spear length of 1,100mm (42.9 inches) and a certified 500kg Safe Working Load, this pair provides the strength, reach, and stability demanded across farmsteads, livestock yards, and equestrian facilities.

Core Selling Points

Dual-Spike Balanced Penetration

Unlike single-point hay forks that allow bales to spin or sag during transport, this dual-spear configuration distributes the bale weight symmetrically across two high-tensile steel spikes. This ensures upright, stable handling across bumpy pastures and uneven terrain.

Heavy-Duty 42.9" (1,100mm) Conus 2 Forged Spears

Each spear features a precision-tapered Conus 2 profile with a 45mm diameter root, heat-treated for maximum flex resistance and tensile strength. The tapered tip slides effortlessly into dense round bales without pushing or deforming the bale structure.

Fast Clamp-On Mounting with Quick-Hitch Sleeves

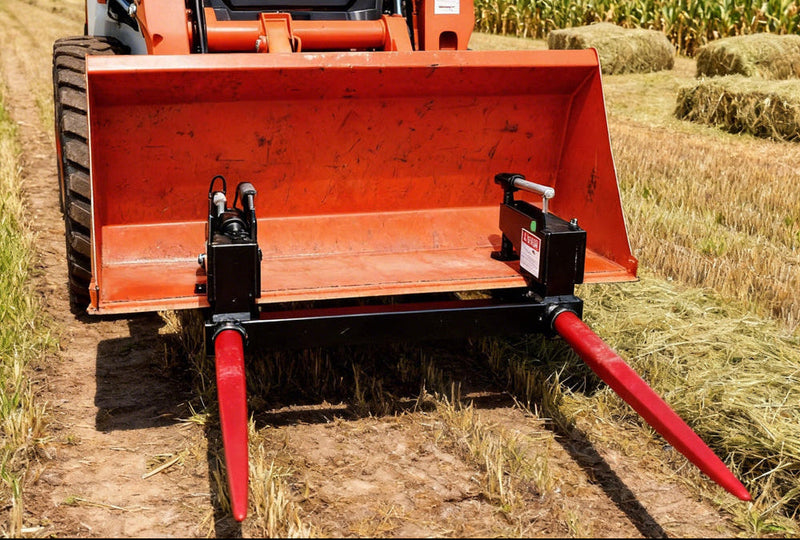

Engineered with welded heavy-gauge sleeves, the spears clamp onto your tractor front loader bucket lip quickly without requiring permanent alterations or welding. When hay season ends, easily detach the assembly to return your loader to general earthmoving duties.

Maneuverable 1,557mm Frame with 500kg SWL

With an overall frame width of 1,557mm and a total tare weight of 64kg, this attachment offers ample span for large bales while maintaining tight turning agility in narrow barn alleys, covered hay sheds, and feed passages.

Specifications

Technical Drawing

⚠️ Safety & Compatibility Warnings

• Clamp Bolt Torque Check: Securely tighten all clamp-on bolts against the bucket cutting edge and re-check torque after the initial 10 bales moved. Ensure the bucket edge is structurally sound and free from excessive rust.
• Load Limit & Transport Height: Never exceed the 500kg rated capacity or the tractor loader’s lift rating. Carry bales as low to the ground as safely possible during transit to maintain vehicle center of gravity.
• Pedestrian Clearance & Spear Hazard: The sharp Conus 2 tips pose a puncture hazard. Keep all personnel clear of the operating arc. Install protective tip covers or dismount spears when traveling on public roadways.
• Bale Type Notice: Engineered primarily for unwrapped round agricultural hay and straw bales. Not intended for wrapped silage bales where spear penetration would compromise plastic wrapping.
