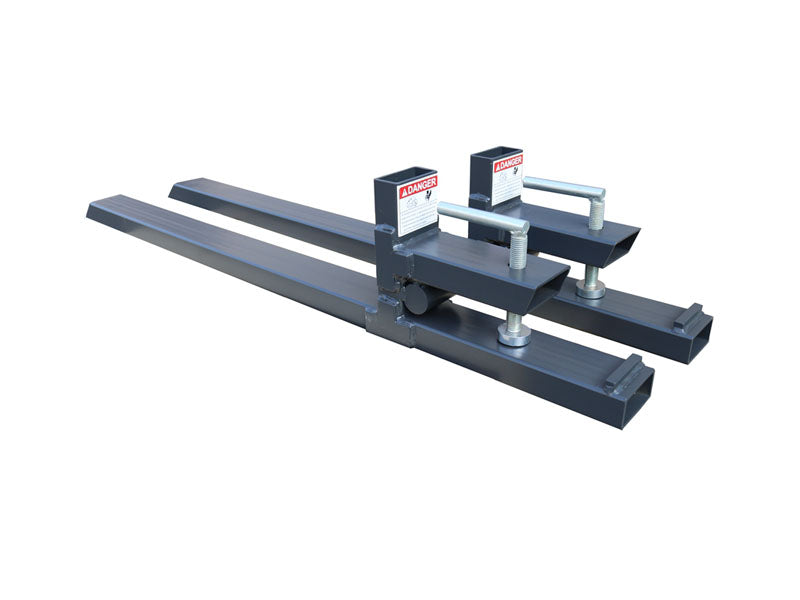

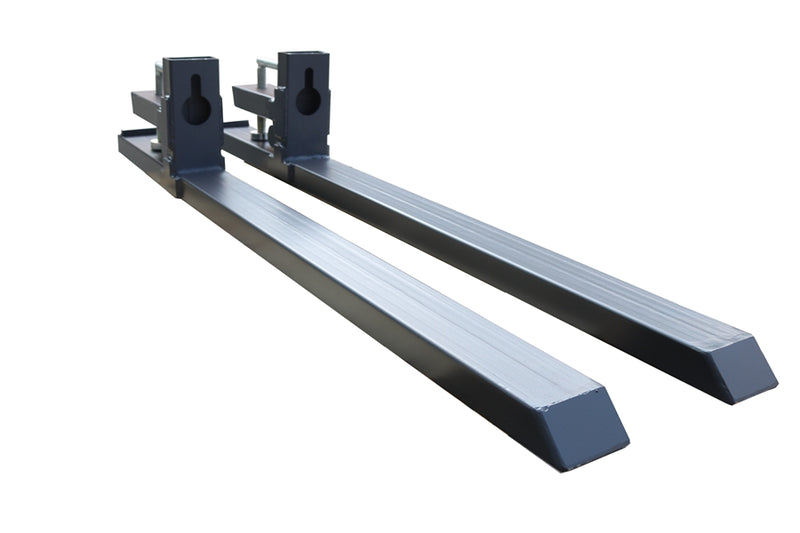

LANDYINDUS Clamp-On Pallet Forks for Tractor Loader Bucket 1100 LB Capacity Roll Back Protection G-BF100*50*1090

Instantly convert your front-end loader bucket into a heavy-duty material-handling workhorse with the LANDYINDUS Clamp-On Pallet Forks (Model: G-BF100*50*1090). Rated for 500 kg (approximately 1,100 LB) Safe Working Load and built with heavy-wall rectangular steel tubing, these forks slide directly over your loader bucket cutting edge to move pallets, lumber, fence posts, and logs without needing an expensive dedicated forklift.

Product Overview

Standard tractor loader buckets are engineered for bulk earthmoving, making palletized goods, fence materials, and long logs cumbersome and hazardous to transport. The LANDYINDUS G-BF100*50*1090 provides an economical, robust clamp-on solution. Built with thick-walled 100 × 50mm rectangular steel tines extending 1,090mm in length, these forks slide smoothly beneath standard pallets and skids. Heavy acme-thread screw clamps secure the tines firmly against the bucket edge—no drilling, welding, or bucket removal required.

Core Selling Points

Heavy-Duty Thick Rectangular Tube Wall

Engineered from industrial-grade rectangular structural steel, the fork tines resist bowing and torsional deflection under maximum rated capacity. The solid welded reinforcement collars distribute clamping pressure evenly across your bucket cutting edge.

Roll Back Protection Slots Included

Safety is paramount when handling elevated loads. Integrated vertical roll back protection slots physically block round logs, pipes, and irregular cargo from rolling backwards off the fork heels toward your machine hood and cab.

Chain Tie-Down Holes for Secure Rigging

Each fork features reinforced chain cutouts, enabling operators to secure straps or binder chains around unstable, tall, or uneven loads. This ensures complete load containment across rough pasture and uneven construction terrain.

Fast, Tool-Free Clamp-On Mounting

Slide the forks directly over the cutting edge of your tractor bucket, hand-tighten the clamping screws, and you are ready to lift in minutes. Disassembly is just as quick, returning your bucket to digging service with zero downtime.

Specifications

Technical Drawing

⚠️ Safety & Compatibility Warnings

• Clamp Bolt Torque Verification: Firmly tighten all clamp screws against the cutting edge before lifting. Re-torque after the first lift cycle and inspect regularly throughout continuous operation.
• Center of Gravity Management: Keep heavy loads positioned fully back against the fork heels. Carrying loads on the fork tips increases stress on bucket lips and reduces machine stability.
• Roll Back & Chain Restraints: Always utilize the integrated chain holes and roll back slots when transporting round timber, pipes, or unpalletized cargo to prevent material shifting during transit.
• Capacity Compliance: Never exceed 500 kg (1,100 LB) total load or the tractor front loader's certified lift rating, whichever is lower.
