LANDYINDUS Class 2A Skid Steer Pallet Fork Frame | 46" | 1,500–2,500kg SWL | Heavy Duty | MP1140 Universal Quick Attach

LANDYINDUS Class 2A Skid Steer Pallet Fork Frame | 46" (1,160mm) | 1,500 / 2,000 / 2,500kg SWL | Heavy Duty | MP1140 Universal Quick Attach

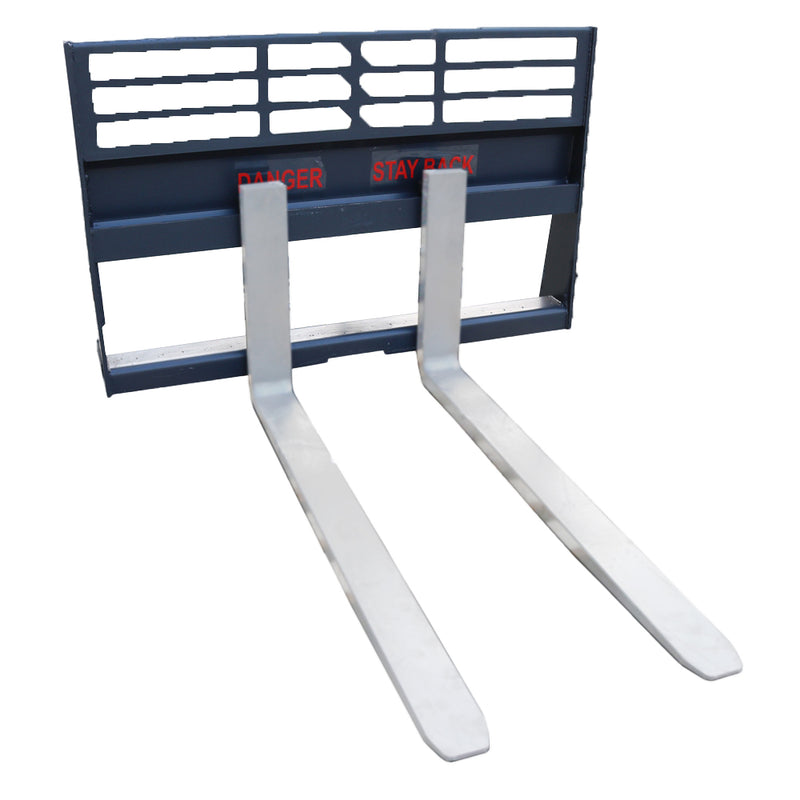

The LANDYINDUS Class 2A Skid Steer Pallet Fork Frame is a heavy-duty pallet fork attachment engineered for demanding material handling, industrial lifting, and high-capacity load transport with MP1140 universal quick-attach skid steer loaders. As a Class 2A rated attachment, this pallet fork frame is designed to handle the heavier load capacities and more intensive duty cycles associated with mid-to-large skid steer machines — the appropriate choice for operators who regularly move heavy palletised materials, bulk bags, construction supplies, or agricultural loads that exceed the limits of economy or Class 1A alternatives.

Three SWL Configurations — 1,500kg / 2,000kg / 2,500kg | Select the Capacity That Matches Your Machine & Job Site

Available in three safe working load configurations — 1,500kg, 2,000kg, and 2,500kg — giving operators the flexibility to select the capacity that precisely matches their machine’s rated operating load and their most demanding job site requirements. Whether handling standard warehouse pallets at 1.5 tons or moving heavy construction materials and agricultural bulk loads at 2.5 tons, this fork frame provides the structural capacity and safety margin needed for confident, high-cycle operation. Selecting the right SWL at purchase eliminates the need to over-specify or compromise on capacity.

Three Tine Cross-Section Options — 100×35mm / 100×40mm / 120×40mm | Match Tine Geometry to Load Type & Duty Cycle

Fork tines are available in three cross-section specifications — 100×35mm, 100×40mm, and 120×40mm — allowing operators to match tine geometry to their specific load type and duty cycle intensity. Additional frame and tine configurations are available on request via OEM and custom manufacturing.

No-Hinge Design | Latch-Lock Adjustable Tines | Heavy-Duty Load Guard — Simplified Hook-Up, Precise Spacing, Secure Transport

The no-hinge fork tine design simplifies hook-up and eliminates the mechanical failure points associated with hinged alternatives. The adjustable latch-lock tine system allows precise spacing adjustment to accommodate different pallet sizes and load footprints without tools. The heavy-duty load guard provides a solid backstop for palletised loads during transport — preventing rearward material shift and improving operator safety when moving stacked or top-heavy loads at elevation.

46" Tine Length | MP1140 Quick Attach — Fast Attachment Changes Across Mixed-Fleet Operations

With a 46" (1,160mm) tine length and MP1140 quick-attach compatibility, this pallet fork frame integrates directly with the majority of mid-to-large skid steer loaders on the market, offering fast attachment changes and consistent performance across mixed-fleet operations.

OEM & Custom Manufacturing Available

LANDYINDUS supports full OEM and custom manufacturing for this pallet fork frame, including SWL rating, tine specification, frame width, and interface customisation for equipment dealers, rental fleets, and large-scale operators with volume sourcing requirements. Contact us to discuss your specifications and request a quote.

Key Features

• Class 2A rating — mid-to-large skid steer machines, intensive duty cycles
• 3 SWL options — 1,500kg / 2,000kg / 2,500kg, select to match machine & job site
• 3 tine cross-sections — 100×35mm / 100×40mm / 120×40mm, match to load type & duty cycle
• No-hinge tine design — simplified hook-up, no mechanical failure points
• Latch-lock adjustable tines — precise spacing, no tools required
• Heavy-duty load guard — prevents rearward load shift during transport
• 46" (1,160mm) tine length — standard & wide-footprint pallets
• 89–95–100kg — weight scales with SWL rating
• MP1140 universal quick attach — fast changes across mixed-fleet operations
• OEM & custom manufacturing available — SWL, tine spec, frame width & interface

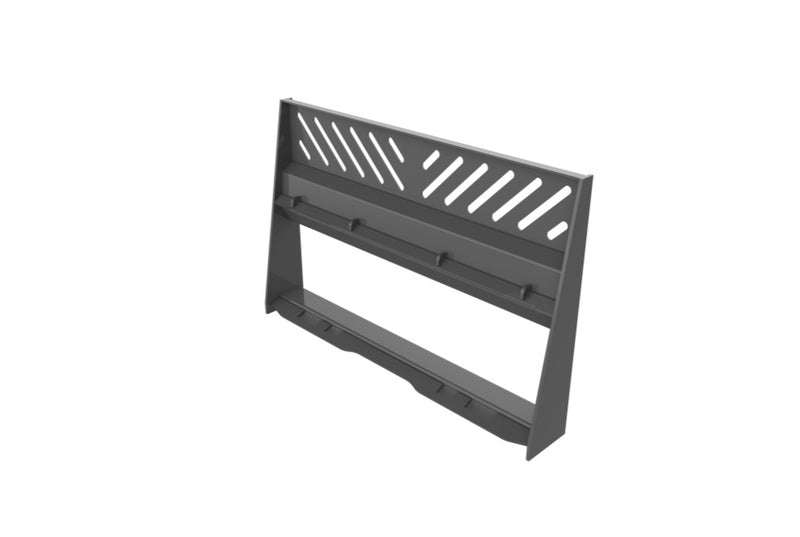

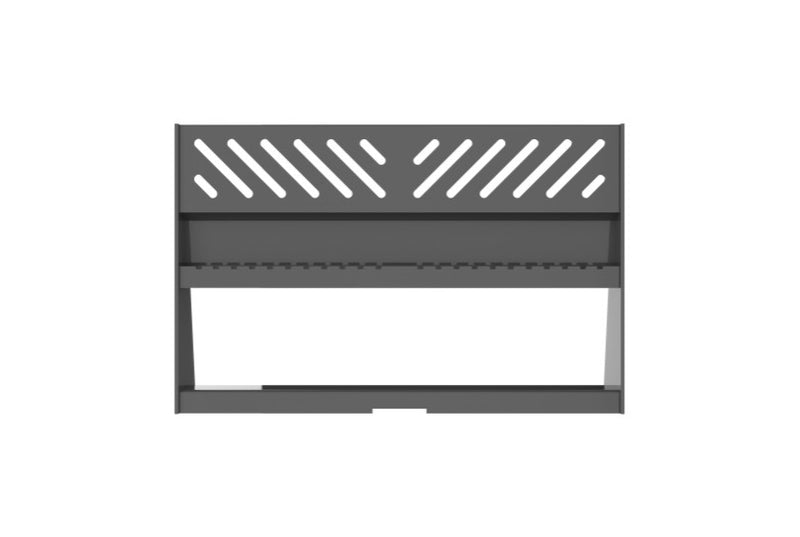

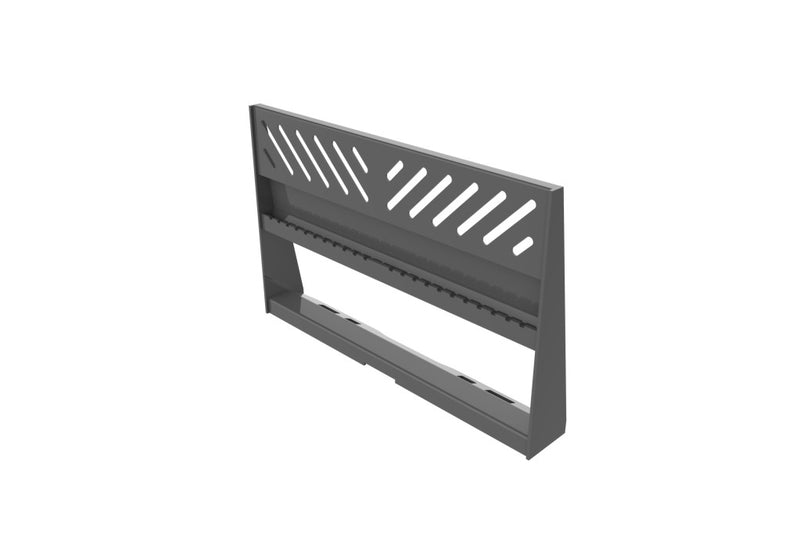

Technical Drawing:

Specifications
