LANDYINDUS Class 2A Skid Steer Pallet Fork Frame Only | 2,500kg SWL | 74kg Lightweight | Heavy Duty | MP1140 Quick Attach

LANDYINDUS S-2A-1200-2.5T-MP1140 Class 2A Skid Steer Pallet Fork Frame Only | 2,500kg SWL | 74kg Lightweight | MP1140 Universal Quick Attach

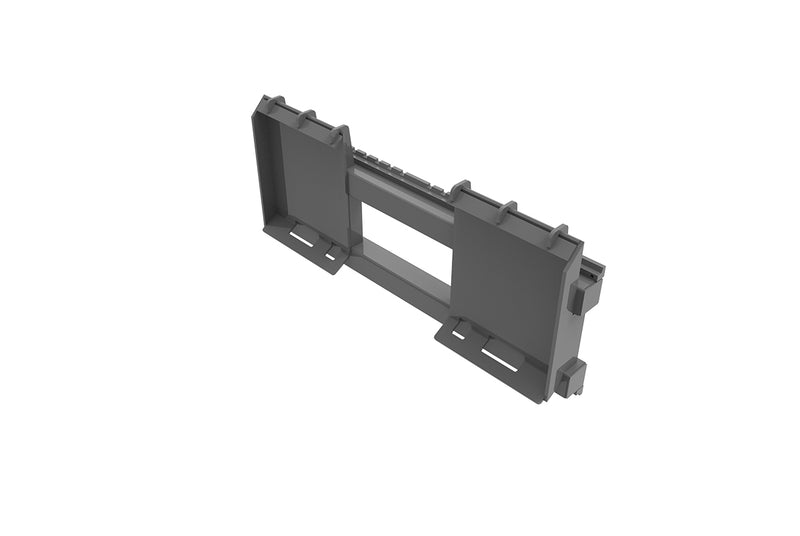

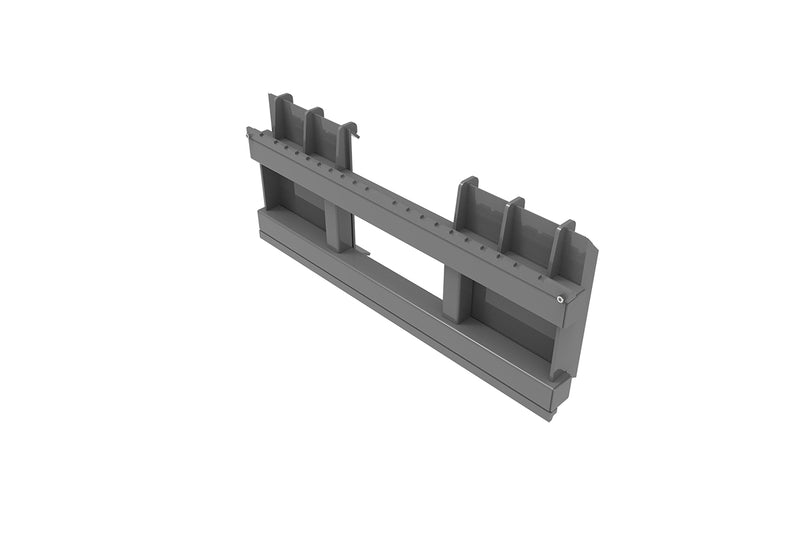

The LANDYINDUS S-2A-1200-2.5T Class 2A Skid Steer Pallet Fork Frame is a heavy-duty fork frame attachment designed for operators who need a high-capacity, lightweight frame solution compatible with their existing Class 2A fork tines, or who prefer to source frame and tines separately to match specific load requirements. Rated to a safe working load of 2,500kg (approx. 5,500 lbs) and compatible with the MP1140 universal quick-attach interface, this pallet fork frame delivers industrial-grade structural performance across construction site logistics, agricultural pallet moving, warehouse operations, and bulk material transport.

74kg — Significantly Lighter Than the 90–130kg Typical of Comparable Class 2A Frames on the Market

What distinguishes this fork frame from competing Class 2A alternatives is its exceptionally low self-weight of just 74kg — significantly lighter than the 90–130kg range typical of comparable Class 2A frames on the market. This weight advantage directly preserves more of the skid steer’s rated operating capacity for the actual load being lifted, allowing the machine to work closer to its maximum payload rating without exceeding structural limits. For operators running machines with tighter lift capacity margins, or managing mixed-attachment fleets where minimising attachment dead weight is a priority, this lightweight Class 2A frame offers a meaningful operational advantage over heavier alternatives.

Frame Only — Compatible with Existing Class 2A Tines | Replace Worn Frame, Build Custom Config, or Source Separately

This is a frame-only product — ideal for operators who are replacing a worn or damaged frame while retaining existing tines, building a custom fork configuration from separate components, or sourcing a lightweight high-capacity frame for a new machine. The 1,200mm frame width accommodates standard Class 2A tine sets across a range of cross-section specifications, with additional tine options available on request.

No-Hinge Design | Latch-Lock Adjustable Tines | Heavy-Duty Load Guard — Simple Hook-Up, Precise Spacing, Secure Transport

The frame is built around a no-hinge fork tine design that simplifies tine hook-up and eliminates the mechanical complexity and potential failure points associated with hinged tine carriers. The adjustable latch-lock tine system allows precise spacing adjustment to accommodate different pallet widths and load footprints without tools. The heavy-duty load guard provides a solid rear backstop that prevents palletised loads from shifting backward during transport or elevation.

MP1140 Quick Attach | 1,200×155×512mm — Fast Tool-Free Install & Removal Across Mid-to-Large Skid Steers

Compatible with the MP1140 quick-attach standard found on the majority of mid-to-large skid steer loaders, this fork frame installs and removes rapidly without tools — a practical choice for multi-attachment operations where fast changeover between implements is essential.

OEM & Custom Manufacturing Available

LANDYINDUS supports OEM and custom manufacturing options including frame width, SWL rating, and interface specification. Contact us to discuss your requirements and request a quote.

Key Features

• 74kg — significantly lighter than 90–130kg typical of comparable Class 2A frames
• Class 2A | 2,500kg (5,500 lbs) SWL — industrial-grade structural performance
• Frame only — use with existing Class 2A tines or source tines separately
• No-hinge tine design — simple hook-up, no mechanical failure points
• Latch-lock adjustable tines — precise spacing, no tools required
• Heavy-duty load guard — prevents rearward load shift during transport & elevation
• 1,200mm frame width — standard Class 2A tine sets across multiple cross-sections
• 1,200×155×512mm — compact, low-profile frame
• MP1140 universal quick attach — fast tool-free install & removal
• OEM & custom manufacturing available — frame width, SWL & interface options

Technical Drawing:

Specifications
