LANDYINDUS Dual Wheelie Bin Tipper | 2×240L Simultaneous | 1,000kg SWL | 180° Full Rotation | Safety Chains | Hot-Dip Galvanized | Double Throughput vs Single Bin | Slip-On Fork Pockets | F-NWB-T2

LANDYINDUS F-NWB-T2 Dual Wheelie Bin Tipper | 2×240L Simultaneous — Double Throughput in One Cycle | 1,000kg SWL | 180° Full Rotation | Safety Chains | Hot-Dip Galvanized | Operator Stays in Cab | Slip-On Fork Pockets

The LANDYINDUS F-NWB-T2 Dual Wheelie Bin Tipper is engineered for high-volume waste handling operations that require maximum efficiency — capable of tipping two 240-litre wheelie bins simultaneously in a single cycle, doubling throughput compared to single-bin tippers and dramatically reducing the time and labour required for large-scale bin emptying.

Two Bins, One Cycle — Double Throughput, Same Operator, Same Forklift

Where the F-NWB-T1 empties one 240L bin per cycle, the F-NWB-T2 empties two 240L bins simultaneously in the same single hydraulic cycle — effectively halving the number of cycles required to clear a given number of bins, halving cycle time per bin, and doubling the operator’s bin-emptying throughput without additional labour or equipment.

F-NWB-T1 vs F-NWB-T2 — Single vs Dual Bin, Choose by Volume

180° Full Rotation — Both Bins Completely Emptied, Zero Residual Waste

The forklift’s hydraulic system drives a smooth 180° rotation, completely emptying both bins in one controlled motion. At full inversion, both bins discharge simultaneously under gravity with zero residual waste — no manual intervention, no secondary cleaning, no repeat cycles for sticky or compacted material.

Safety Chains — Both Bins Secured Throughout Entire Tip Cycle

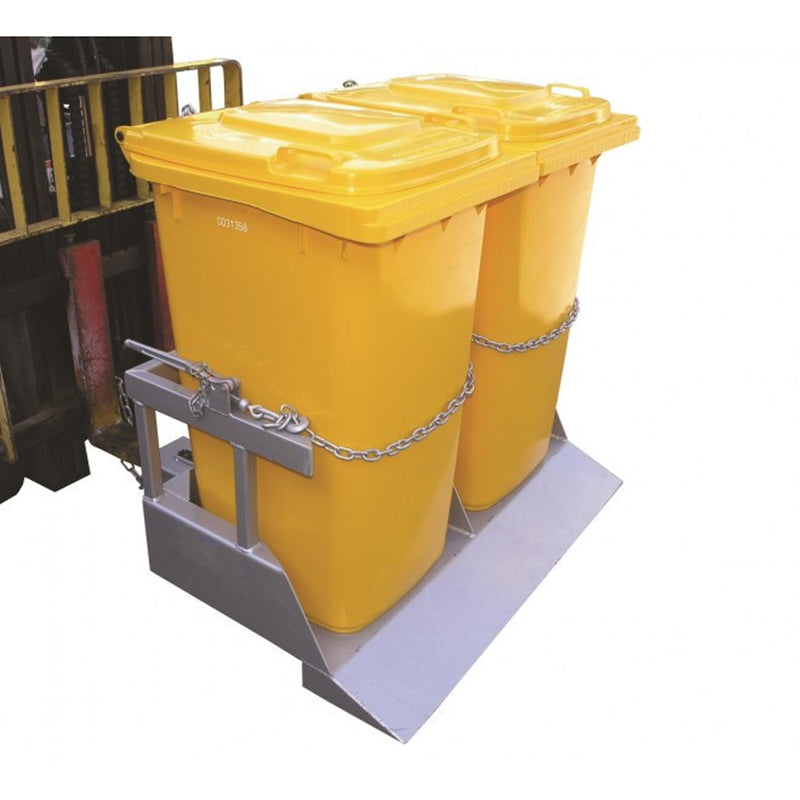

Both bins are wheeled simultaneously into the tipper frame and secured with safety chains, preventing accidental displacement during the tipping cycle. The operator remains in the forklift seat throughout, eliminating manual handling and reducing workplace injury risk in high-frequency bin emptying operations.

Hot-Dip Galvanized — Long-Term Corrosion Resistance for Outdoor & Wet Environments

Finished in a hot-dip galvanized coating, the F-NWB-T2 provides long-term corrosion resistance for demanding outdoor, wet, and chemically exposed environments — ideal for food-grade and general waste applications where paint finishes degrade rapidly under frequent washdown and chemical exposure.

Applications

• Large warehouses & distribution centres — high-volume packaging waste, maximum throughput
• Supermarket & retail distribution — daily high-frequency bin emptying
• Commercial kitchens & food processing — wet organic waste, frequent washdown
• Hospitals & healthcare facilities — high-volume waste, hygiene-critical environments
• Shopping centres — multiple waste streams, high daily volume
• Municipal waste operations — outdoor use, weather and chemical exposure

Key Features

• 2×240L simultaneous — double throughput in one cycle, same operator, same forklift
• 1,000kg SWL — both bins fully loaded
• 180° full rotation — complete inversion, zero residual waste
• Safety chains — both bins secured throughout tip cycle
• Hot-dip galvanized — outdoor, wet, chemical & food-grade environments
• Operator stays in cab — no manual handling
• Same fork pockets as F-NWB-T1 (165×65mm, 340mm centres) — same forklift, both tippers
• 163kg | 1,168×1,214×865mm | 1,200mm load centre

Technical Drawing:

Specifications
