LANDYINDUS Excavator Compaction Wheel Drum Style | 2–14T | S40 S50 S60 | Clay & Fine Soil

LANDYINDUS Excavator Drum Compaction Wheel | S40 S50 S60 | 2–14T

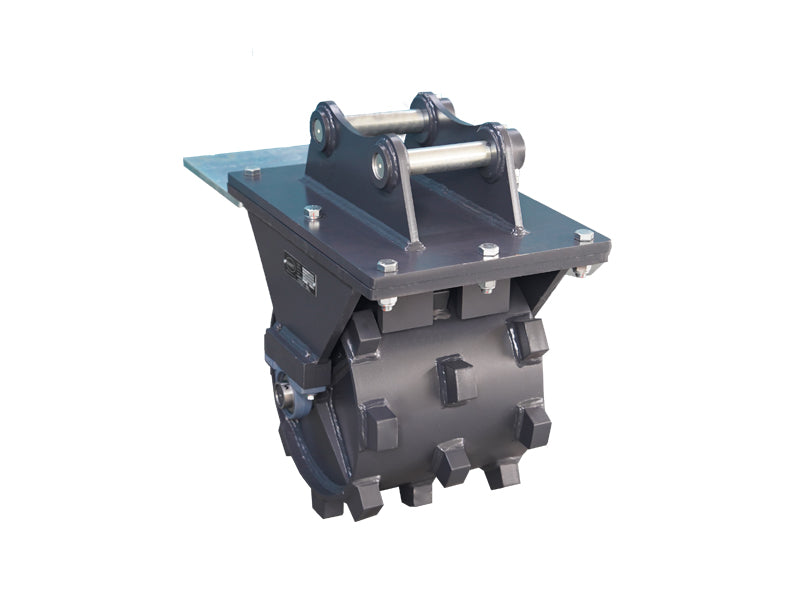

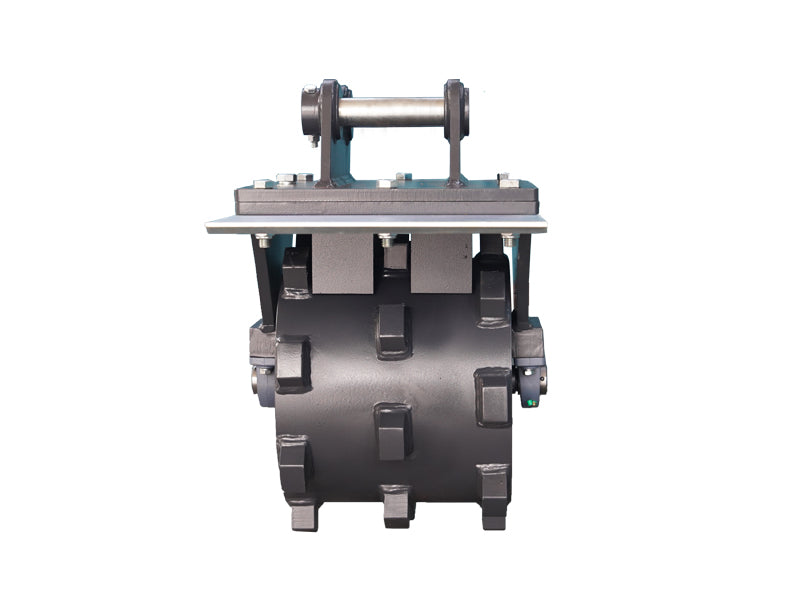

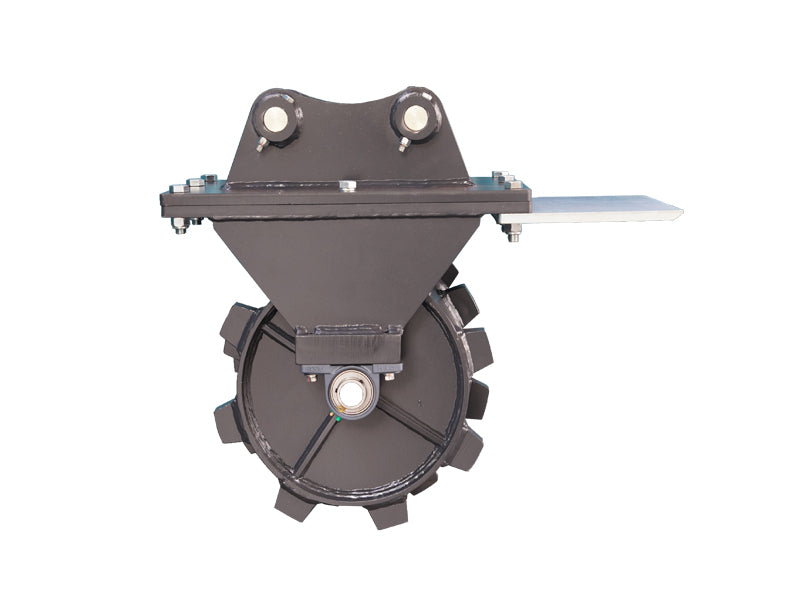

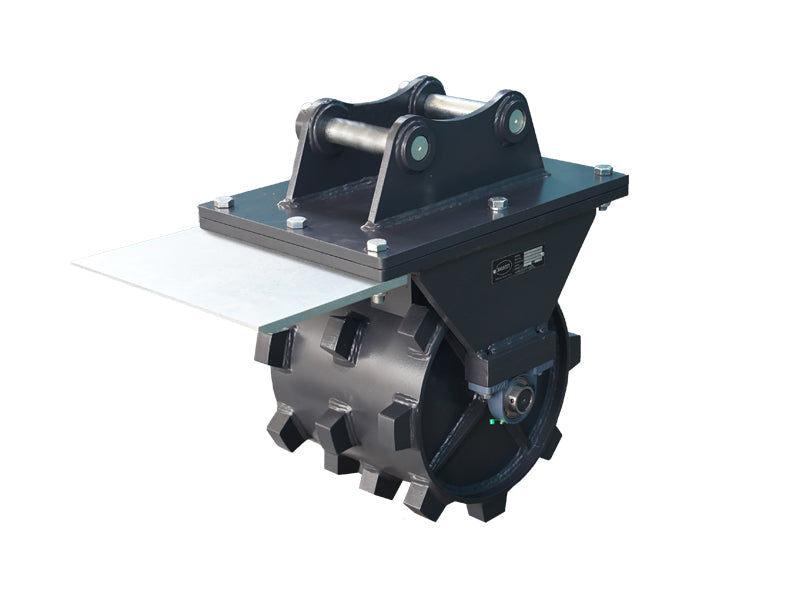

The LANDYINDUS Drum-Style Excavator Compaction Wheel delivers consistent mechanical compaction force through direct drum-to-ground contact, integrating directly onto the excavator arm to apply precise downward pressure while maintaining full machine mobility. Available in four models covering excavator classes from 2T to 14T with S40, S50, and S60 bracket options, this compaction wheel is the preferred choice for trench backfill, pipeline bedding, road sub-base preparation, and embankment consolidation work.

Optimised for Clay and Fine-Grained Soils

The drum compaction wheel is particularly effective in clay-rich and mechanically stable fine-grained soils where vibratory plate compactors and jumping jack rammers struggle to achieve uniform density. By using the excavator's own hydraulic downforce to drive the drum into the soil, the compaction wheel generates consistent compaction across the full drum width with each pass — eliminating the voids and air pockets that lead to settlement, structural failure, and costly rework on civil engineering, utility installation, and infrastructure projects.

OEM-Compatible Bracket Fitment — S40, S50, S60

The series covers S40, S50, and S60 bracket configurations for direct OEM-compatible fitment across leading excavator brands including Caterpillar, Komatsu, Sany, and Volvo. All models are precision-manufactured to strict dimensional tolerances and supplied with technical drawings for pre-purchase fitment verification. Custom sizes and bracket configurations are available upon request.

Four Models — 2T to 14T Excavator Classes

• ME-CW3T-S40 — 840×404×698mm | Drum Ø520mm | S40 bracket | 217 kg | Suits 2–3.5T
• ME-CW5T-S40 — 840×444×698mm | Drum Ø520mm | S40 bracket | 225 kg | Suits 4–6T
• E-CW8T-S50 — 910×500×724mm | Drum Ø520mm | S50 bracket | 245 kg | Suits 6–8T
• E-CW13T-S60 — 1100×620×969mm | Drum Ø716mm | S60 bracket | 425 kg | Suits 10–14T

Heavy-Duty Structural Steel Construction

Each compaction wheel is constructed from high-strength structural steel with robust bracket welding to withstand the repetitive impact and load cycles inherent in continuous compaction work. Whether you are backfilling utility trenches, consolidating road foundations, or compacting embankment slopes, the LANDYINDUS drum compaction wheel delivers the force, coverage, and machine compatibility needed to achieve specification-grade compaction efficiently.

Key Features

• Drum-style compaction wheel for excavators 2T to 14T
• S40, S50, S60 OEM-compatible bracket options
• Optimised for clay-rich and fine-grained soils
• Hydraulic downforce-driven — no separate power source required
• High-strength structural steel with robust bracket welding
• Supplied with technical drawings for fitment verification
• Custom sizes and bracket configurations available on request

Technical Drawing:

Specifications
