LANDYINDUS Excavator Flail Mower Attachment | 4–8 Ton | E-FM Series

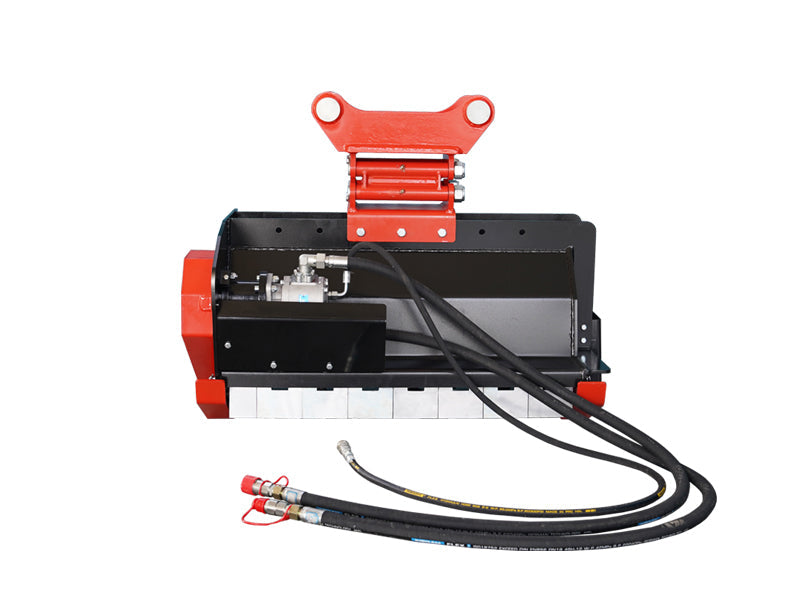

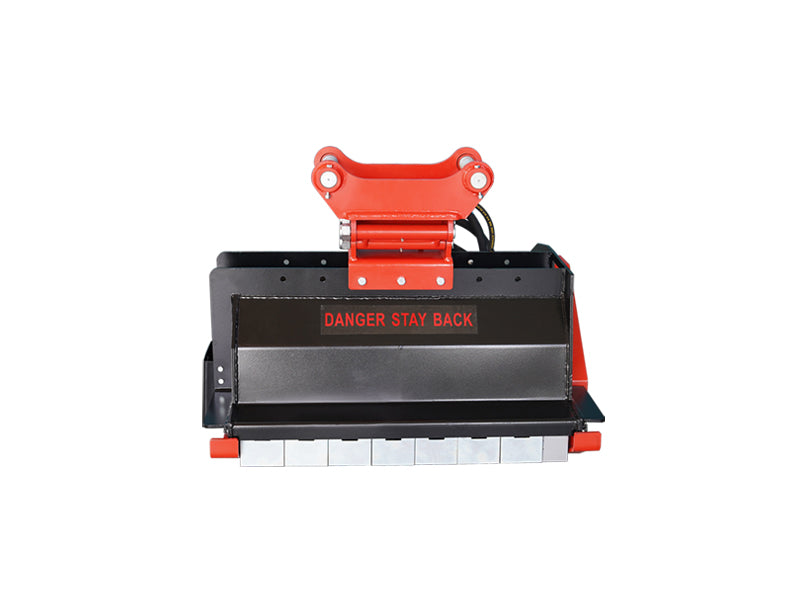

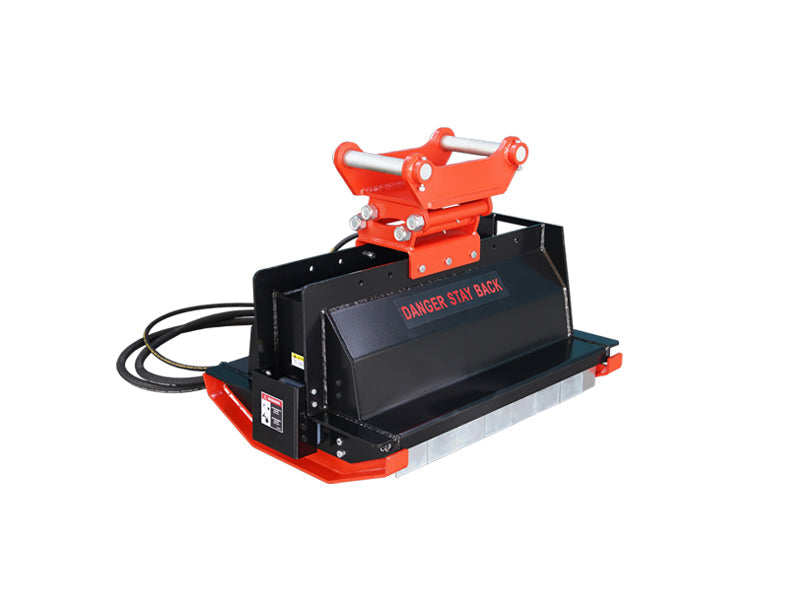

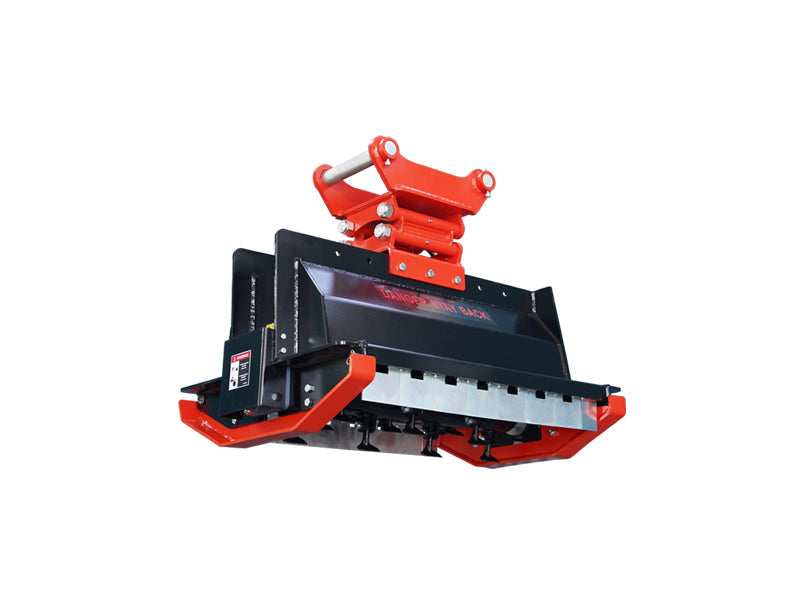

LANDYINDUS E-FM Series Excavator Flail Mower Attachment | 4–8 Ton

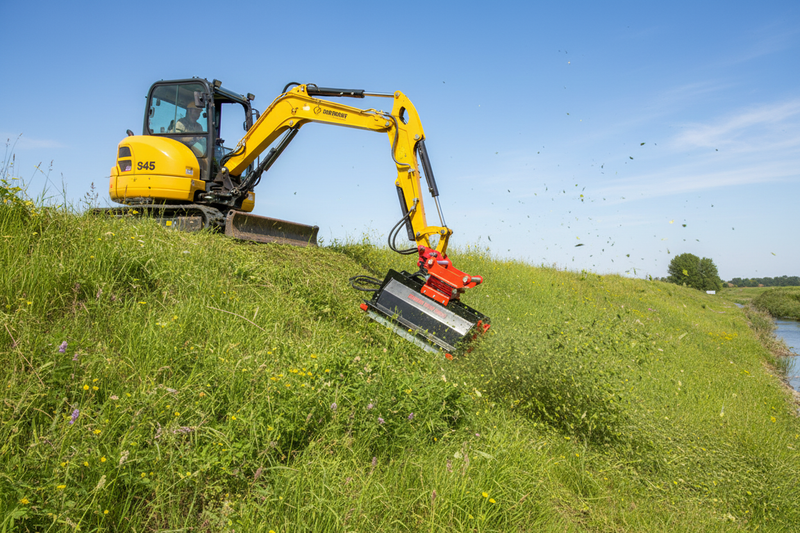

The LANDYINDUS E-FM Series Excavator Flail Mower Attachment is a professional-grade hydraulic flail mower designed for 4–8 ton mini excavators, delivering powerful brush cutting and vegetation control in terrain where standard rotary mowers cannot operate. Its lightweight, compact structure allows precise maneuvering in confined spaces, steep slopes, roadside ditches, riverbanks, pond edges, and overgrown firebreak corridors — all from the safety and comfort of the excavator cab.

Operates Where Rotary Mowers Cannot

Whether clearing dense undergrowth, maintaining drainage channels, or managing vegetation along embankments and waterways, the E-FM series provides consistent cutting performance across a working width of 805 mm to 1,220 mm depending on model. The compact frame geometry and excavator arm reach give operators access to slopes, ditches, and confined corridors that are inaccessible to ground-based mowing equipment.

Hardened Flail Blades — 14 to 18 Per Model

Each unit is fitted with 14 to 18 hardened flail blades engineered for wear resistance and long service life. The flail blade configuration delivers effective mulching of brush, saplings, and dense vegetation while reducing downtime and replacement costs on demanding continuous-use job sites.

High-Efficiency Hydraulic Drive — 20 MPa / 70 LPM

The hydraulic drive system operates at 20 MPa with a flow rate of 70 LPM, ensuring reliable power transfer and smooth operation under continuous load. Compatible with standard excavator auxiliary hydraulic circuits on 4–8 ton machines without additional modification.

S45 / S50 Bracket — Direct Quick Coupler Mounting

Compatible bracket types S45 and S50 allow direct mounting to most standard excavator quick couplers without modification, covering the full 4–8 ton excavator class range across leading brands.

Three Models — 805 mm to 1,220 mm Working Width

• E-FM32-S45 — 1007×942×930mm | Working Width 805mm | 14 flails | S45 | 321 kg | Suits 4–6T
• E-FM40-S50 — 1210×942×960mm | Working Width 1,020mm | 16 flails | S50 | 350 kg | Suits 6–8T
• E-FM48-S50 — 1422×942×970mm | Working Width 1,220mm | 18 flails | S50 | 378 kg | Suits 6–8T

Key Features

• Professional-grade hydraulic flail mower for 4–8 ton excavators
• Working width 805–1,220mm across three models
• 14–18 hardened flail blades for wear resistance and long service life
• 20 MPa / 70 LPM hydraulic drive — smooth operation under continuous load
• S45 / S50 bracket — direct quick coupler mounting, no modification required
• Compact structure for slopes, ditches, riverbanks, and confined corridors
• Ideal for land clearing, utility maintenance, municipal vegetation management, and agriculture

Technical Drawing:

Specifications
