LANDYINDUS E-LB / ME-LB Excavator Grading Beam | Integrated Cutters & Material Collection Compartment | Cut, Collect & Redistribute in One Pass | 1,500–3,000mm | S40, S45, S60 & S70 | 2–18T | 8mm & 12mm Plate | Grading, Backfilling & Spreading

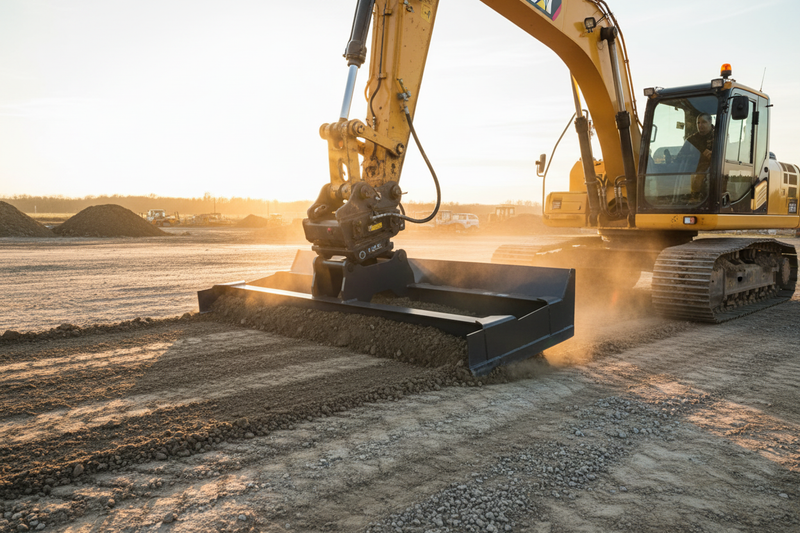

The LANDYINDUS E-LB Series Excavator Grading Beam is a heavy-duty land leveling blade engineered for 2–18 ton excavators, delivering precise grading, backfilling, material spreading, and surface preparation on construction sites, landscaping projects, road maintenance corridors, and agricultural land where consistent, flat results are required in a single efficient pass.

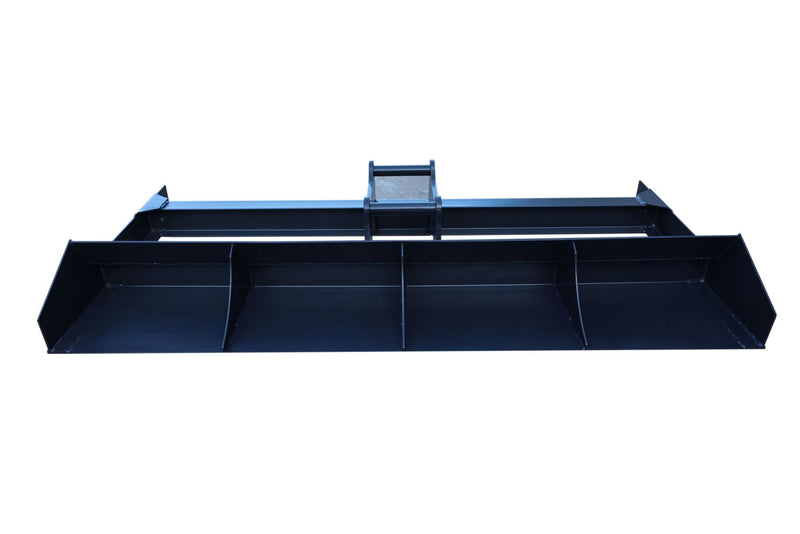

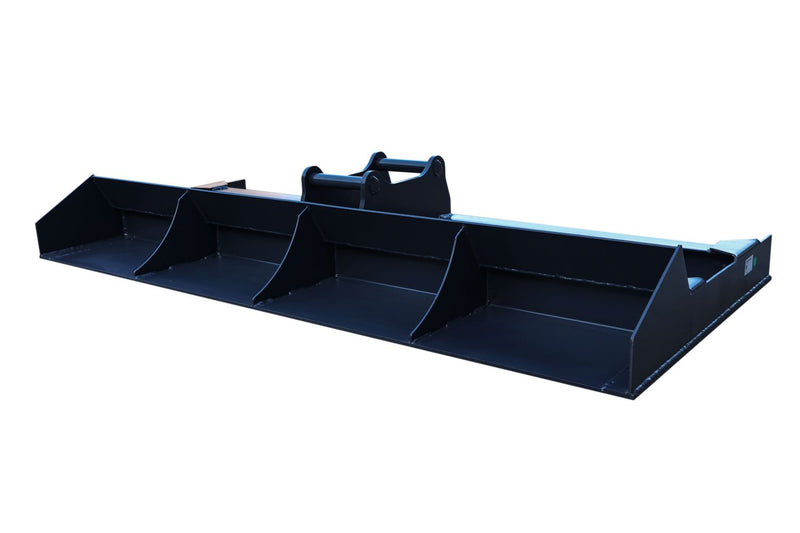

Integrated Cutters + Material Collection Compartment — Cut, Collect & Redistribute in One Pass, No Manual Raking
Each unit is equipped with integrated cutters and a material collection compartment that allow the operator to simultaneously cut, collect, and redistribute soil, gravel, topsoil, and landscape materials without additional passes or manual raking, significantly improving on-site productivity and reducing overall project labour costs. This three-in-one operation — cut, collect, spread — is the defining feature that separates the E-LB from a standard grading blade that only pushes material.
Grading Beam vs Standard Grading Bucket — Blade Profile vs Bucket Profile
| Feature | Grading Bucket (E-GB / ME-GB) | E-LB Grading Beam (This) |
|---|---|---|
| Profile | Bucket — holds and carries material | Blade — wide, flat leveling surface |
| Working width | 1,200–1,600mm | 1,500–3,000mm — up to 2× wider |
| Material collection | In bucket body | Integrated collection compartment |
| Integrated cutters | No | Yes — cut and collect simultaneously |
| Backfilling | Limited | Yes — spread and level in one pass |
| Best for | Precision finishing, tiltrotator use | Large-area leveling, backfill, spreading |
Six Models — S40 to S70, 2T to 18T, 1,500mm to 3,000mm
| Model | Width (mm) | Dimensions W×D×H (mm) | Plate (mm) | Bracket | Excavator | Weight (kg) |
|---|---|---|---|---|---|---|
| ME-LB1500-S40 | 1,500 | 1,500×900×310 | 8 | S40 | 2–3.5T | 123 |
| ME-LB2000-S40 | 2,000 | 2,000×900×310 | 8 | S40 | 2–3.5T | 148 |
| E-LB2000-S45 | 2,000 | 2,000×900×320 | 8 | S45 | 4–6T | 165 |
| E-LB2500-S45 | 2,500 | 2,500×1,245×347 | 12 | S45 | 4–6T | 330 |
| E-LB2500-S60 | 2,500 | 2,500×1,245×422 | 12 | S60 | 10–14T | 350 |
| E-LB3000-S70 | 3,000 | 3,000×1,300×469 | 12 | S70 | 16–18T | 460 |
Note on S40 vs S45 at 2,000mm width: ME-LB2000-S40 (123kg, 2–3.5T) and E-LB2000-S45 (165kg, 4–6T) share the same working width but differ in bracket, plate depth, and weight — select based on your excavator’s bracket type and weight class.
Plate Thickness by Excavator Class
| Excavator Class | Plate | Models |
|---|---|---|
| 2–6T (S40/S45) | 8mm | ME-LB1500-S40, ME-LB2000-S40, E-LB2000-S45 |
| 4–18T (S45/S60/S70) | 12mm | E-LB2500-S45, E-LB2500-S60, E-LB3000-S70 |
Applications
- Construction sites — sub-base preparation, site leveling, topsoil spreading
- Landscaping — lawn preparation, garden bed leveling, topsoil redistribution
- Road maintenance — gravel road grading, pothole backfill, shoulder leveling
- Agricultural land — field leveling, irrigation channel backfill, headland preparation
- Civil engineering — ditch backfill, embankment spreading, formation leveling
Key Features
- Integrated cutters + collection compartment — cut, collect & redistribute in one pass
- No manual raking required — single-pass grading, backfill and spreading
- 1,500–3,000mm working width — mini excavator to large excavator coverage
- S40 / S45 / S60 / S70 — direct OEM bracket fitment, no custom adapters
- 8mm plate (2–6T) & 12mm plate (4–18T) — matched to excavator class
- High-strength structural steel — reinforced plate construction
- 123–460kg | 6 standard configurations | custom sizes available
Technical Drawing:
