LANDYINDUS Excavator Grading Beam with 325mm Compaction Roller | Heavy-Duty | E-HDLG Series

LANDYINDUS E-HDLG Series Heavy-Duty Excavator Grading Beam with 325mm Compaction Roller | 2–18T

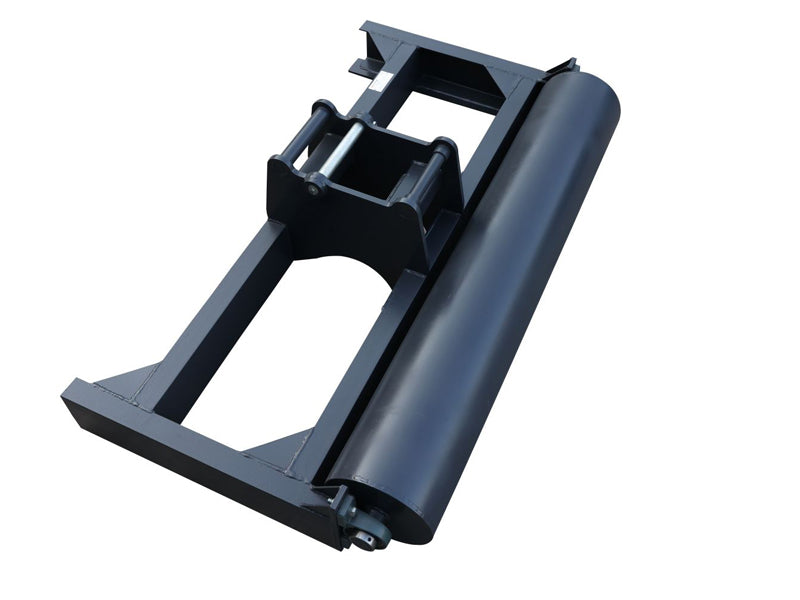

The LANDYINDUS E-HDLG Series is a professional-grade land leveling and surface compaction attachment engineered for 2–18 ton excavators, purpose-built for commercial construction, road base preparation, large-scale earthmoving, and heavy-duty site grading applications where standard leveling beams lack the structural rigidity and compaction force required for consistent, high-quality finished surfaces.

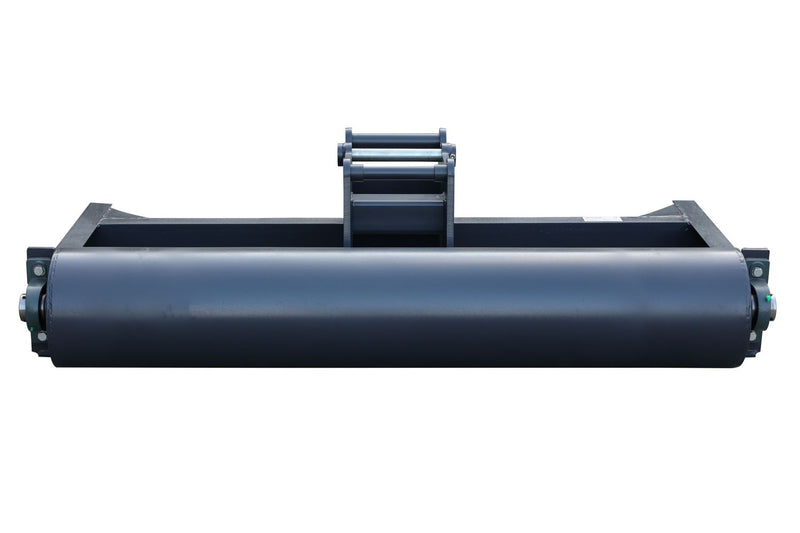

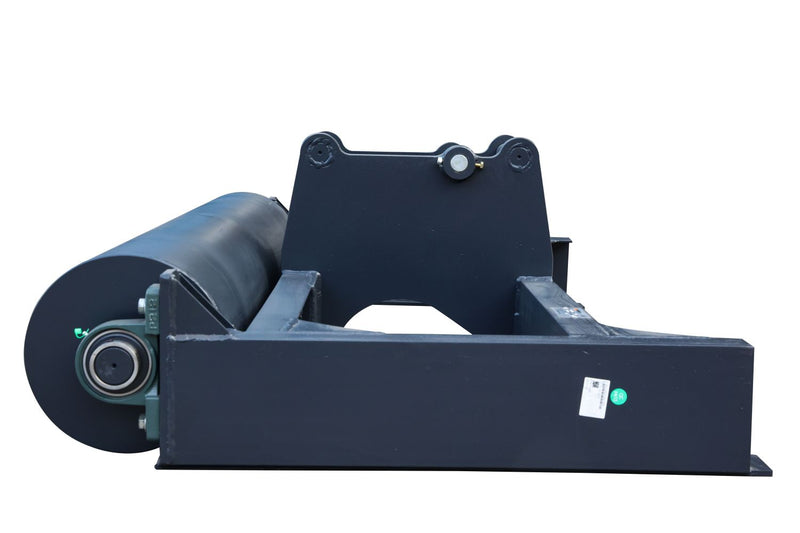

325mm Precision-Machined Compaction Roller — Greater Force Per Pass

The precision-machined rear compaction roller features a 325mm diameter across all models — significantly larger than standard leveling beam rollers — delivering substantially greater compaction force per pass. The result: denser, more stable graded surfaces ready for tarmac laying, block paving, concrete slab preparation, and drainage gradient formation on high-traffic commercial and civil engineering sites.

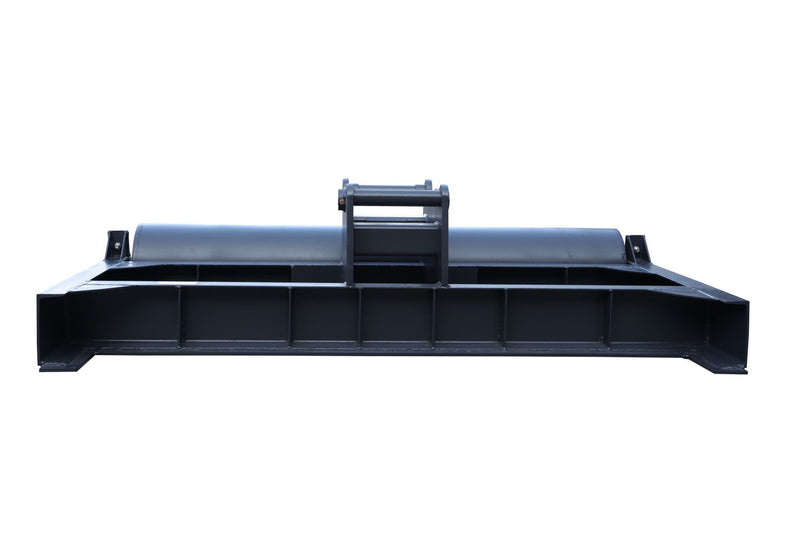

Heavy-Duty Structural Steel Frame — No Flex Under High Downforce

The rugged heavy-duty structural steel frame is engineered to withstand continuous high-load operation, producing accurate site contours quickly and consistently across gravel, topsoil, sand, aggregate, and compacted fill materials. The deep reinforced frame construction — ranging from 480mm to 600mm in depth — prevents flexing or deforming under the increased downforce generated by larger excavator arms.

1,500mm to 3,000mm Working Width — Four Models for Every Site Scale

Available in working widths from 1,500mm to 3,000mm, the E-HDLG series handles the most demanding grading and compaction tasks across residential driveways, commercial parking lots, road maintenance corridors, utility trench backfill, and large-scale landscaping and earthworks projects.

S30–S70 Dual Bracket Configurations — 2T to 18T Compatibility

S30, S40, S50, S60, and S70 dual bracket configurations provide direct compatibility with standard excavator quick couplers across the full 2–18 ton machine range, allowing fast, tool-free attachment changes on site without custom adapters or additional fabrication work.

Four Models — 2T to 18T Excavator Classes

• ME-HDLG1500-S30/S40 — 1526×1188×480mm | Roller Ø325mm | S30/S40 | 354 kg | Suits 2–3.5T
• E-HDLG2000-S40/S50 — 2000×1188×524mm | Roller Ø325mm | S40/S50 | 438 kg | Suits 6–8T
• E-HDLG2500-S50/S60 — 2500×1188×579mm | Roller Ø325mm | S50/S60 | 546 kg | Suits 10–14T
• E-HDLG3000-S60/S70 — 3000×1188×600mm | Roller Ø325mm | S60/S70 | 652 kg | Suits 16–18T

Key Features

• 325mm precision-machined rear compaction roller — all models
• Working widths 1,500mm to 3,000mm across four models
• Heavy-duty structural steel frame — no flex under high downforce
• Deep reinforced frame 480–600mm depth for maximum rigidity
• S30/S40/S50/S60/S70 dual bracket — direct quick coupler mounting
• Suits 2–18T excavators across all leading brands
• Ideal for road base, paving prep, trench backfill, and large-scale earthworks

Technical Drawing:

Specifications
