LANDYINDUS E-LG / ME-LG Excavator Grading Beam with Compaction Roller | Grade & Compact in One Pass | 1,500–3,000mm | 152–220mm Precision-Machined Rear Roller | S40, S50, S60 & S70 | 2–18T | Block Paving, Tarmac, Landscaping & Site Preparation
The LANDYINDUS E-LG Series Excavator Grading Beam with Compaction Roller combines precision grading with integrated roller compaction in a single pass to deliver finished, compacted surfaces ready for block paving, tarmac laying, landscaping, and site preparation without the need for additional compaction equipment. Engineered for 2–18 ton excavators with working widths from 1,500mm to 3,000mm.
Grade & Compact in One Pass — Eliminate Separate Compactor Pass, Reduce Machine Hours and Labour Costs
The integrated rear roller compacts the graded surface immediately after leveling, eliminating the need for a separate compactor pass and significantly reducing machine hours, labour costs, and project turnaround time on time-sensitive site preparation and paving foundation work. On a standard grading job without the E-LG, the workflow is: grade pass → bring in plate compactor or roller → compact pass. With the E-LG, both operations happen simultaneously in a single excavator pass.
E-LG vs E-LB — With Roller vs Without Roller
| Feature | E-LB Grading Beam (No Roller) | E-LG Grading Beam + Roller (This) |
|---|---|---|
| Grading | Yes | Yes |
| Integrated cutters | Yes | No — roller replaces cutter section |
| Surface compaction | No — separate compactor needed | Yes — rear roller compacts immediately |
| Separate compactor pass | Required | Eliminated |
| Best for | Cut/collect/spread — material redistribution | Grade + compact — paving foundation, block paving, tarmac prep |
| Roller diameter | None | 152mm (2–3.5T) / 220mm (6–18T) |

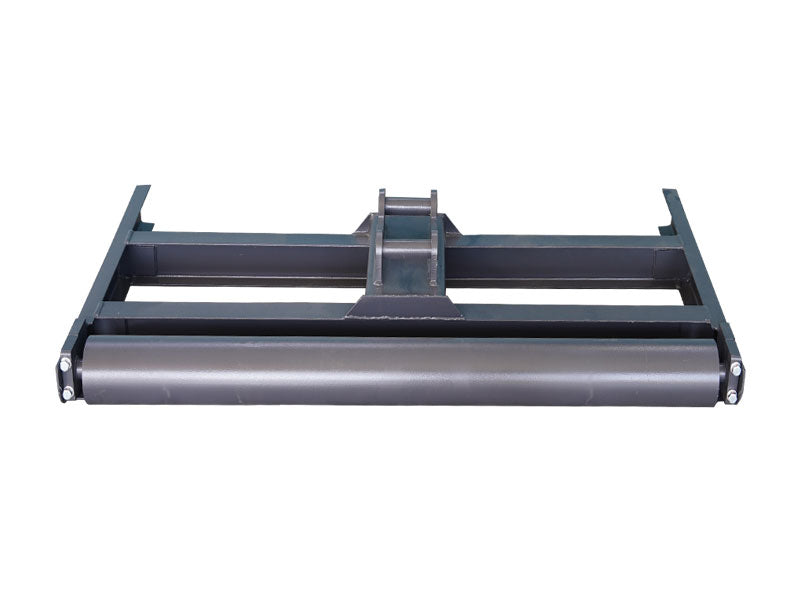

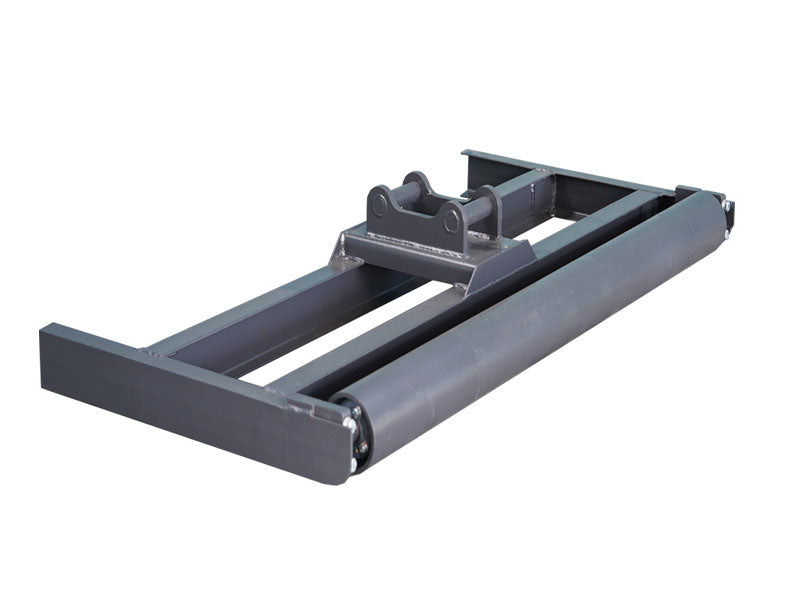

Precision-Machined Rear Roller — 152mm (Mini) & 220mm (Mid to Large) for Consistent Surface Compaction
The precision-machined rear compaction roller is sized to match the excavator class: 152mm diameter on the 2–3.5T models for compact residential and garden applications, and 220mm diameter on the 6–18T models for commercial construction, road maintenance, and civil engineering compaction requirements. The precision machining ensures consistent contact pressure across the full roller width, producing a uniformly compacted surface without ridging or uneven compaction.
Applications — Paving Foundation, Block Paving, Tarmac, Landscaping
- Block paving preparation — grade and compact sand/aggregate base in one pass
- Tarmac laying foundation — sub-base leveling and compaction before asphalt
- Residential driveways & garden projects — compact mini excavator, 152mm roller
- Topsoil & sand spreading — level and compact prior to block paving
- Gravel & aggregate surfaces — level and compact in one pass
- Trench backfill — spread and compact backfill material
- Drainage gradient shaping — precise grade with immediate compaction
- Road maintenance — gravel road grading and compaction
Five Models — S40 to S70, 2T to 18T
| Model | Width (mm) | Dimensions W×D×H (mm) | Roller Dia. (mm) | Bracket | Excavator | Weight (kg) |
|---|---|---|---|---|---|---|
| ME-LG1500-S40 | 1,500 | 1,500×805×278 | 152 | S40 | 2–3.5T | 149 |
| ME-LG2000-S40 | 2,000 | 2,000×1,005×278 | 152 | S40 | 2–3.5T | 185 |
| E-LG2500-S50 | 2,500 | 2,500×1,260×400 | 220 | S50 | 6–8T | 414 |
| E-LG2500-S60 | 2,500 | 2,500×1,260×420 | 220 | S60 | 10–14T | 431 |
| E-LG3000-S70 | 3,000 | 3,000×1,520×475 | 220 | S70 | 16–18T | 538 |
Key Features
- Grade & compact in one pass — eliminate separate compactor, reduce machine hours
- Precision-machined rear roller — 152mm (2–3.5T) & 220mm (6–18T)
- 1,500–3,000mm working width — residential to large civil projects
- S40 / S50 / S60 / S70 — direct OEM bracket fitment, no custom adapters
- Block paving, tarmac, landscaping, trench backfill, drainage gradient
- High-strength structural steel — accurate site contours, consistent results
- 149–538kg | 5 standard configurations
Technical Drawing:
