LANDYINDUS Excavator Hydraulic Broom Sweeper Attachment 1–2.7m | 2–14 Ton | Road & Site Sweeper

Sweep Roads. Clear Sites. No Dedicated Sweeper Required.

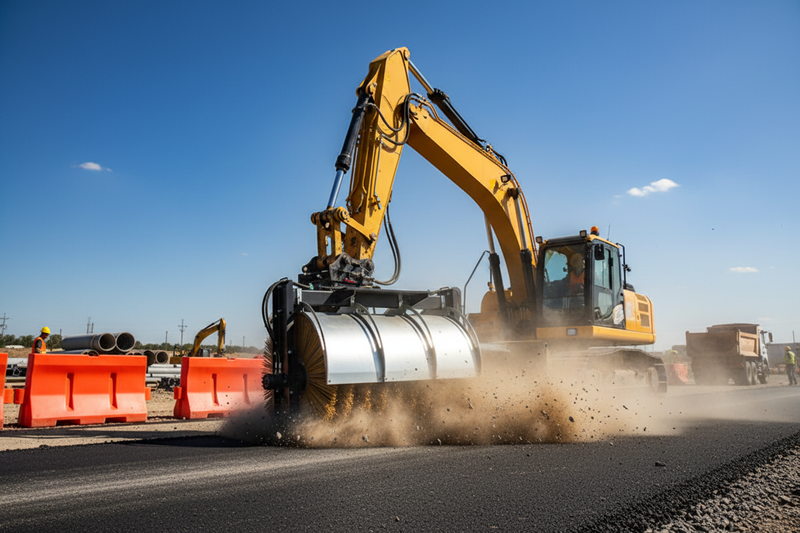

The LANDYINDUS E-PH Excavator Hydraulic Broom Sweeper transforms your existing excavator or backhoe loader into a high-capacity sweeping machine — clearing construction debris, loose aggregate, mud, sand, leaves, and general site waste from road surfaces, hardstand areas, warehouse floors, airport aprons, and any paved or compacted surface. Available in five width configurations from 1,000 mm to 2,700 mm, the E-PH series suits excavators from 2 to 14 tonnes.

Dual-Motor Drive: Consistent Torque Across the Full Sweep Width

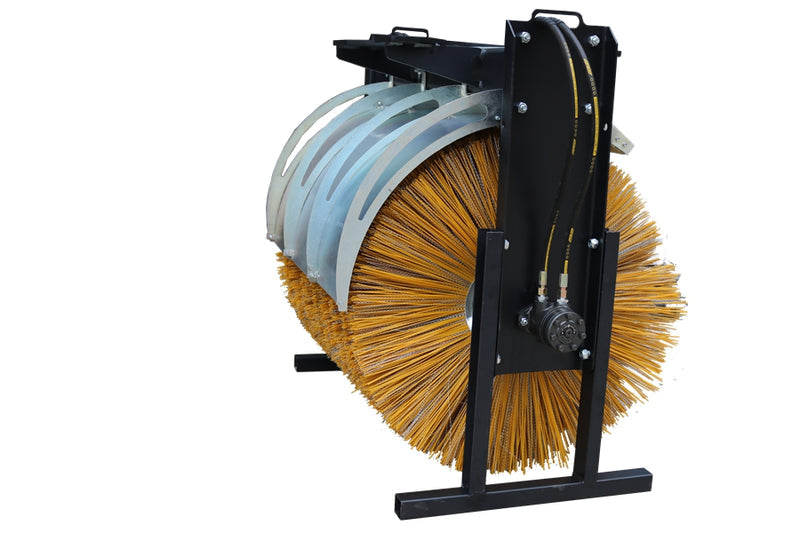

The E-PH is powered by two independent hydraulic motors driving the broom roller simultaneously. Unlike single-motor alternatives, the dual-motor configuration delivers higher and more consistent rotational torque across the full working width — even under high-resistance conditions such as heavy debris loads, wet material, or compacted surface contamination. The result: a cleaner, more uniform sweep finish in a single pass with fewer repeat passes required.

Integrated Support Legs — No Cab Exit Required

Built-in support legs are always deployed and ready for use, allowing the broom to be set down on any surface without tipping. No need to exit the cab to position support stands, and no risk of brush damage during attachment or detachment — reducing setup time on every job.

Rapid Brush Replacement — No Specialist Tools

Brush elements are designed for fast replacement without specialist tools or extended downtime. On busy sites where sweeping must resume quickly after brush wear, this directly reduces the cost of replacement and the time required to return to operation.

Five Width Configurations for Every Excavator Class

• ME-PH100 — 1,000 mm | 22 brushes | 190 kg | Suits 2–2.5T compact excavators | Narrow paths, footways, confined areas
• E-PH150 — 1,500 mm | 33 brushes | 235 kg | Suits 4–6T excavators | General road and site sweeping
• E-PH180 — 1,800 mm | 40 brushes | 260 kg | Suits 6–8T excavators | General road and site sweeping
• E-PH220 — 2,200 mm | 49 brushes | 290 kg | Suits 10–12T excavators | Wide road surfaces and large hardstand areas
• E-PH270 — 2,700 mm | 60 brushes | 330 kg | Suits 12–14T excavators | Airport aprons, port facilities, maximum width per pass

Applications

Road construction and maintenance · Civil site preparation and cleanup · Post-demolition debris clearing · Municipal street and footpath sweeping · Warehouse and hardstand floor cleaning · Airport apron maintenance

A bolt-on bracket hitch is available upon request. Contact our team for hydraulic compatibility confirmation, brush specification advice, volume pricing, and lead time information.

Technical Drawing:

Specifications
