LANDYINDUS Excavator Hydraulic Drive Auger | Planetary Gear | 300mm & 460mm Bits | 1,160mm Drill Pipe | Euro Quick Attach | T-AG23

LANDYINDUS T-AG23 Excavator Hydraulic Drive Auger | Sealed Planetary Gear Drive | 300mm and 460mm Auger Bits | 1160mm Drill Pipe | 8mm Flight Thickness | Euro Quick Attach

The LANDYINDUS T-AG23 Hydraulic Drive Auger is a heavy-duty auger attachment engineered for excavators and loaders that demand reliable, high-torque drilling performance across construction, landscaping, fencing, and foundation applications. Powered by a sealed hydraulic motor driving through a planetary gear reduction system, this auger drive delivers consistent torque output and long service life with minimal maintenance.

Sealed Planetary Gear Drive

At the core of the T-AG23 is a sealed planetary gear reduction drive that converts hydraulic flow into high-torque rotational output with maximum efficiency. The all-gear planetary design eliminates the wear and failure points associated with chain or belt-driven auger drives, delivering longer service life and significantly lower maintenance costs. The sealed housing protects internal gear components from soil, water, and debris ingress during drilling operations.

Two Auger Bits Supplied: 300mm and 460mm

Supplied with two auger bit diameters: 300mm and 460mm. The 8mm auger flight thickness ensures aggressive soil penetration and efficient spoil removal in clay, loam, and compacted ground. The 1,160mm drill pipe length provides the reach required for deep-hole drilling on full-size excavator applications.

Euro Quick Attach Interface

Fitted with a Euro quick attach mounting interface for fast, tool-free installation and removal. No welding or permanent modification required. Compatible with excavators and loaders running Euro quick attach systems across multiple machine brands and tonnage classes.

Compatibility: Operating at 16 MPa and 75 LPM. Please verify your machine auxiliary hydraulic circuit meets these parameters before purchase. Contact us to confirm compatibility with your specific machine model.

Applications

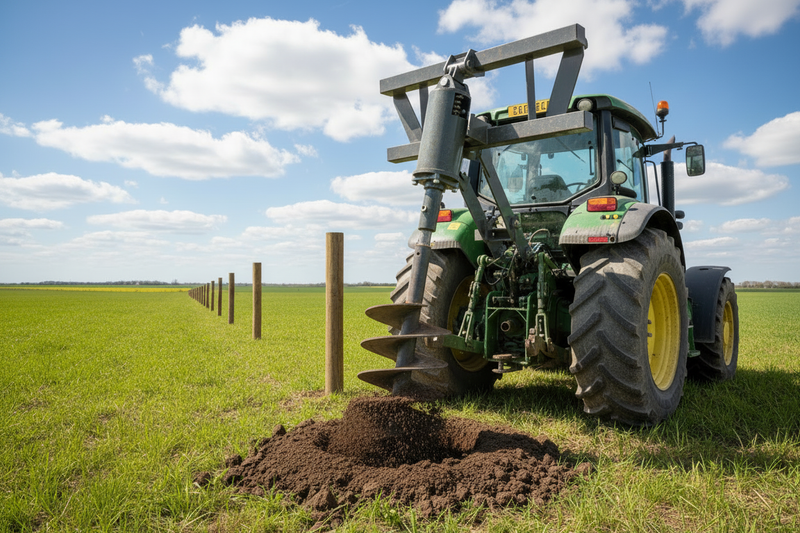

Post hole drilling, tree planting, sign installation, pier and pile foundation work, soil sampling, and general earthmoving. Compatible with Euro quick attach carriers across multiple brands.

Key Features

• Sealed planetary gear drive: all-gear, no chain or belt wear points
• Two auger bits supplied: 300mm and 460mm
• 8mm flight thickness: aggressive penetration in clay, loam and compacted ground
• 1,160mm drill pipe: deep-hole reach for full-size excavator applications
• Euro quick attach: tool-free field installation, no welding required
• 16 MPa, 75 LPM, 194kg, 1751 x 1144 x 1173mm

Technical Drawing:

Specifications
