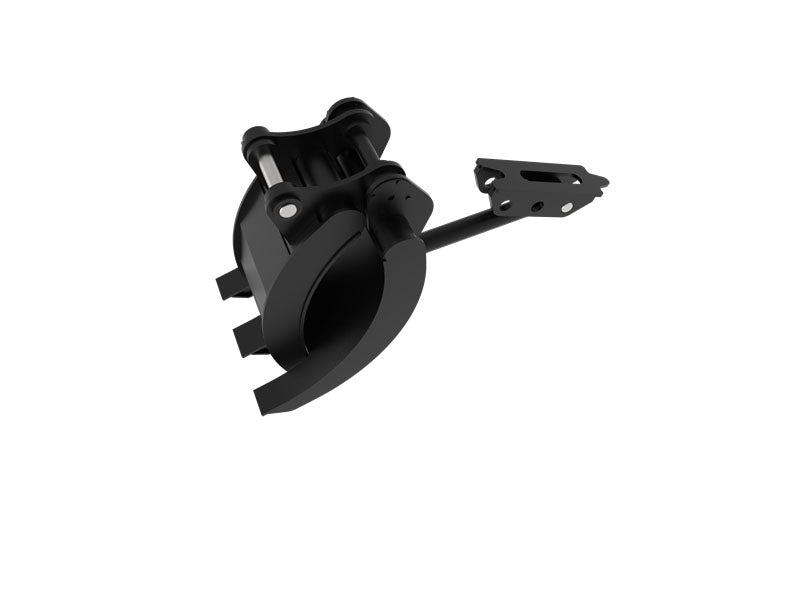

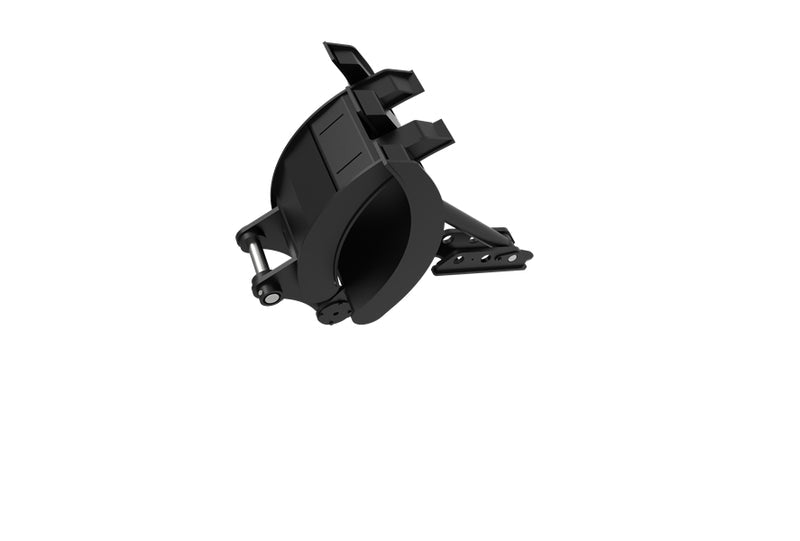

LANDYINDUS Excavator Mechanical Grapple | No Additional Hydraulic Lines or Valves Required | 300–3,369mm Opening Range | 30-Ton Class | 16 MPa | 60 LPM | 1,647–2,954kg | Land Clearing, Forestry, Demolition & Waste Sorting | E-TD / E-PD Series
The LANDYINDUS Excavator Mechanical Grapple delivers industrial-grade gripping and material handling performance for 30-ton class excavators — with no additional hydraulic lines, valves, or system modifications required. Engineered from heavy-duty alloy steel with a robust mechanical clamshell design, this grapple is built for the most demanding land clearing, forestry, and waste sorting applications where reliability, reach, and raw clamping force are non-negotiable.
No Additional Hydraulics — Straightforward Installation, Compatible with Standard Excavator Hydraulic Setups
The defining advantage of a mechanical grapple is its operational simplicity. Because no extra hydraulics are needed to open and close the grab, installation is straightforward and compatible with a wide range of standard excavator hydraulic setups. This makes the LANDYINDUS mechanical grapple a cost-effective upgrade for operators who want to expand machine capability without the expense or downtime of a full hydraulic grapple conversion. Once mounted, the grapple is ready to work.
Mechanical Grapple vs Hydraulic Grapple — Simplicity & Cost vs Precision & Rotation
| Feature | Hydraulic Grapple | Mechanical Grapple (This) |
|---|---|---|
| Additional hydraulics | Yes — dedicated circuit required | No — standard excavator hydraulics |
| Valve modification | Yes | No |
| Installation complexity | High | Low — mount and work |
| Rotation | Often available (360°) | Fixed — excavator arm rotation only |
| Jaw control | Hydraulic — cab-controlled | Mechanical — arm crowd/curl action |
| Cost | Higher | Lower — no hydraulic components |
| Best for | Precision sorting, log processing | High-volume land clearing, bulk material handling |
300–3,369mm Opening Range — Handle Materials from Small Debris to Large Timber and Root Balls
The opening range of 300–3,369mm across the three models provides exceptional versatility for handling materials of vastly different sizes and shapes — from small concrete rubble and rebar bundles at the minimum opening through to large root balls, timber logs, and bulk brush at maximum opening. Select the model based on the maximum material size you need to handle on your most demanding application.
Three Models — 30-Ton Class, Full Specifications
| Model | Dimensions L×W×H (mm) | Opening Range (mm) | Pressure (MPa) | Flow (LPM) | Weight (kg) | Excavator |
|---|---|---|---|---|---|---|
| E-TD1553 | 2,465×1,092×1,694 | 300–2,925 | 16 | 60 | 1,647 | 30T |
| E-PD18474 | 2,504×1,372×1,703 | 300–3,054 | 16 | 60 | 1,976 | 30T |
| E-PD18162 | 2,625×1,524×1,683 | 300–3,369 | 16 | 60 | 2,954 | 30T |
Model selection guidance: All three models suit 30-ton excavators and share the same 300mm minimum opening. Select by maximum opening required: E-TD1553 (2,925mm, 1,647kg) for standard land clearing and demolition; E-PD18474 (3,054mm, 1,976kg) for larger timber and root balls; E-PD18162 (3,369mm, 2,954kg) for maximum opening on the largest bulk material handling tasks. Note the significant weight step to E-PD18162 — confirm your excavator’s lift capacity at working radius before ordering.
Applications
- Land clearing — tree stumps, root balls, brush, large timber removal
- Forestry — logs, branches, organic waste handling
- Demolition — concrete rubble sorting, rebar, mixed debris, salvage
- Construction sites — bulk material handling, site cleanup
- Waste sorting — mixed industrial and construction waste separation
- Agricultural — large root and organic waste removal
Key Features
- No additional hydraulic lines or valves — standard excavator hydraulic setup
- 300–3,369mm opening range — small debris to large timber and root balls
- 30-ton class — industrial-grade clamping force
- 16 MPa | 60 LPM — standard excavator hydraulic integration
- Heavy-duty alloy steel — impact, wear & structural fatigue resistance
- 1,647–2,954kg | 3 size configurations
Technical Drawing:
