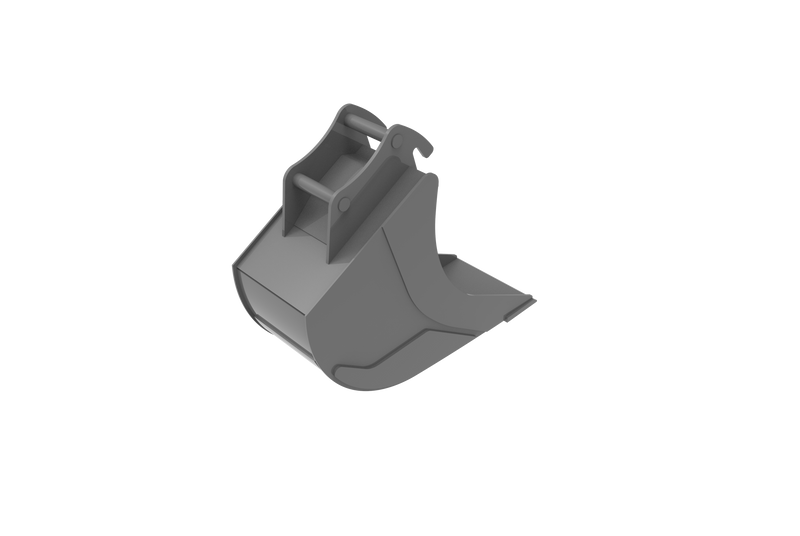

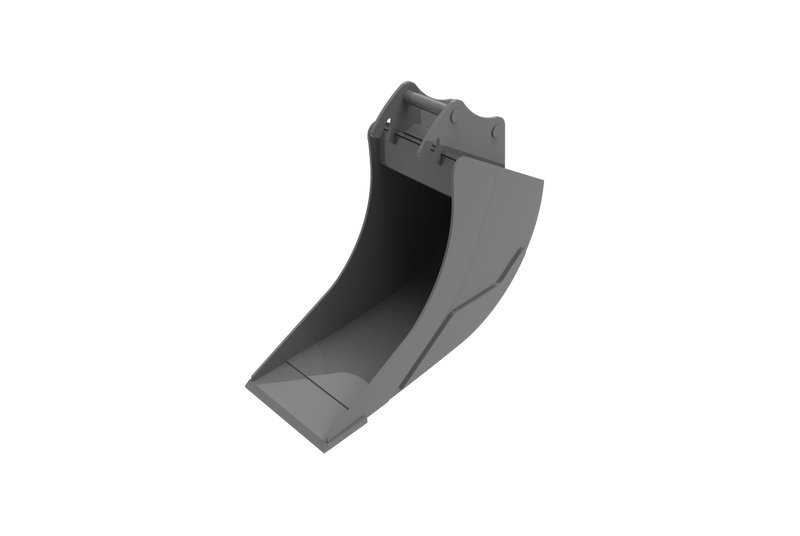

The LANDYINDUS Excavator Narrow Trenching Bucket is a purpose-engineered digging attachment designed specifically for the precision excavation of narrow trenches required for underground cable laying, pipe installation, drainage works, conduit routing, fibre optic installation, and any civil or utility application where trench width must be minimised to reduce excavation volume, limit surface disruption, and control the cost of backfilling and reinstatement. Available in six width configurations from 250 mm to 600 mm and compatible with excavators from 1 to 18 tonnes across the S30 to S70 bracket range, the trenching bucket series provides a comprehensive narrow-trench solution for utility contractors, civil construction companies, telecommunications infrastructure crews, and drainage specialists.

Precision Trench Geometry — Clean Vertical Sidewalls, Minimal Over-Excavation

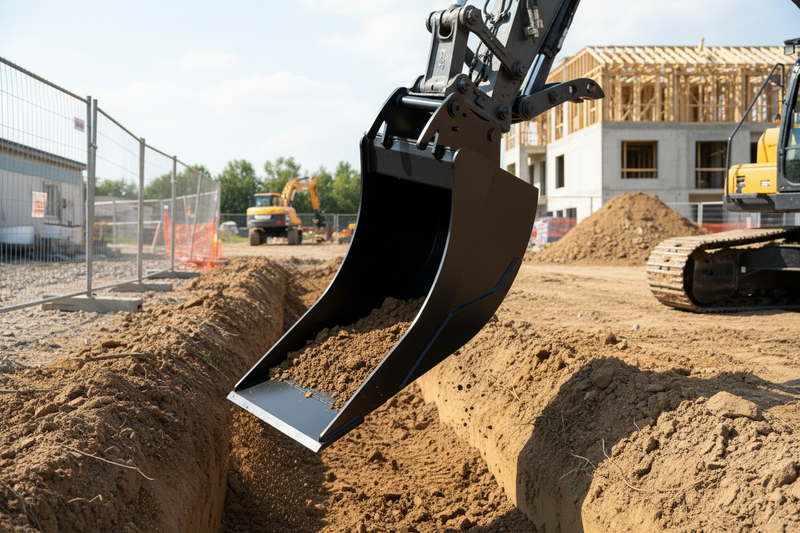

A purpose-built narrow trenching bucket produces clean, vertical sidewalls with minimal over-excavation and a consistent trench profile from surface to formation level — critical for cable and pipe installations where the trench must meet specified width tolerances for bedding material placement, pipe surround compaction, and regulatory compliance. The narrow profile also minimises the volume of spoil generated per linear metre of trench, reducing spoil removal costs and the volume of backfill material required for reinstatement — a significant cost saving on long-run cable and pipe laying projects where trench length is measured in hundreds or thousands of metres.

Deep Profile Geometry — Full Trench Depth in a Single Pass

The deep profile geometry maximises the volume of material removed per digging cycle relative to the narrow bucket width. The extended bucket depth allows the operator to reach the required trench depth in one clean digging motion, extract a full column of material from surface to formation, and deposit it cleanly to the spoil heap in a single cycle — minimising digging cycles per linear metre, reducing machine hours per metre of completed trench, and maximising productivity on long-run trenching projects where cycle time directly determines daily output and project cost.

Plate Thickness Specified by Excavator Class — 6mm to 10mm

Steel plate thickness is specified according to the operating weight and digging force of the host excavator, ensuring the bucket structure is neither over-engineered for light machines nor under-specified for heavy-duty applications:

• 1–6T models — 6mm main plate | soft to medium ground conditions
• 6–8T models — 6–8mm main plate | commercial utility & civil trenching
• 10–14T model — 8mm main plate | hard ground & compacted clay
• 16–18T model — 10mm main plate | rocky soil & maximum digging force applications

Six Models — 1T to 18T Excavator Classes

• ME-02T.TRB.250-S30 — 250mm wide | 250×695×550mm | 6mm plate | 0.03m³ | S30 | 48kg | Suits 1–2T
• ME-03T.TRB.270-S40 — 270mm wide | 270×711×608mm | 6mm plate | S40 | 53kg | Suits 2–3.5T
• ME-06T — 300mm wide | S45 | 112kg | Suits 4–6T
• E-08T — 400mm wide | S50 | 186kg | Suits 6–8T
• E-14T — 500mm wide | S60 | 316kg | Suits 10–14T
• E-18T — 600mm wide | S70 | 563kg | Suits 16–18T

Key Features

• 250–600mm widths — six configurations matched to trench specification requirements
• Clean vertical sidewalls — meets width tolerances for cable, pipe & conduit bedding
• Deep profile — full trench depth in a single digging pass
• Minimises spoil volume & backfill cost on long-run trenching projects
• Plate thickness 6–10mm — specified by excavator class and ground conditions
• S30, S40, S45, S50, S60, S70 bracket options — suits 1–18T excavators
• Tooth and side cutter options available for hard ground applications
• No dedicated trenching machine required — uses excavator already on site

Technical Drawing:

Specifications
