LANDYINDUS Excavator Pallet Fork Frame | 1,500–8,000kg SWL | Class 2A, 3A & 4A | S30, S40, S45, S50, S60, S70 & B20 | 1–18T | 1,200mm & 1,500mm Frame Width | No Separate Forklift Required

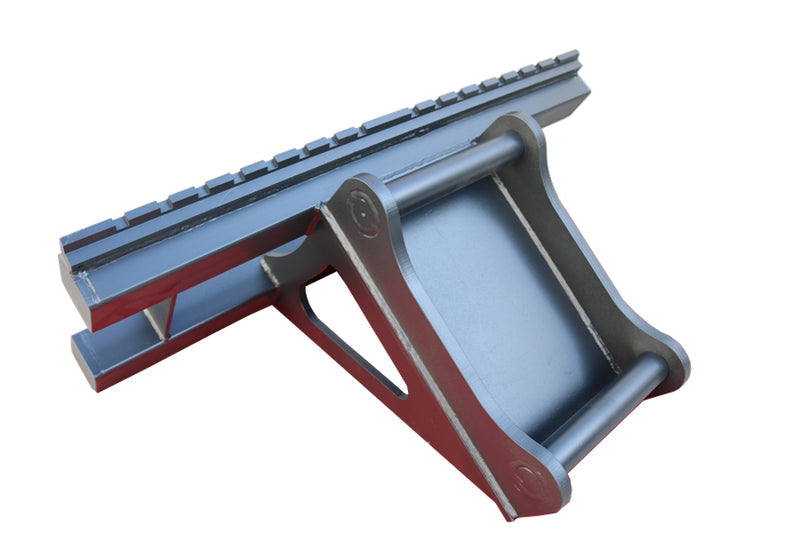

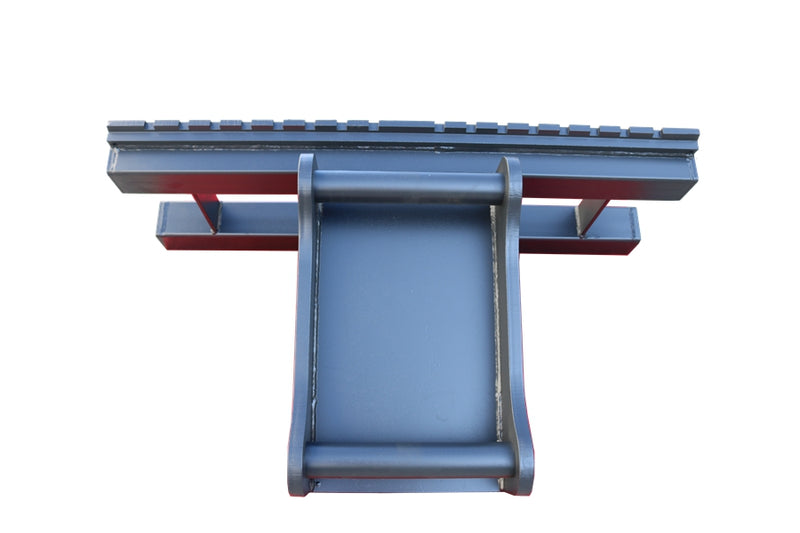

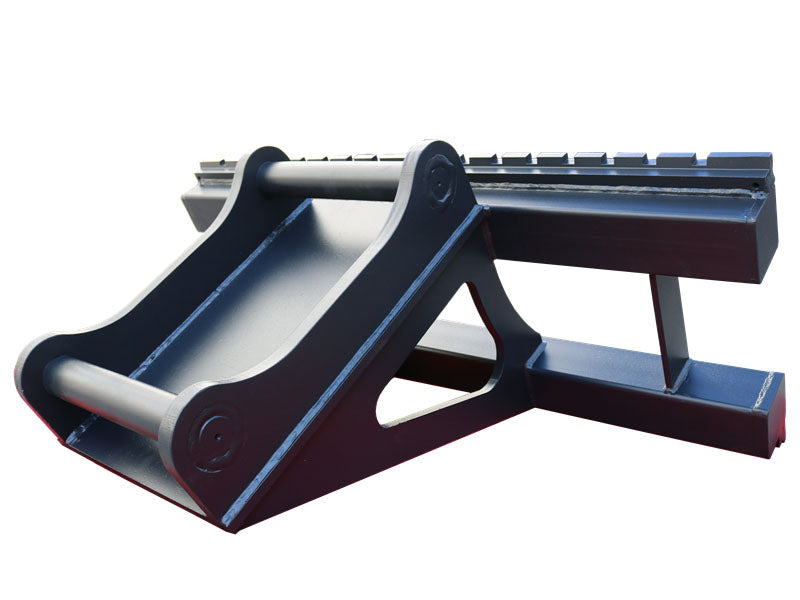

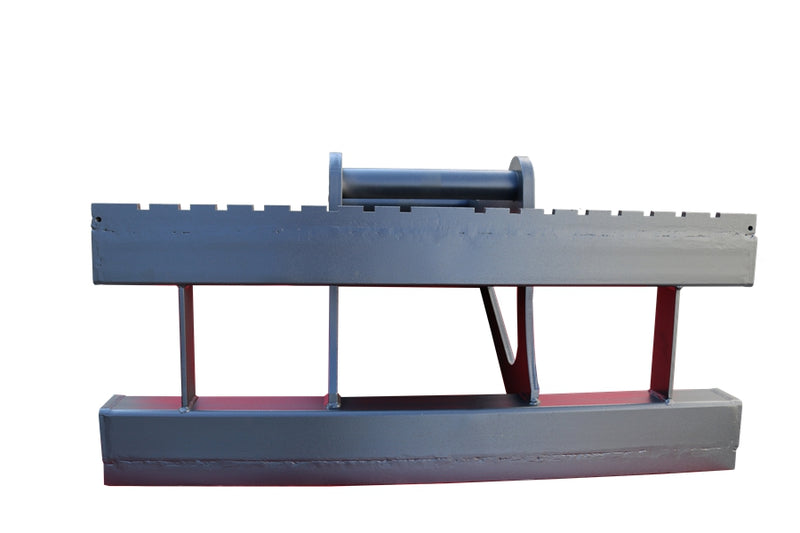

The LANDYINDUS Excavator Pallet Fork Frame is a heavy-duty mechanical pallet fork attachment engineered for 1–18 ton excavators across Class 2A, 3A, and 4A configurations, providing a versatile and cost-effective solution for lifting, transporting, and positioning palletized loads, construction materials, landscaping supplies, and agricultural goods directly from the excavator arm — without the need for a separate forklift or telehandler on site.
1,500–8,000kg SWL — Mini Excavator Residential Sites to Large Commercial Civil Projects
Available in safe working loads (SWL) from 1,500kg to 8,000kg and frame widths of 1,200mm and 1,500mm, the series covers the full range of excavator material handling tasks from residential construction sites through to large-scale commercial earthmoving and civil engineering projects where heavy pallet loads and bulk material movement are required daily.
Class 2A, 3A & 4A — Fork Tine Dimensions and Load Class Explained
| Class | Fork Tine Section (mm) | SWL Range | Typical Application |
|---|---|---|---|
| 2A | 100×40 | 1,500–2,500kg | Mini to compact excavator, residential & light commercial |
| 3A | 125×50 | 5,000–6,000kg | Mid to large excavator, commercial construction & civil |
| 4A | 150×60 | 8,000kg | Large excavator, heavy industrial & bulk material handling |
S30–S70 & B20 — Broadest Bracket Compatibility in the LANDYINDUS Excavator Range
Compatible with S30, S40, S45, S50, S60, S70, and B20 bracket types, the pallet fork frame installs directly onto standard excavator quick couplers across all major makes and models without custom adapters. Also available without a bracket with a flat mounting surface for operators who prefer to fit their own existing coupler system for maximum flexibility on mixed-fleet job sites.
Eight Models — Full Specification Table
| Model | Class | SWL (kg) | Frame W×D×H (mm) | Fork Tine (mm) | Bracket | Excavator | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ME-2A-1200-1.5T-S30 | 2A | 1,500 | 1,200×367×461 | 100×40 | S30 | 1–2T | 60 |
| ME-2A-1200-2.5T-S40 | 2A | 2,500 | 1,200×489×474 | 100×40 | S40 | 2–3.5T | 84 |
| E-2A-1200-2.5T-S45 | 2A | 2,500 | 1,200×616×487 | 100×40 | S45 | 4–6T | 106 |
| E-2A-1200-2.5T-S50 | 2A | 2,500 | 1,200×616×487 | 100×40 | S50 | 6–8T | 129 |
| E-3A-1200-5T-S60 | 3A | 5,000 | 1,200×719×614 | 125×50 | S60 | 10–14T | 167 |
| E-3A-1200-6T-S70 | 3A | 6,000 | 1,200×861×657 | 125×50 | S70 | 16–18T | 260 |
| E-3A-1500-6T-S70 | 3A | 6,000 | 1,500×861×657 | 125×50 | S70 | 16–18T | 279 |
| E-4A-1500-8T-B20 | 4A | 8,000 | 1,500×1,053×837 | 150×60 | B20 | 10–14T | 257 |
Excavator Pallet Fork vs Separate Forklift — When Excavator-Mounted Wins
| Feature | Separate Forklift / Telehandler | LANDYINDUS Excavator Pallet Fork (This) |
|---|---|---|
| Equipment needed | Separate machine — hire or own | Existing excavator + fork frame |
| Mobilization | Separate transport, setup | None — excavator already on site |
| Confined sites | Limited — forklift turning radius | Excavator maneuverability |
| Rough terrain | Forklift limited on uneven ground | Excavator tracks — full rough terrain |
| Attachment change | N/A — separate machine | Quick coupler — swap in minutes |
| SWL range | Varies by machine | 1,500–8,000kg matched to excavator class |
Applications
- Construction sites — palletized blocks, bagged cement, steel sections, pipe bundles
- Agricultural operations — feed bags, fertilizer pallets, bale handling
- Landscaping — paving slabs, turf rolls, bagged aggregate, plant stock
- Site logistics — material positioning, loading/unloading delivery vehicles
- Civil engineering — precast elements, drainage components, kerb units
Key Features
- 1,500–8,000kg SWL — Class 2A (100×40mm), 3A (125×50mm) & 4A (150×60mm)
- S30 / S40 / S45 / S50 / S60 / S70 / B20 — broadest bracket range in LANDYINDUS excavator series
- Also available without bracket — flat mounting surface for own coupler system
- 1,200mm & 1,500mm frame widths — standard pallet and wide-load configurations
- ISO-standard fork tine dimensions — compatible with standard pallet fork tine sets
- Black paint finish | high-strength structural steel | 60–279kg
- No separate forklift required — maximize existing excavator fleet utility
Technical Drawing:
