LANDYINDUS Excavator Tiltrotator 360° Rotation Quick Coupler | 1–25T | S30 S40 S50 S60 S70 S80

LANDYINDUS Excavator Tiltrotator 360° Rotation Quick Coupler | 1–25T | S30–S80

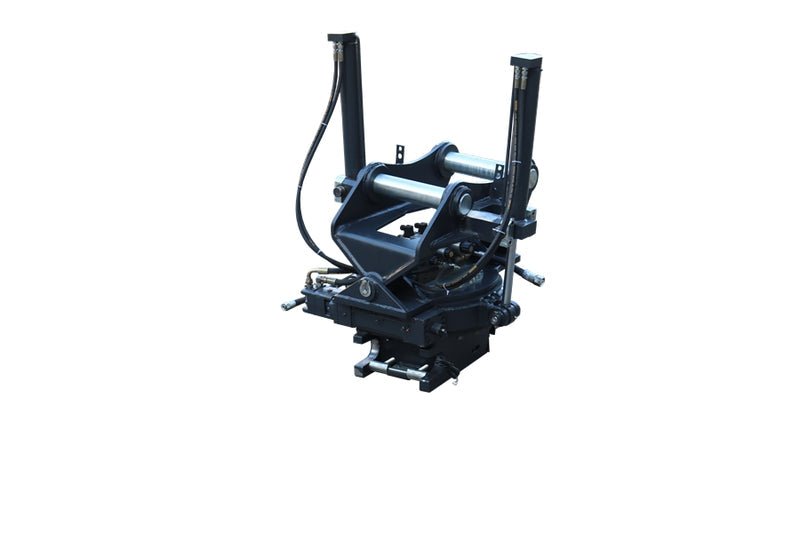

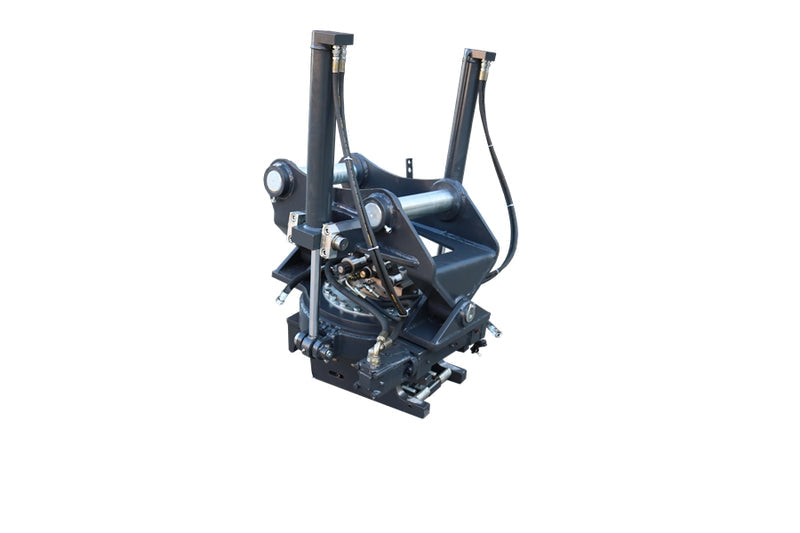

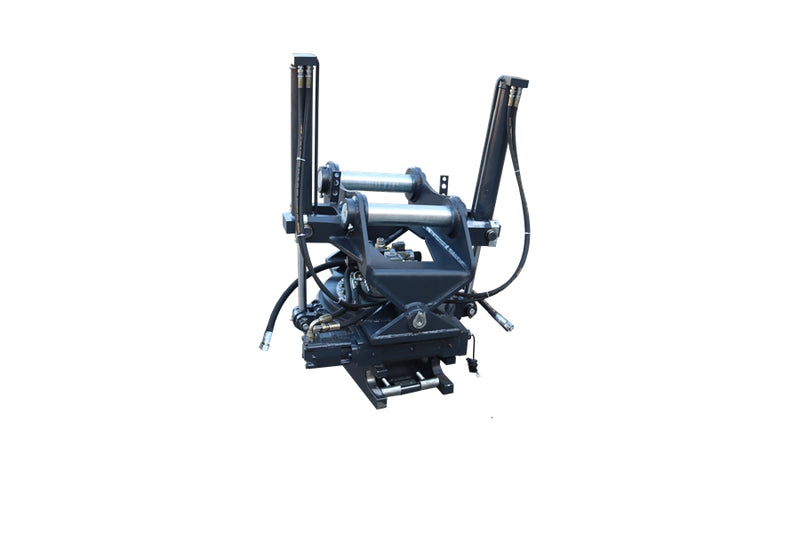

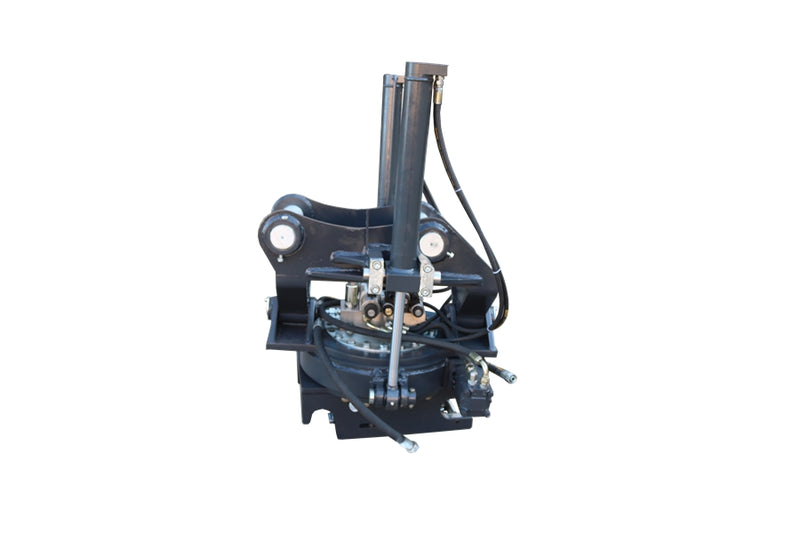

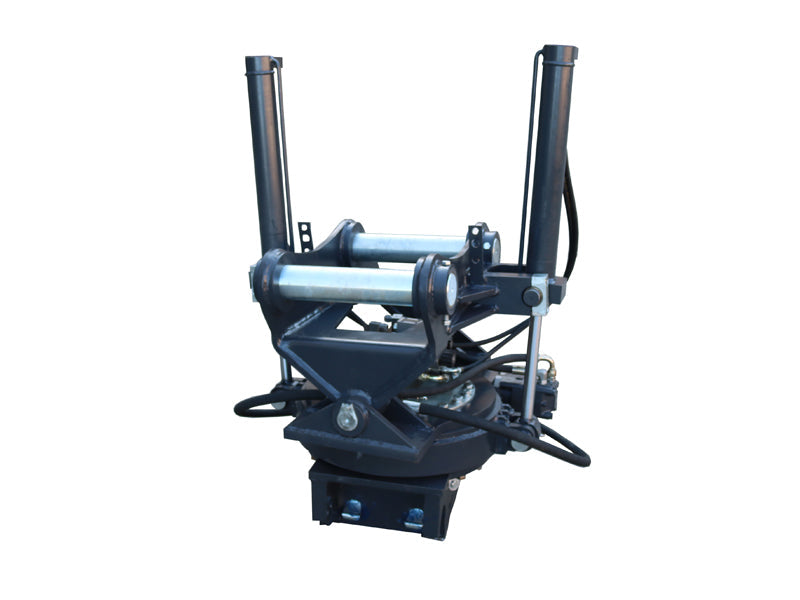

The LANDYINDUS Tiltrotator combines 360-degree continuous rotation with a dual-acting hydraulic tilt mechanism to give operators complete freedom of tool positioning — without repositioning the machine. Available across excavator classes from 1T to 25T with bracket options from S30 through S80, this tiltrotator series delivers the power, precision, and durability required for civil engineering, landscaping, utility installation, and demolition applications.

Solid Cast Steel Gear Housing — Built for Continuous Cyclic Loading

The structural foundation of this tiltrotator is its solid cast steel gear housing, with both top and bottom sections manufactured from high-grade cast steel for maximum rigidity and impact resistance. Hardened shafts and piston rods are used throughout the tilt and rotation assembly to ensure long-term reliability under continuous cyclic loading. Dual-acting tilt cylinders provide smooth, responsive tilt control in both directions — giving operators the tactile precision needed for fine grading, pipe laying, and confined-space work where tool angle is critical.

360° Rotation + Hydraulic Tilt — One Attachment, Full Positioning Freedom

The 360-degree continuous rotation capability ensures any attachment can be positioned at the optimal angle for the task at hand, regardless of the machine's orientation relative to the work face. Combined with the dual-acting hydraulic tilt, operators achieve complete tool positioning freedom that eliminates the need to reposition the machine — reducing cycle times and improving precision on every pass.

Integrated Quick Coupler — Switch Attachments Without Leaving the Cab

The integrated quick coupling function allows rapid attachment changes from the cab, dramatically increasing machine versatility and reducing downtime between tasks. Whether paired with a grading bucket, digging bucket, compaction wheel, or hydraulic hammer, the tiltrotator enables a single excavator to perform the work of multiple specialised machines — reducing equipment costs and improving overall job site efficiency.

OEM-Compatible Brackets — S30 to S80

Bracket options from S30 through S80 provide direct OEM-compatible fitment across leading excavator brands including Caterpillar, Komatsu, Volvo, Sany, and Liebherr. All models are precision-manufactured to strict dimensional tolerances and supplied with technical drawings for pre-purchase fitment verification. Custom configurations and bracket adaptations are available upon request.

Seven Models — 1T to 25T Excavator Classes

• ME-X02-S30 — Axle Base 230.5mm | 90 kg | Suits 1–2T
• ME-X04-S40 — Axle Base 300.5mm | 120 kg | Suits 2–3.5T
• E-X07-S45 — Axle Base 430.5mm | 200 kg | Suits 4–6T
• E-X12-S50 — Axle Base 430.5mm | 350 kg | Suits 6–8T
• E-X18-S60 — Axle Base 480.5mm | 500 kg | Suits 10–14T
• E-X26-S70 — Axle Base 600.5mm | 600 kg | Suits 16–18T
• E-X32-S80 — Axle Base 670.5mm | 850 kg | Suits 20–25T

Key Features

• 360° continuous rotation with dual-acting hydraulic tilt
• Solid cast steel gear housing — top and bottom
• Hardened shafts and piston rods for long-term reliability
• Integrated quick coupler — attachment changes from the cab
• S30–S80 OEM-compatible bracket options
• Compatible with Cat, Komatsu, Volvo, Sany, Liebherr
• Supplied with technical drawings for fitment verification
• Custom configurations available on request

Technical Drawing:

Specifications
