LANDYINDUS Extra Long Container Loading Ramp | 8,000kg SWL | 3,000mm Platform — Deep Container Reach | Gentler Incline | Flip-Up Front + Fixed Side Fork Pockets | 6mm Steel | Enamel Finish | F-CRL8

LANDYINDUS F-CRL8 Extra Long Container Loading Ramp | 8,000kg SWL | 3,000mm Platform — Deep Container Reach, Gentler Incline | Flip-Up Front Tine Pockets + Fixed Side Fork Pockets | 6mm High-Strength Steel | Enamel Paint Finish | Warehouse, Freight Terminal & Port

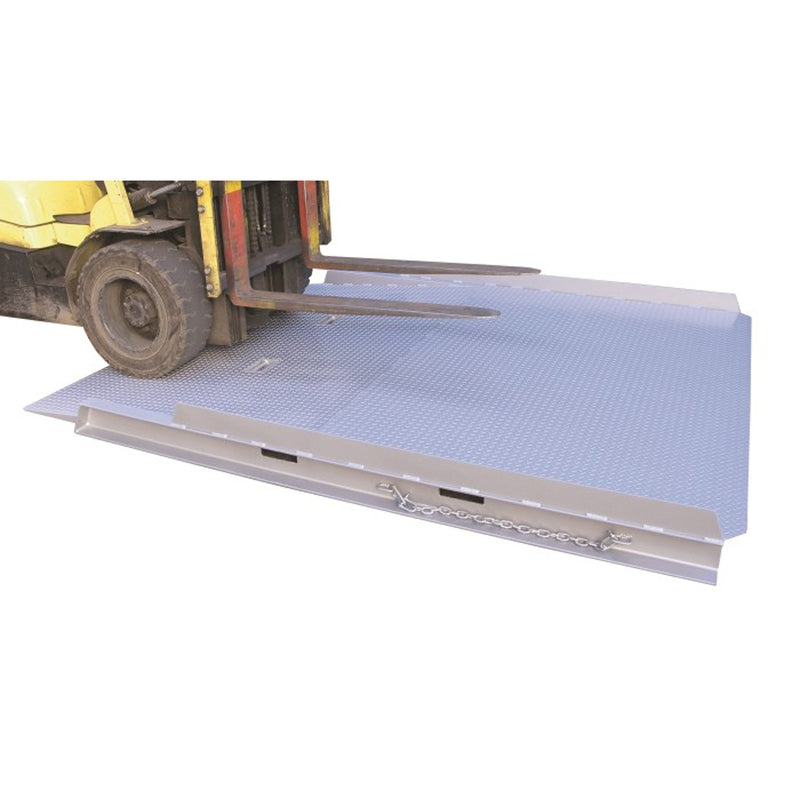

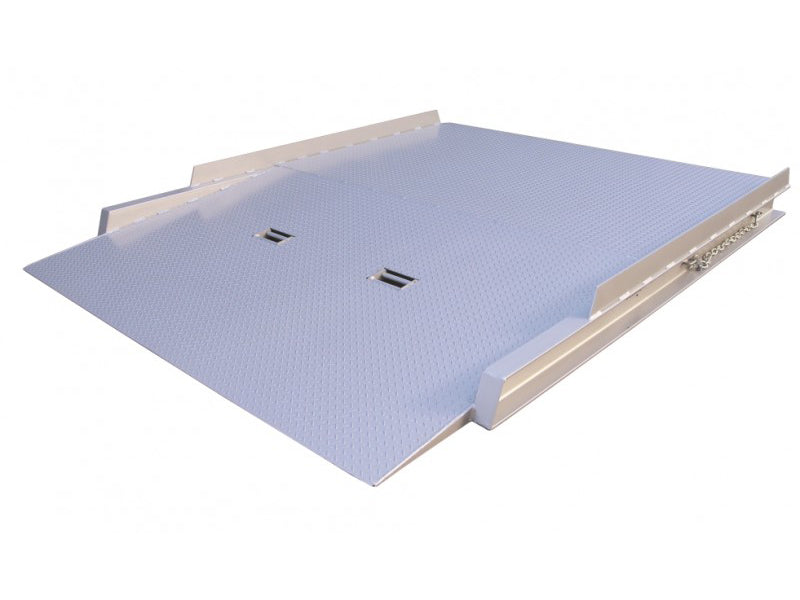

The LANDYINDUS F-CRL8 is a heavy-duty steel container loading ramp engineered specifically for deep-container operations where standard-length ramps fall short. With an overall platform length of 3,000mm — significantly longer than the 1,250–2,000mm designs in the standard container ramp range — this ramp enables forklifts to reach the first and second pallet rows inside a shipping container with ease, eliminating the need for manual repositioning, secondary handling equipment, or time-consuming pallet shuffling during unloading operations.

3,000mm Platform — Deep Container Reach & Gentler Incline Angle

The extended 3,000mm platform length delivers two simultaneous advantages that shorter ramps cannot provide together:

• Deep container reach: at 3,000mm, the ramp extends significantly further into the container approach zone, allowing forklift operators to reach the first and second pallet rows without the ramp falling short of the load position. Standard 1,700–2,000mm ramps require the forklift to make a steeper initial climb and then navigate a drop to the container floor — the F-CRL8 bridges this gap across the full 3-metre span.
• Gentler incline angle: the same height is bridged over a 3,000mm run rather than 1,700–2,000mm, creating a significantly shallower gradient. This reduces the risk of load instability, forklift tip, and cargo damage during entry and exit, while improving operator confidence and cycle speed in high-throughput unloading environments.

F-CRL8 vs Standard-Length 8T Ramps — When Length Matters

Complete Container Ramp Series — Full 9-Model Comparison

Flip-Up Front Tine Pockets + Fixed Side Fork Pockets — Three-Directional Repositioning

The flip-up front tine pockets add a third directional option for manoeuvring in confined loading bays, narrow container yards, and restricted dock areas where lateral access is limited. At 557kg, the F-CRL8 is the heaviest ramp in the series — the three-directional fork pocket system is essential for single-operator repositioning without additional labour.

6mm Steel Plate | Enamel Paint Finish — Corrosion Resistance for Outdoor & Port Use

The 6mm main plate provides the structural rigidity required for a 3,000mm span at 8,000kg SWL — a longer span requires greater plate stiffness to prevent mid-span deflection under load. The durable enamel paint finish provides long-term corrosion resistance for warehouses, outdoor construction yards, and port facilities where moisture, salt air, and cleaning chemicals accelerate steel surface degradation. This is the only model in the series with an enamel finish specified.

Applications

• Deep-container unloading — 20ft and 40ft containers, first and second pallet row access
• High-volume freight terminals — gentle incline, high cycle speed, operator confidence
• Port facilities — enamel corrosion resistance, salt-air and moisture environments
• Large distribution warehouses — wide-load pallets, large forklift class
• Construction logistics yards — heavy equipment, outdoor enamel-protected use

Key Features

• 3,000mm platform — deepest container reach, gentlest incline in the series
• 8,000kg SWL — maximum capacity, large counterbalance forklifts
• Flip-up front tine pockets + fixed side fork pockets — three-directional repositioning
• 6mm high-strength steel plate — 3,000mm span rigidity
• Enamel paint finish — corrosion resistance, outdoor & port environments
• 2,280mm wide platform — wide-span forklifts and oversized pallets
• 557kg | 3,000×2,280×220mm

Specifications

Technical Drawing
