LANDYINDUS Forklift Container Loading Ramp | 6,000kg SWL | 1,250mm | One-Piece Welded | Chain & D-Shackle Included | Forklift & Pallet Truck Compatible | 5mm Steel | Shipping Container, Curtain-Sider & Flatbed | F-CRN6

LANDYINDUS F-CRN6 Forklift Container Loading Ramp | 6,000kg SWL | 1,250mm Compact Length | One-Piece Welded Steel — No Component Separation Risk | Chain & D-Shackle Included | Forklift & Pallet Truck Compatible | 5mm High-Strength Steel

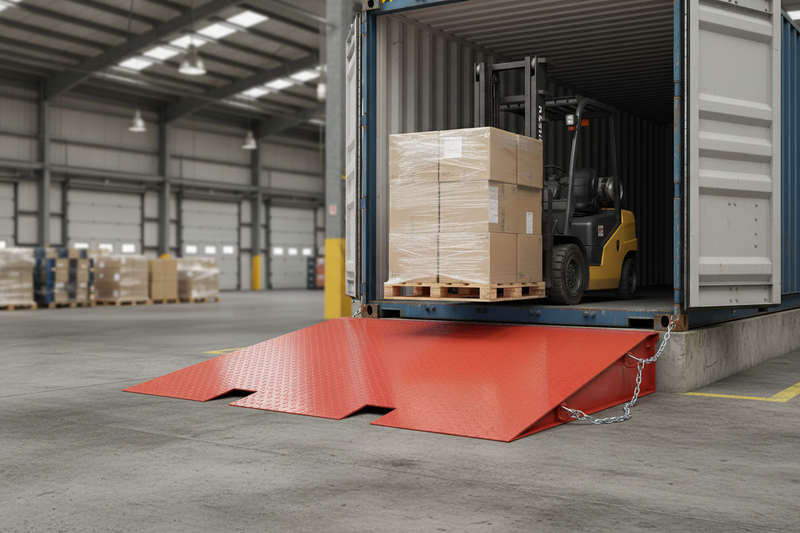

The LANDYINDUS F-CRN6 is a heavy-duty forklift container loading ramp designed for efficient, safe loading and unloading of shipping containers, curtain-siders, and flat-bed trailers in warehouses, distribution centres, logistics hubs, and freight terminals. With a 6,000kg SWL and compact 1,250mm length, the F-CRN6 is compatible with both standard forklifts and pallet trucks — making it one of the most versatile ground-level loading ramp solutions for facilities operating mixed fleets of handling equipment.

One-Piece Welded Construction — No Component Separation Risk, Rigid Under Repeated Loading

The one-piece welded steel construction eliminates the risk of component separation during use, providing a stable, rigid ramp surface that maintains structural integrity under repeated heavy-duty loading cycles. Multi-piece or hinged ramp designs introduce failure points at joints and pins — the F-CRN6’s single-piece weld construction removes these failure modes entirely, delivering consistent performance cycle after cycle with minimal maintenance requirements.

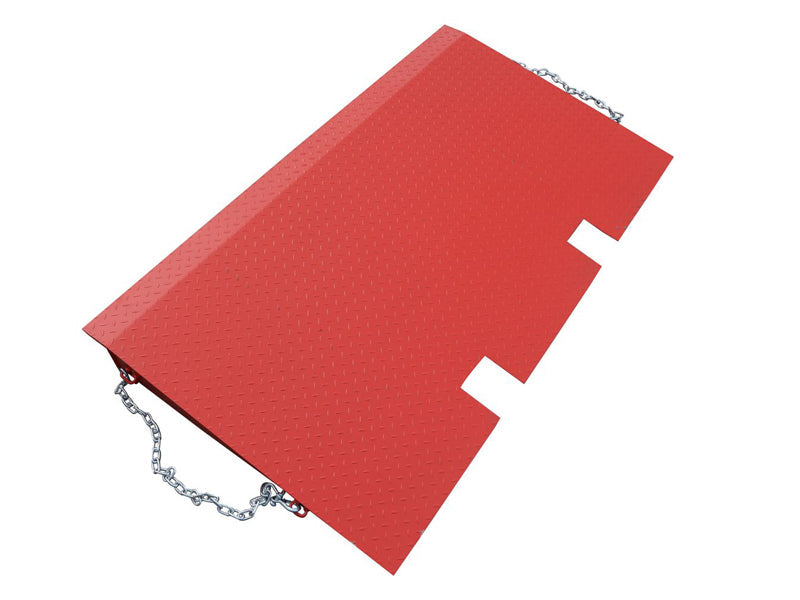

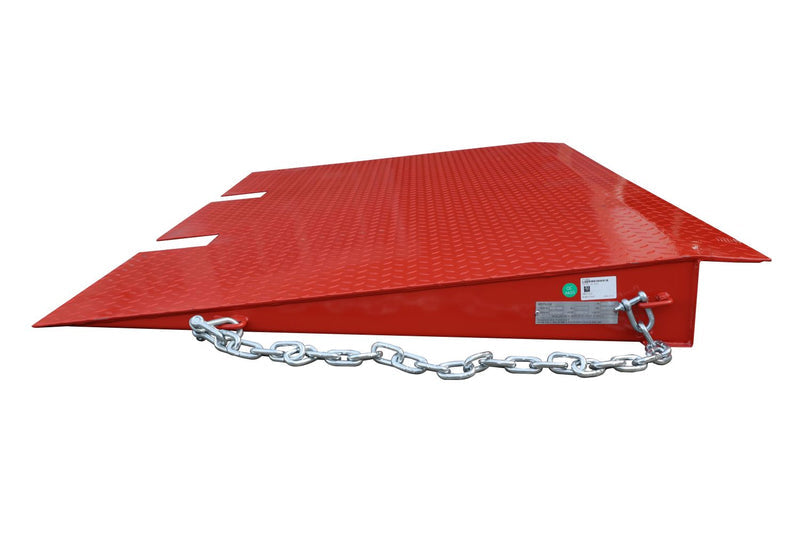

Chain & D-Shackle Included — Ramp Secured to Container During Loading

Each F-CRN6 is supplied complete with a chain and D-shackle for securing the ramp to the container during loading operations, preventing ramp movement and ensuring operator safety throughout the loading and unloading cycle. The chain secures the ramp lip to the container floor anchor point or door frame, holding the ramp in position even if the forklift or pallet truck nudges it during approach.

F-CRN6 vs F-CRL6 — Compact Single-Piece vs Long Flat-Top, Choose by Operation

Forklift & Pallet Truck Compatible — Mixed Fleet Operations

The F-CRN6 is designed for compatibility with both standard forklifts and pallet trucks — a critical feature for facilities where pallet trucks handle last-mile movement inside containers while forklifts handle yard positioning. The 1,250mm length and 2,200mm width provide adequate approach length for pallet truck operators to build momentum and clear the ramp threshold without stalling.

Compact & Lightweight — 176kg, Easy Forklift Repositioning

At 176kg — half the weight of the F-CRL6 (356kg) — the F-CRN6 is easier to reposition between containers and requires less forklift capacity for safe movement. The compact 1,250mm length also significantly reduces storage footprint when the ramp is not in use — important in space-constrained warehouse environments.

Applications

• Shipping container loading/unloading — 20ft and 40ft containers, ground-level yard
• Curtain-sider trailers — side-access loading, chain-secured stability
• Flat-bed trailers — ground-level, no fixed dock required
• Mixed forklift & pallet truck operations — single ramp, both equipment types
• Space-constrained warehouses — compact footprint, easy storage
• High-turnover logistics hubs — fast repositioning, chain securing between containers

Key Features

• 6,000kg SWL — forklift and pallet truck rated
• 1,250mm compact length | 2,200mm width — same width as F-CRL6
• One-piece welded steel — no joints, no component separation, minimal maintenance
• Chain & D-shackle included — ramp secured to container throughout loading cycle
• Forklift & pallet truck compatible — mixed fleet operations
• 5mm high-strength steel plate — heavy-duty, high-cycle durability
• 176kg — half the weight of F-CRL6, easy repositioning

Specifications

Technical Drawing
