LANDYINDUS Forklift Container Loading Ramp | 6,000kg SWL | 2,400mm Length | 1,500mm Flat Top Platform | 5mm Steel | Side Fork Pockets — Forklift Repositionable | Shipping Container, Curtain-Sider & Flatbed | F-CRL6

LANDYINDUS F-CRL6 Forklift Container Loading Ramp | 6,000kg SWL | 2,400mm Total Length | 1,500mm Flat Top Platform — Level Working Surface at Container Entrance | 5mm High-Strength Steel | Side Fork Pockets — Forklift Repositionable | Shipping Container, Curtain-Sider & Flatbed Trailer

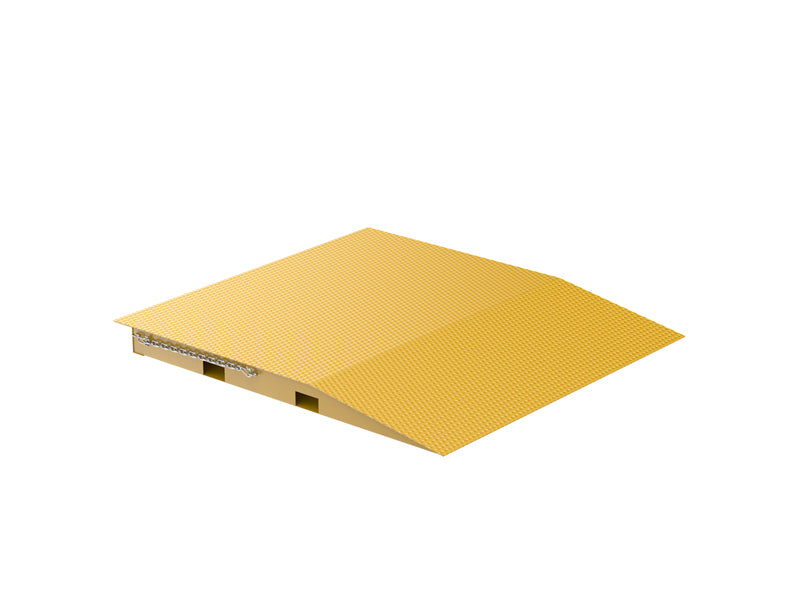

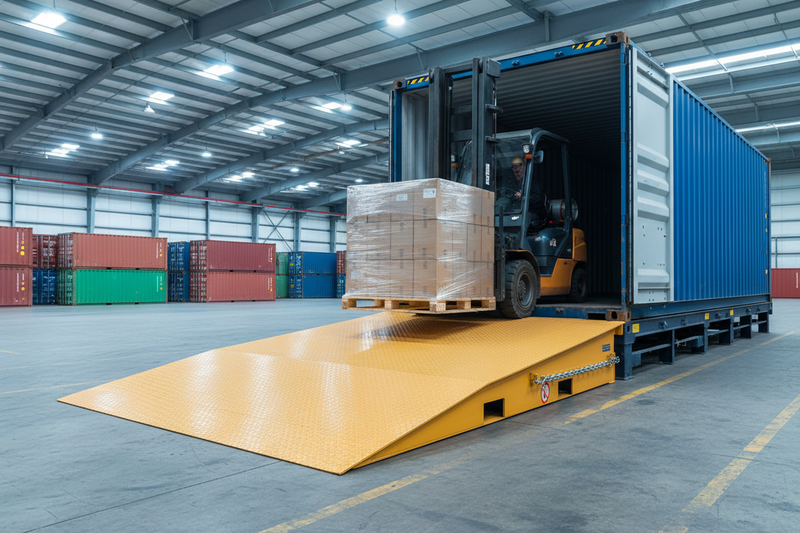

The LANDYINDUS F-CRL6 is a heavy-duty ground-level container loading ramp designed for safe and efficient forklift loading and unloading of shipping containers, curtain-siders, and flat-bed trailers in warehouses, logistics hubs, distribution centres, and freight terminals. With a 6,000kg SWL and an overall length of 2,400mm, this ramp provides a stable, low-gradient approach that allows forklifts to enter and exit containers smoothly — reducing the risk of load instability and equipment damage during the loading cycle.

1,500mm Flat Top Platform — Level Working Surface at Container Entrance, Maximum Fill Rate

A key feature of the F-CRL6 is its 1,500mm flat top section, which provides a level working platform at the container entrance. This allows operators to easily manoeuvre and position the last two to four pallets inside the container without the ramp gradient interfering with load placement — a critical advantage in maximising container fill rates and reducing double-handling on busy loading docks.

Without a flat top section, the ramp gradient extends to the container door threshold, making it difficult to position the final pallets precisely — operators must account for the gradient when setting down loads, often resulting in misaligned pallets, wasted container space, and additional repositioning cycles. The 1,500mm flat platform eliminates this problem entirely.

Side Fork Pockets — Forklift Repositionable, No Manual Handling

Integrated side fork pockets allow the ramp to be quickly repositioned between containers using a forklift, eliminating the need for manual handling and significantly reducing changeover time between loading operations. At 356kg, manual repositioning of the F-CRL6 is not practical — the side fork pockets are an essential operational feature, not an accessory.

Container Loading Ramp vs Loading Dock Leveller — Ground Level vs Fixed Dock

5mm High-Strength Steel Plate — Structural Rigidity for Repeated Heavy-Duty Forklift Use

Built from 5mm high-strength steel plate, the F-CRL6 delivers the structural rigidity and impact resistance required for repeated heavy-duty forklift use at 6,000kg SWL. The 2,200mm ramp width accommodates standard forklift widths with clearance on both sides for safe, straight-line approach and exit.

Applications

• Shipping container loading/unloading — 20ft and 40ft containers, ground-level yard operations
• Curtain-sider trailers — side-access trailer loading, flexible yard positioning
• Flat-bed trailers — ground-level approach, no fixed dock required
• Warehouses without loading docks — portable ramp solution for any bay
• Distribution centres & freight terminals — high-cycle container turnaround
• Temporary or seasonal operations — portable, no installation required

Key Features

• 6,000kg SWL — fully loaded forklift with pallet
• 2,400mm total length | 1,500mm flat top platform — level working surface at container entrance
• 2,200mm width — standard forklift width with side clearance
• 5mm high-strength steel plate — heavy-duty, high-cycle structural integrity
• Side fork pockets (165×85mm, 685mm centres) — forklift repositionable, no manual handling
• 356kg | ground level — no fixed installation required

Specifications

Technical Drawing
