LANDYINDUS Forklift Container Loading Ramp | 6,500kg SWL | 2,000mm | Self-Leveling Lip — Compensates Uneven Ground | 6mm Steel | Forklift & Pallet Truck | Shipping Container, Curtain-Sider & Flatbed | F-CRN65

LANDYINDUS F-CRN65 Forklift Container Loading Ramp | 6,500kg SWL | 2,000mm Length | Self-Leveling Lip — Automatically Compensates Uneven Ground | 6mm Steel | Forklift & Pallet Truck | Shipping Container, Curtain-Sider & Flatbed

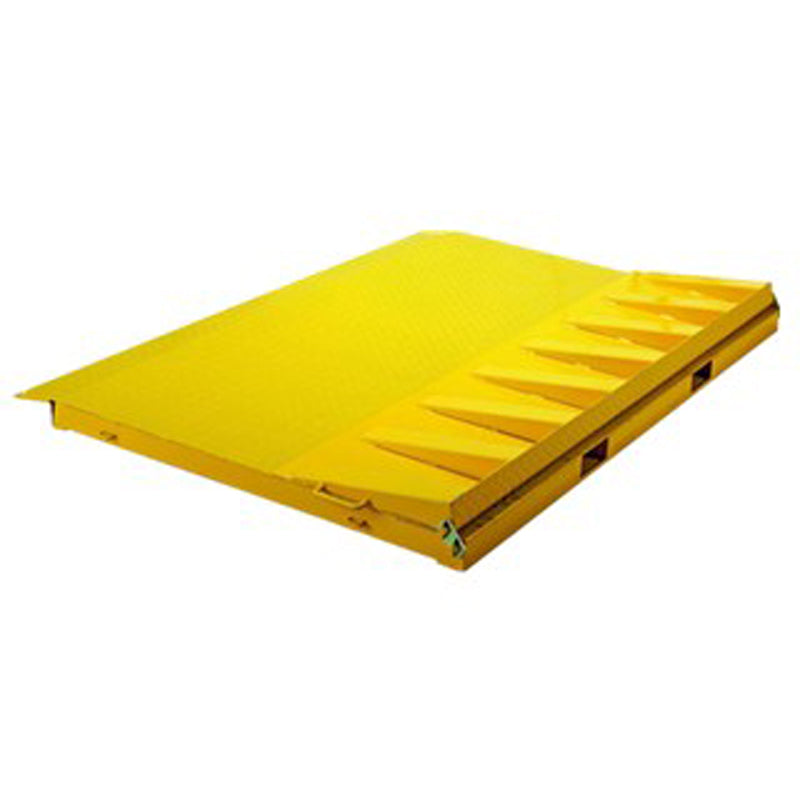

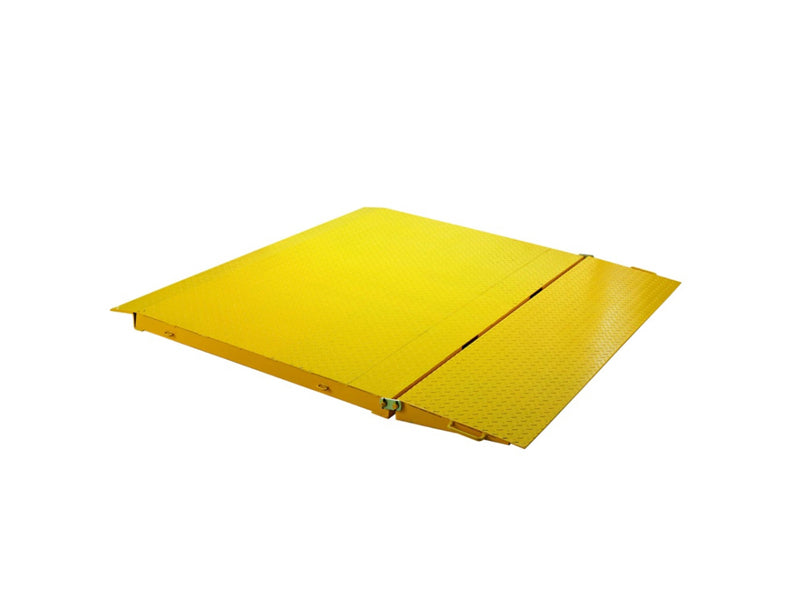

The LANDYINDUS F-CRN65 is a heavy-duty forklift container loading ramp designed for safe, efficient bridging from ground level into standard shipping containers, curtain-siders, and flat-bed trailers in warehouses, distribution centres, logistics hubs, and freight terminals. With a 6,500kg SWL and 2,000mm ramp length, the F-CRN65 provides a stable, low-gradient approach for both forklifts and pallet trucks — maximising load throughput and reducing cycle times on busy loading docks.

Self-Leveling Lip — Automatically Compensates Uneven Ground, Full 6,500kg Capacity Maintained

The standout feature of the F-CRN65 is its self-leveling lip, which automatically adjusts to compensate for slightly uneven ground surfaces between the container floor and the ramp. This ensures the full 6,500kg load capacity is maintained even when the container is not perfectly level — a critical advantage in real-world logistics environments where ground conditions are rarely ideal.

In practice, containers parked on yard surfaces are frequently not perfectly level — slight cross-falls, pot-holes, uneven compaction, or container suspension differences mean the container floor and the ramp lip rarely meet at exactly the same height. With a fixed-lip ramp, this creates a gap or step at the contact point, concentrating load at a single point and reducing effective capacity. The F-CRN65 self-leveling lip pivots to maintain flush contact across the full width of the container threshold, distributing the load evenly and maintaining rated capacity regardless of minor ground variation.

Complete Container Ramp Series — Choose by Container Type & Ground Conditions

6mm Steel Plate | 6,500kg SWL — Highest Capacity & Thickest Plate in the Series

The F-CRN65 uses a 6mm main plate — 1mm thicker than the 5mm plate on F-CRL6, F-CRN6, and F-CRN6RR — matched to the higher 6,500kg SWL. The additional plate thickness provides greater bending resistance under concentrated point loads from forklift tyres and pallet truck castors, ensuring long-term structural integrity at maximum rated capacity.

2,000mm Length | Forklift & Pallet Truck Compatible

The 2,000mm ramp length provides a moderate approach gradient suitable for both forklifts and pallet trucks, bridging the gap between the compact F-CRN6 (1,250mm) and the full-length F-CRL6 (2,400mm). The 2,200mm width is consistent across the entire container ramp series, ensuring compatibility with standard container door openings and standard forklift widths.

Applications

• Yards with uneven surfaces — self-leveling lip maintains rated capacity on imperfect ground
• High-SWL operations — heaviest loads in the container ramp series at 6,500kg
• Shipping container loading/unloading — 20ft and 40ft dry freight containers
• Curtain-sider trailers — flexible ground-level approach
• Flat-bed trailers — no fixed dock required
• Mixed forklift & pallet truck operations — compatible with both equipment types

Key Features

• Self-leveling lip — auto-compensates uneven ground, full capacity maintained
• 6,500kg SWL — highest in the container ramp series
• 2,000mm length | 2,200mm width — forklift and pallet truck compatible
• 6mm high-strength steel plate — thickest in the series, matched to highest SWL
• 80mm lip height — standard dry freight container floor height
• 336kg — forklift repositionable

Specifications

Technical Drawing
