LANDYINDUS F-DB-M-12 Forklift Dump Bucket | 500kg SWL | 0.22m³ | Mechanical Lever Dump — No Hydraulic Connection Required | Operator Never Leaves Cab | Galvanized Finish | 5mm Steel Plate | Slip-On | Gravel, Sand, Grain, Coal & Loose Bulk Materials

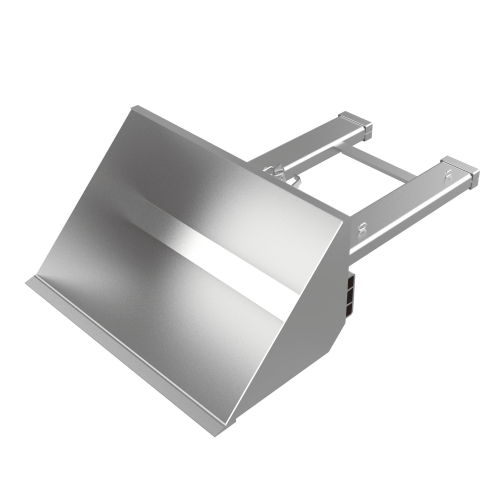

The LANDYINDUS F-DB-M-12 Forklift Dump Bucket is a heavy-duty attachment designed for fast, efficient removal of loose bulk materials from warehouse floors, construction sites, and industrial yards — with no hydraulic connection required. Slip the bucket onto your existing forklift forks and secure it in place for immediate use — one of the quickest-to-deploy forklift bucket attachments available.
Mechanical Lever Dump — No Hydraulics, Tip from the Cab
The mechanical lever dumping mechanism is operated directly from the driver’s seat, keeping the operator safely in position throughout the entire loading and tipping cycle — no need to exit the cab. Unlike hydraulic dump buckets that require an auxiliary hydraulic circuit, the F-DB-M-12 requires no hydraulic connection whatsoever — making it compatible with any standard forklift regardless of auxiliary hydraulic availability.
Forklift Dump Bucket vs Standard Slip-On Bucket — Dump Mechanism Makes the Difference
| Feature | F-CD Series Slip-On Bucket | F-DB-M-12 Dump Bucket (This) |
|---|---|---|
| Dump mechanism | None — tilt forklift mast to tip | Mechanical lever — tip without mast tilt |
| Hydraulics required | No | No — mechanical lever only |
| Operator leaves cab | No | No — lever from seat |
| Tip precision | Mast-angle dependent | Controlled — lever-activated pivot |
| SWL | 3,000–4,000kg | 500kg |
| Volume | 0.76–0.98m³ | 0.22m³ |
| Finish | Steel | Galvanized — corrosion-resistant |
| Best for | High-volume heavy bulk material | Precise tipping, any forklift, corrosive environments |
Galvanized Finish — Superior Corrosion Resistance for Outdoor & Harsh Environments
Finished with a galvanized coating for superior corrosion resistance, the F-DB-M-12 is built to withstand harsh outdoor and indoor environments — delivering long-term durability with minimal maintenance. Ideal for environments with frequent water exposure, wet materials (wet sand, grain, coal), and outdoor storage between uses.
500kg SWL | 0.22m³ — Right-Sized for Precision Material Handling
The 500kg SWL and 0.22m³ capacity make the F-DB-M-12 ideal for handling gravel, grain, coal, sand, and other loose materials in a single efficient pass. The smaller capacity relative to the F-CD series is matched to lighter-duty forklifts and situations requiring more controlled, precise material placement rather than high-volume bulk transfer.
Applications
- Warehouse floors — loose material cleanup and removal
- Construction sites — gravel, sand, rubble spot handling
- Agricultural operations — grain, feed, loose agricultural material
- Industrial yards — coal, aggregate, loose industrial material
- Any forklift without auxiliary hydraulics — mechanical lever, no circuit needed
Key Features
- Mechanical lever dump — no hydraulic connection, any standard forklift
- Operator never leaves cab — lever-activated tip from driver’s seat
- 500kg SWL | 0.22m³ — gravel, grain, coal, sand, loose materials
- Galvanized finish — outdoor, wet & corrosive environment durability
- 5mm high-strength steel plate — structural integrity under heavy-duty use

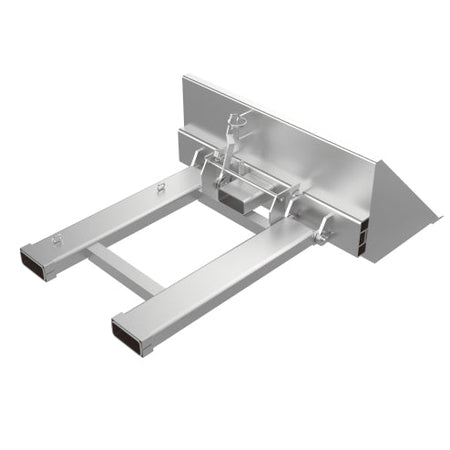

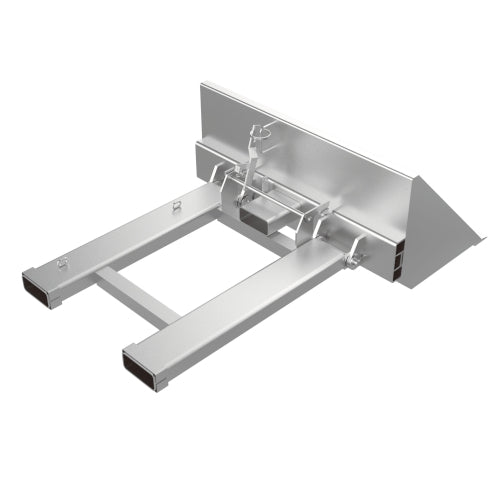

- Slip-on fork pockets (165×65mm, 635mm centres) — installs in minutes
- 183kg | 1,200×670×596mm
Technical Drawing:
Specifications
| Model | SWL (kg) | Dimensions W×D×H (mm) | Plate (mm) | Fork Pocket (mm) | Centres (mm) | Volume (m³) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| F-DB-M-12 | 500 | 1,200×670×596 | 5 | 165×65 | 635 | 0.22 | 183 |
