LANDYINDUS Forklift Grapple Bucket | 3,000kg SWL | 3 & 4 Claw | Slip-On Design | 3–3.5T Forklifts | F-ZD30 Series

LANDYINDUS Forklift Grapple Bucket | 3,000kg SWL | 3-Claw & 4-Claw Configurations | Slip-On Installation | High-Strength Steel | 3–3.5T Forklifts

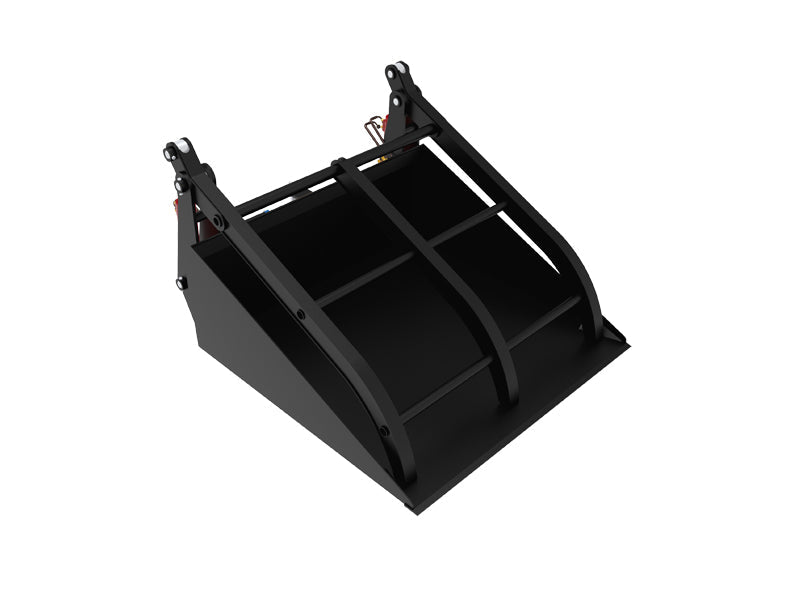

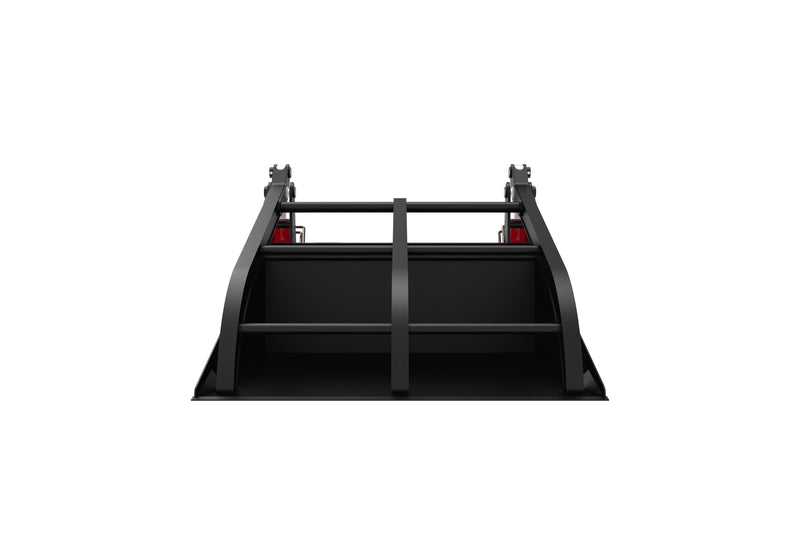

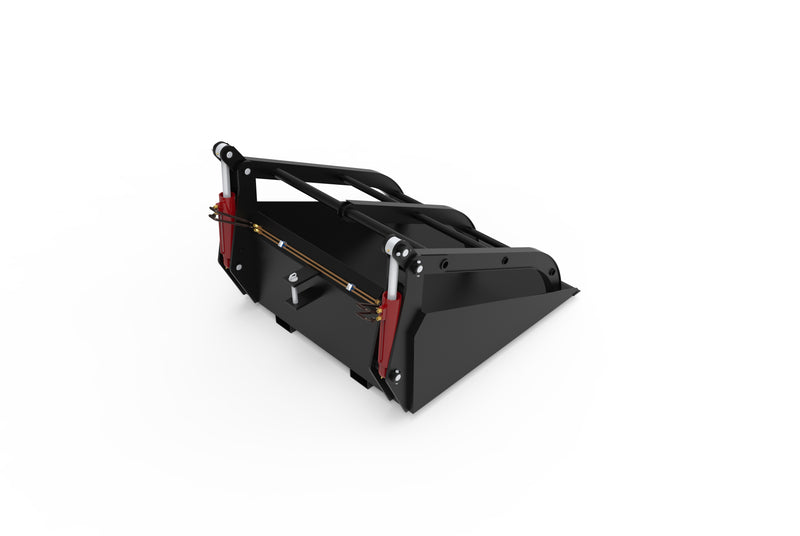

The LANDYINDUS Forklift Grapple Bucket Attachment is a professional-grade hydraulic clamp built for heavy-duty bulk cargo handling in warehousing, construction, mining, and logistics environments. Engineered from high-strength steel plates and rated at a safe working load of 3,000 kg, this attachment delivers the structural rigidity and clamping reliability that industrial operations demand — shift after shift, load after load.

Slip-On Installation — Plug-and-Play Versatility

Featuring a fork slip-on design secured by fixed locking bolts, the grapple bucket installs directly onto standard forklift forks without welding, cutting, or permanent modification to the carriage. The 145×60mm fork pockets with 715mm centres make it universally compatible with most 3–3.5T counterbalance forklifts.

This quick-mount system dramatically reduces downtime between attachment changes, making it an ideal hydraulic forklift attachment for operations that require flexible, multi-task equipment deployment across different cargo types and work zones.

Hydraulic Clamping — High-Strength Steel Jaws

Powered by the forklift's hydraulic system at 16 MPa operating pressure and 60 LPM flow rate, the hydraulic grapple bucket delivers consistent, adjustable clamping force across a massive opening range of 0 to 2,356mm.

The 8mm high-strength steel claw arms press firmly against cargo surfaces from above, locking the material into the bucket. This prevents load shift, spill, or drop during lifting, travel, and placement — ensuring safe, stable transshipment of loose or irregular cargo even on uneven site terrain or in high-throughput environments.

3-Claw vs 4-Claw Configurations — 1,400mm to 1,800mm Widths

Available in 3-claw and 4-claw configurations across three standard bucket widths, allowing you to match the attachment to your specific cargo type:

• 3-Claw Models (F-ZD30-...-3): Lighter overall weight. Ideal for gripping large, bulky items (e.g., branches, large scrap pieces, compacted bales) where a wider gap between claws is acceptable.
• 4-Claw Models (F-ZD30-...-4): Provides denser claw coverage over the bucket. The preferred choice for handling looser, finer materials (e.g., loose agricultural feed, green waste, loose recycling debris) where material could slip between widely spaced claws.

Model Specifications (Suit 3–3.5T Forklifts)

All models feature: 145×60mm fork pockets | 715mm pocket centres | 8mm main plate thickness | 16 MPa / 60 LPM hydraulic parameters.

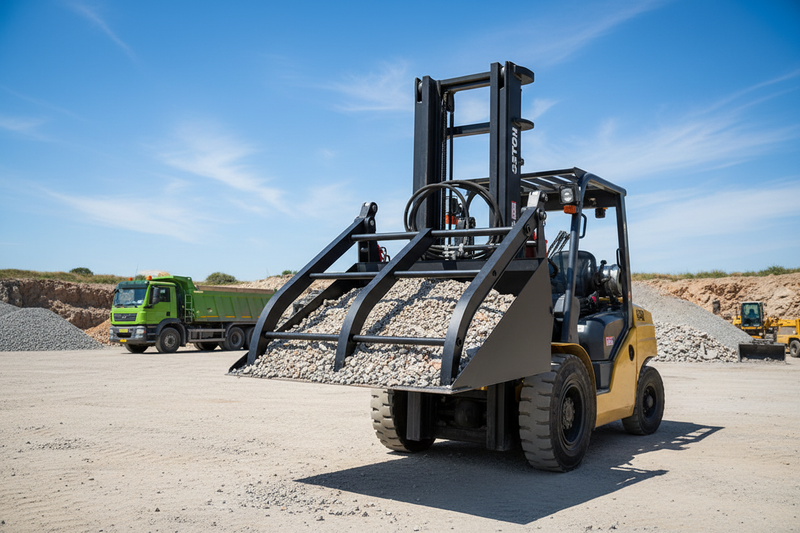

Applications

• Logistics & Warehousing — handling bagged goods and irregular pallets
• Construction & Demolition — scooping and grabbing mixed construction debris
• Agriculture & Landscaping — moving loose aggregates, mulch, and green waste
• Recycling Facilities — sorting and transporting scrap metal and municipal waste

Key Features

• 3,000kg SWL capacity — heavy-duty bulk handling
• Slip-on design with locking bolts — no welding required
• 0 to 2,356mm hydraulic opening range
• 8mm high-strength steel claws — presses and secures cargo during transit
• Multiple widths (1.4m, 1.6m, 1.8m) and claw configurations (3 or 4)
• Requires 1 additional hydraulic circuit
• 530kg to 640kg attachment weight

Technical Drawing
