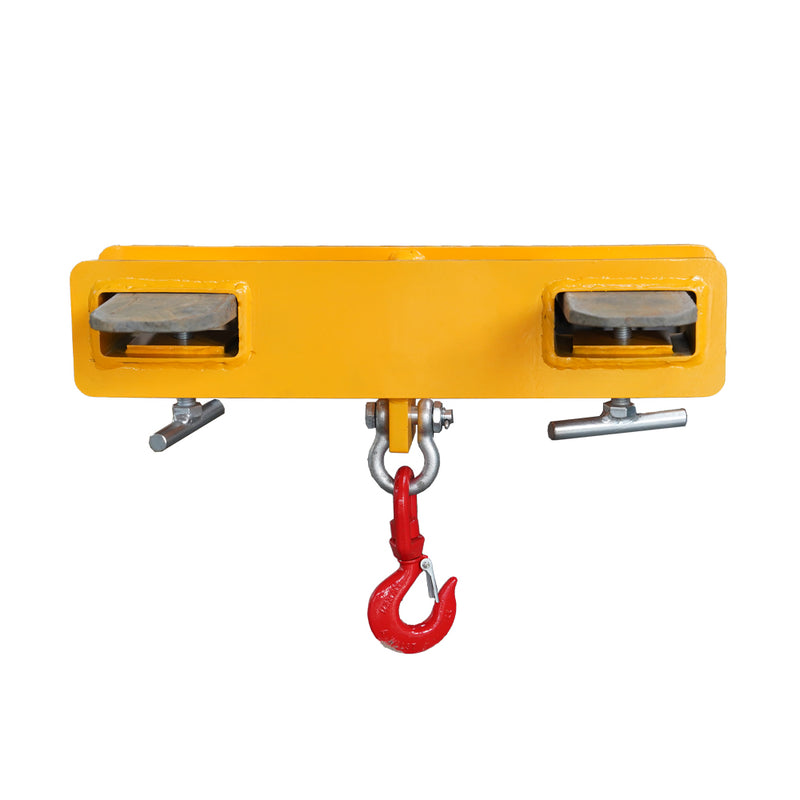

LANDYINDUS Forklift Hoist Hook Attachment | 2.0T – 14.5T SWL | Heavy Duty Swivel Hook
The LANDYINDUS Forklift Hoist Hook Attachment series is engineered to instantly transform your standard forklift into a highly mobile, heavy-duty crane.

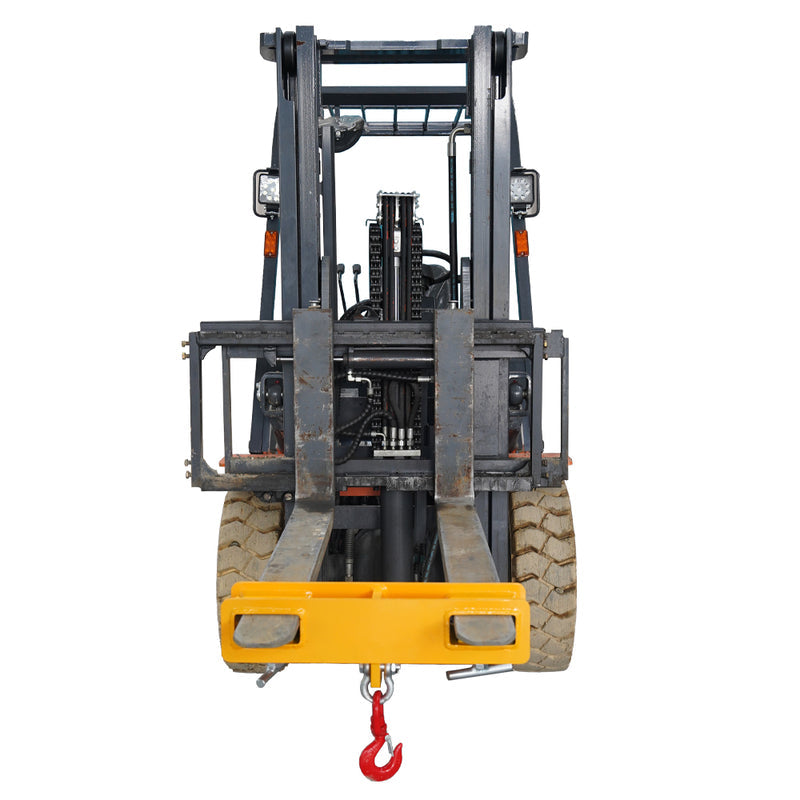

Designed for absolute simplicity and ultimate strength, these slip-on hoist hooks slide directly over both forklift tines, allowing operators to safely lift, transport, and accurately position heavy suspended loads without the need for complex jib booms or dedicated overhead crane systems.
Massive Capacity Range: 2.0T to 14.5T
Available in a comprehensive range of capacities from 2,000 kg up to a massive 14,500 kg (14.5 Tonnes), this series caters to everything from light warehouse duties to extreme heavy-industrial, port, and mining applications.
By placing the lifting point closer to the forklift carriage (compared to long jib booms), these hoist hooks preserve the maximum possible lifting capacity of your host machine while eliminating the severe leverage constraints associated with extended boom attachments.
Premium Safety Swivel Hook
Every model in the series is equipped with a premium, heavy-duty safety swivel hook. The swivel mechanism allows suspended loads to rotate freely during lifting and transport. This critical feature prevents dangerous chain or sling twist, eliminating rotational forces that can cause loads to spin out of control during complex overhead lifts.
Fast, Secure Slip-On Installation
Installation takes seconds and requires no tools. The attachment slides over the forklift tines and is locked securely into position using heavy-duty T-screws (locking bolts) that clamp down firmly against the forks. This rigid connection prevents any forward slip or lateral movement during dynamic load handling or sudden braking.
Key Features
- Massive capacity range: 2.0 Tonne to 14.5 Tonne Safe Working Load (SWL)
- Transforms a forklift into a mobile crane instantly
- Compact design maximises forklift lifting capacity
- Equipped with a heavy-duty safety swivel hook to prevent load spin
- Tool-free slip-on installation secured by heavy-duty T-screws
- Durable industrial-grade steel construction
Specifications
| Model | SWL (kg) | Dimensions L×W×H (mm) | Fork Pocket (mm) | Pocket Centres (mm) | Weight (kg) |
|---|---|---|---|---|---|
| F-FSCH20 | 2000 | 450×150×185 | 140×65 | 250 | 14 |
| F-FSCH25 | 2500 | 600×150×185 | 140×65 | 250 | 17 |
| F-FSCH30 | 3000 | 600×150×185 | 140×65 | 250 | 19 |
| F-FSCH40 | 4000 | 600×150×185 | 140×65 | 250 | 20 |
| F-FSCH50 | 5000 | 700×150×210 | 180×65 | 250 | 28 |
| F-FSCH80 | 8000 | 700×150×210 | 180×65 | 250 | 38 |
| F-FSCH100 | 10000 | 700×150×210 | 180×65 | 250 | 42 |
| F-FSCH145 | 14500 | 800×200×230 | 230×90 | 250 | 65 |
Technical Drawing
1. T-Screw Locking Requirement: The heavy-duty T-screws MUST be firmly tightened against the forklift tines before any lifting operation commences. Operating the hoist hook without these locked is strictly prohibited.
2. Pocket Size Verification: Verify your forklift tines will fit within the pockets specified for your chosen model. Note that larger capacity models (5T and above) require significantly larger fork pockets (up to 230×90mm for the 14.5T model).
3. Host Machine Capacity: Ensure your forklift is rated to handle the SWL of the attachment you are purchasing.
